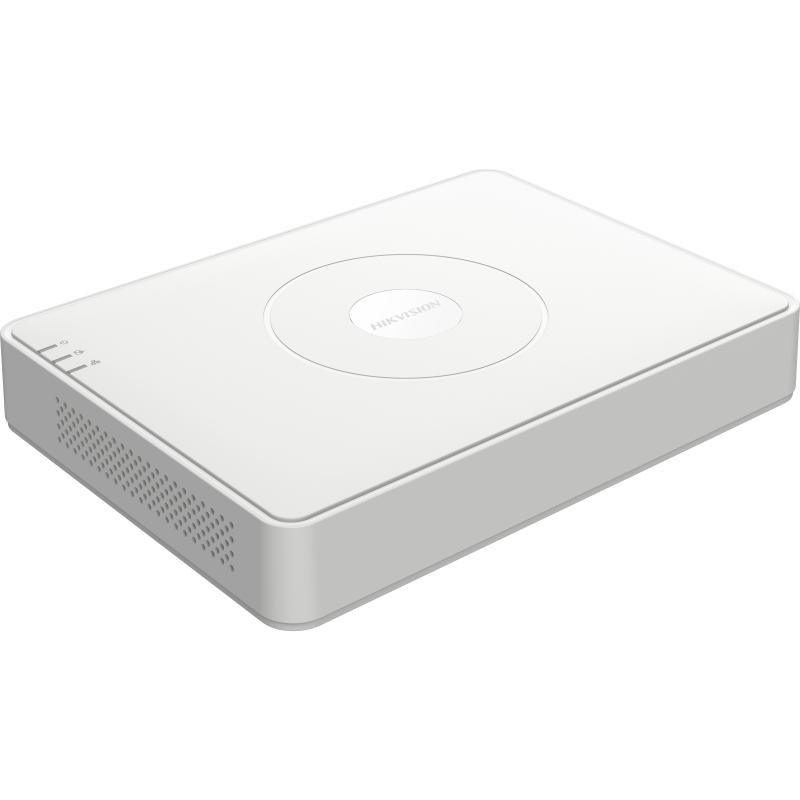

Hikvision 16-ch 1080p Lite Mini 1U H.265 DVR- DS-7116HGHI-M1/T

Hikvision DS-7116HGHI-M1/T 16-Channel 1080p Lite Mini 1U H.265 DVR is a powerful and scalable surveillance recording solution designed for medium to large CCTV installations. Supporting up to 16 analog cameras with additional IP channel expansion, this DVR provides flexible hybrid compatibility across HDTVI, AHD, CVI, CVBS, and IP systems. It delivers efficient 1080p Lite recording across all channels while leveraging advanced H.265+ compression to reduce bandwidth and storage consumption. Equipped with Motion Detection 2.0 featuring human and vehicle classification, along with remote access via Hik-Connect, this DVR ensures intelligent, reliable, and cost-effective security management for businesses, institutions, and residential properties.

Product Features

16-Channel Hybrid Video Input

Supports 16 analog channels with the ability to expand up to 18 channels using IP cameras, enabling flexible system scaling and hybrid deployment.

1080p Lite Recording on All Channels

Provides enhanced image quality using 1080p Lite encoding, delivering near Full HD clarity while optimizing storage usage.

H.265+ Advanced Compression

Improves encoding efficiency and significantly reduces storage and bandwidth requirements without compromising video quality.

Motion Detection 2.0 with Human and Vehicle Classification

Deep learning-based analytics accurately distinguish humans and vehicles, reducing false alarms and improving security response.

Multi-Format Camera Compatibility

Compatible with HDTVI, AHD, HDCVI, CVBS, and IP cameras, making it ideal for both upgrades and new CCTV installations.

HDMI and VGA Simultaneous Output

Supports dual video output with resolutions up to 1080p for flexible monitoring on multiple displays.

Audio Over Coaxial Cable

Allows audio transmission via coaxial cable and supports two-way audio communication for enhanced surveillance functionality.

16-Channel Synchronous Playback

Enables simultaneous playback across all channels, improving incident review and investigation efficiency.

Remote Access via Hik-Connect

Provides remote viewing, playback, and system management through mobile devices and web platforms.

Compact Mini 1U Design

Space-saving design ensures easy installation while maintaining reliable performance and efficient heat dissipation.

Product Specifications

• Video input: 16-channel analog (BNC), expandable to 18 channels with IP cameras
• IP camera support: Up to 5MP resolution
• Video compression: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
• Recording resolution: 1080p Lite, 720p Lite, WD1, 4CIF, VGA, CIF
• Frame rate: Up to 15 fps at 1080p Lite/720p
• Video output: HDMI and VGA (simultaneous, up to 1920 × 1080)
• Audio input: 1-channel RCA and 16-channel via coaxial cable
• Audio output: 1-channel RCA
• Two-way audio: Supported (shared input)
• Playback: 16-channel synchronous playback
• Storage: 1 SATA interface (up to 6TB–10TB depending on configuration)
• Network interface: 1 × RJ45 10/100 Mbps Ethernet
• Total bandwidth: Up to 96 Mbps
• USB ports: 2 × USB 2.0
• Remote access: Hik-Connect, DDNS, ONVIF support
• Power supply: 12 VDC, 2 A
• Power consumption: ≤ 7 W (without HDD)
• Operating temperature: -10°C to 55°C
• Dimensions: 285 × 210 × 48 mm
• Weight: ≤ 1.8 kg (without HDD)
