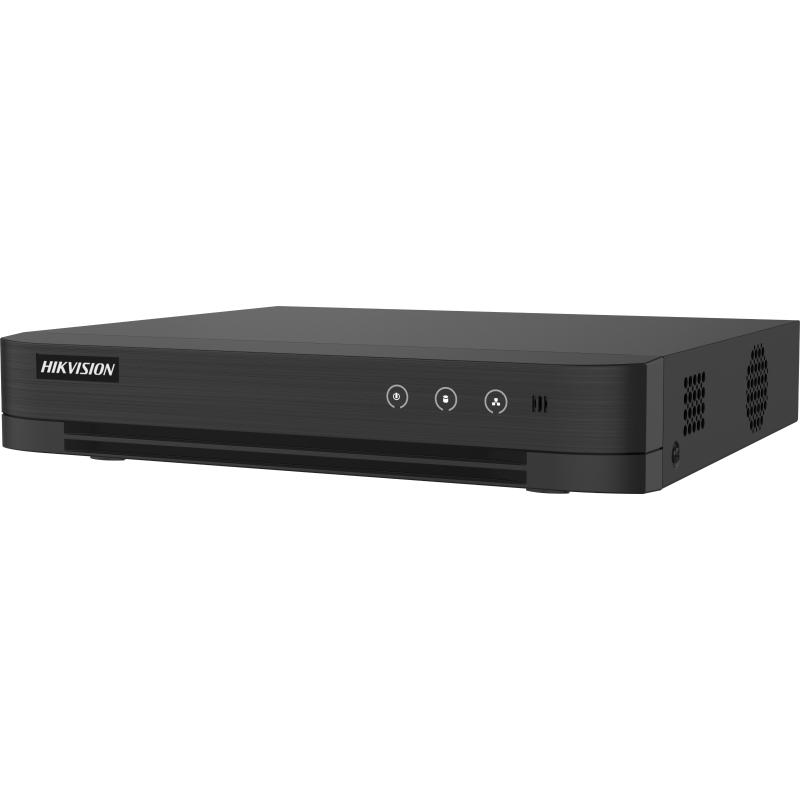

Hikvision 16-ch 1080P Lite 1U H.265 DVR- DS-7216HGHI-M1/T

Hikvision DS-7216HGHI-M1/T 16-Channel 1080p Lite 1U H.265 DVR is a robust and scalable digital video recorder engineered for medium to large security camera systems. Supporting up to 16 analog cameras with hybrid expansion to IP cameras, this DVR offers wide compatibility across HDTVI, AHD, CVI, CVBS, and IP formats. It delivers efficient 1080p Lite recording on all channels and leverages advanced H.265+ compression to reduce storage and bandwidth usage without sacrificing image quality. With intelligent Motion Detection 2.0, dual HDMI/VGA outputs, and remote access via Hik-Connect, this DVR ensures reliable, efficient, and easy‑to‑manage video surveillance for homes, businesses, and institutions.

Product Features

16-Channel Hybrid Video Input

Supports 16 analog BNC cameras with the ability to expand up to 18 channels using IP cameras, enabling scalable CCTV system setups.

1080p Lite Recording Across Channels

Delivers enhanced image clarity in 1080p Lite resolution, providing near Full‑HD quality while optimizing storage efficiency.

H.265+ Advanced Compression

Efficient video compression reduces bandwidth needs and storage space with maintained high video quality.

Motion Detection 2.0 with Human and Vehicle Classification

Uses deep learning‑based analytics to differentiate human and vehicle activity, minimizing false notifications.

Multi‑Format Camera Compatibility

Native support for HDTVI, AHD, CVI, CVBS, and IP cameras allows versatile system design and upgrades.

Dual HDMI and VGA Output

Offers simultaneous HDMI and VGA display at up to 1080p resolution for flexible monitoring configurations.

Audio Over Coaxial Cable

Supports audio transmission over coaxial wiring and one‑way audio output for integrated sound monitoring.

Remote Monitoring with Hik‑Connect

Enables live view, playback, and configuration via the Hik‑Connect mobile app or web client from anywhere.

Compact 1U Chassis Design

Space‑efficient 1U form factor supports easy rack‑mount or shelf installation with solid performance and heat management.

Product Specifications

• Video Input: 16 analog BNC channels
• Expandable Channels: Up to 18 with IP cameras
• Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
• Recording Resolution: 1080p Lite, 720p, WD1, 4CIF, VGA, CIF
• Frame Rate: Up to 15 fps at 1080p Lite
• Video Output: HDMI and VGA (simultaneous up to 1920 × 1080)
• Audio Input: 1 channel RCA + audio via coaxial
• Audio Output: 1 channel RCA
• Network Interface: 1 × RJ45 10/100 Mbps Ethernet
• Total Bandwidth: Up to 96 Mbps
• Storage: 2 × SATA interfaces (supports large HDD capacities)
• USB Ports: 2 × USB 2.0
• Remote Access: Hik‑Connect, DDNS, ONVIF
• Power Supply: 12 VDC
• Power Consumption: ≤ 18 W (without HDD)
• Operating Temperature: -10°C to 55°C
• Dimensions: 263 × 220 × 48 mm
• Weight: ≤ 2.2 kg (without HDD)
