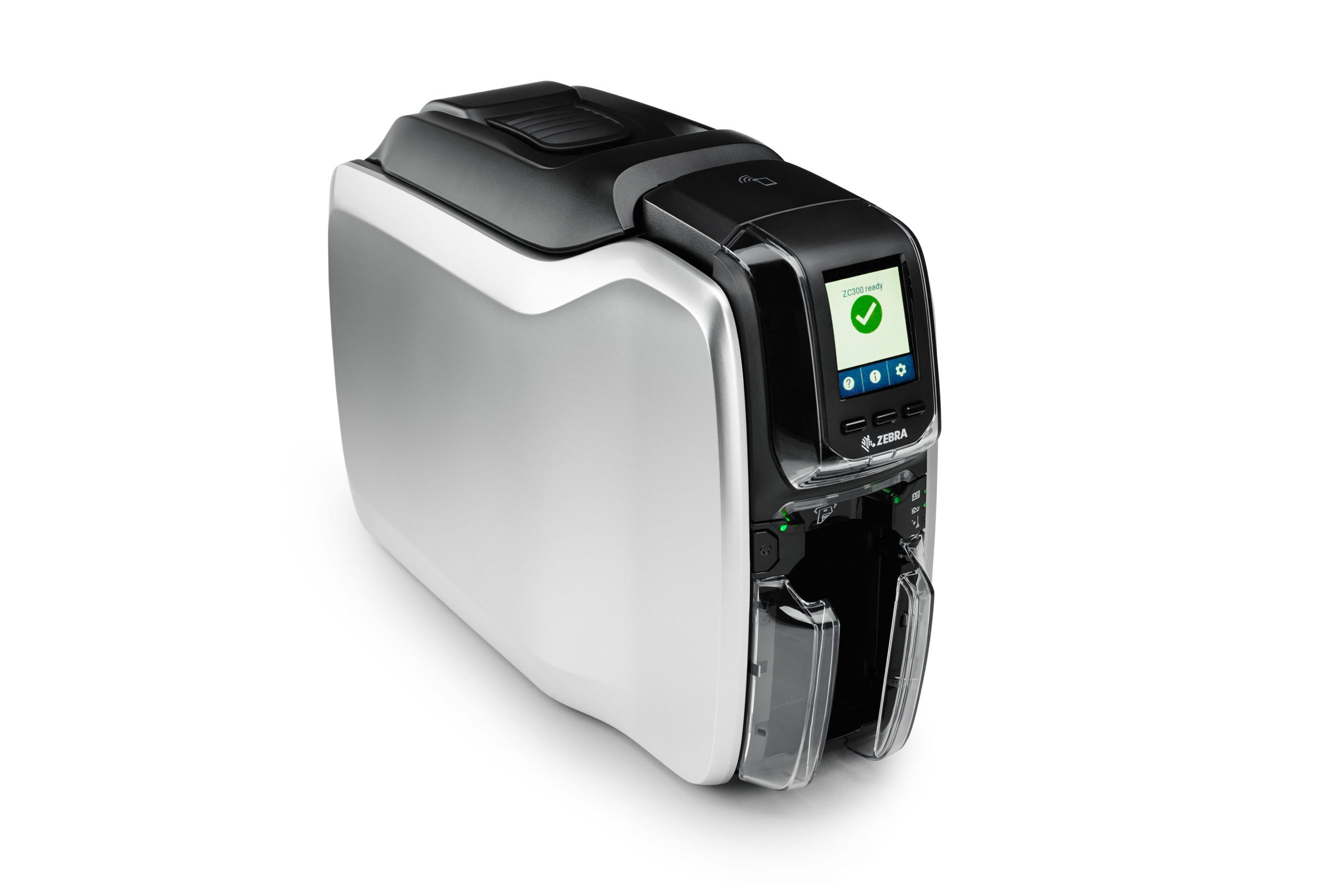

Zebra ZC300 Dual-Sided Card Printer (ZC32-000CQ00EM00)

Technical Specifications

• Print Technology: Dye-sublimation and thermal transfer
• Print Resolution: 300 x 300 dpi
• Print Speed:
  • Monochrome: Up to 900 cards/hour
  • Full Color (YMCKOK): Up to 200 cards/hour
  • Dual-sided Full Color (YMCKOK): Up to 140 cards/hour
• Card Types Supported: PVC, Composite PVC
• Card Size: CR-80 (85.6 mm x 54 mm)
• Card Thickness: 0.25 mm to 1.0 mm (10 mil to 40 mil)
• Input Hopper Capacity: 100 cards (30 mil)
• Output Hopper Capacity: 100 cards (30 mil)
• Connectivity:
  • USB 2.0
  • Ethernet (10/100 Mbps)
  • Wi-Fi 5 (802.11ac)
• Security Features:
  • AES encryption
  • Host authentication
  • Kensington lock slot
• Display: Graphical color LCD
• Memory: 2 GB Flash
• Dimensions: 157 mm (W) x 468 mm (D) x 258 mm (H)
• Weight: 4 kg
• Power: 90–264 V AC, 47–60 Hz
• Operating Temperature: 15°C to 35°C
• Operating Humidity: 20% to 80%
• Warranty: 1-year limited warranty

Key Features

• Dual-Sided Printing: Automatically prints on both sides of the card, ideal for ID badges, membership cards, and access control cards.
• High-Speed Printing: Achieves up to 200 full-color cards per hour, enhancing productivity in environments with high-volume printing needs.
• Versatile Connectivity: Offers USB, Ethernet, and Wi-Fi 5 (802.11ac) connectivity options, providing flexibility in various network configurations.
• Enhanced Security: Features AES encryption and host authentication to protect sensitive data during the printing process.
• User-Friendly Interface: Equipped with a graphical color LCD for easy operation and monitoring.
• Robust Build: Designed with a Kensington lock slot to deter theft and ensure physical security.

The Zebra ZC300 Dual-Sided Card Printer (ZC32-000CQ00EM00) offers high-speed, high-resolution printing with versatile connectivity options. Ideal for producing secure, full-color ID cards, it features automatic duplex printing, AES encryption, and a user-friendly interface
