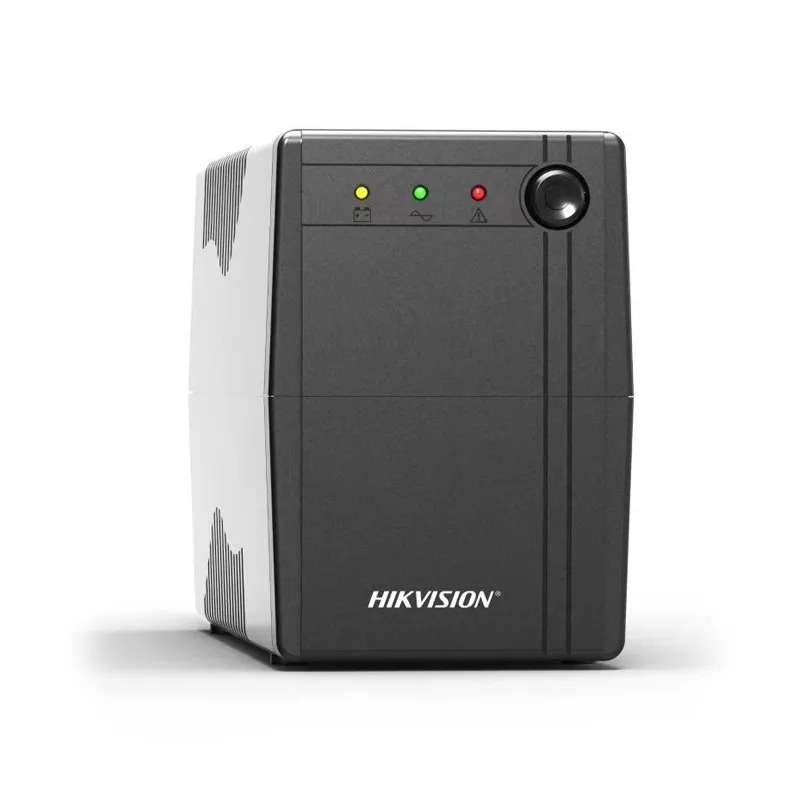

Hikvision DS-UPS600 UPS 600VA / 360W

Hikvision DS-UPS600 is a compact and reliable uninterruptible power supply (UPS) designed to provide continuous backup power and comprehensive protection for desktop computers, CCTV systems, networking devices, POS terminals, and other sensitive electronic equipment. With a power capacity of 600VA / 360W, built-in Automatic Voltage Regulation (AVR), and fast transfer time, this UPS safeguards connected devices against power outages, voltage fluctuations, surges, overloads, and short circuits. Its compact design, intelligent battery management, and LED status indicators make it an ideal power backup solution for home and small office environments.

Product Features

Reliable 600VA / 360W Power Backup

The DS-UPS600 delivers 600VA (360W) of backup power, providing sufficient runtime to safely save work, protect data, and properly shut down connected devices during unexpected power failures.

Built-in Automatic Voltage Regulation (AVR)

Integrated AVR automatically stabilizes fluctuating input voltage without switching to battery power, protecting connected equipment from voltage sags and surges while extending battery life.

Fast Transfer Time

With a transfer time of 10 ms or less, the UPS quickly switches to battery mode during power interruptions, ensuring uninterrupted operation of connected devices.

Comprehensive Power Protection

The UPS provides multiple protection mechanisms, including surge protection, overload protection, overcharge protection, discharge protection, and short circuit protection to safeguard valuable electronic equipment.

Intelligent LED Status Indicators

Easy-to-read LED indicators display operating mode, charging status, and overload conditions, allowing users to monitor the UPS at a glance. Audible alarms provide additional notifications for battery operation, low battery, overload, and system faults.

Wide Input Voltage Range

Supporting an input voltage range of 140V to 290V AC, the UPS operates reliably in areas with unstable mains power while minimizing unnecessary battery usage.

Maintenance-Free Battery

The built-in 12V 7Ah sealed lead-acid battery automatically recharges after power restoration and typically reaches 90% capacity within 4 to 6 hours.

Product Specifications

• Brand: Hikvision
• Model: DS-UPS600
• Product Type: Offline Uninterruptible Power Supply (UPS)
• UPS Capacity: 600VA / 360W
• Input Voltage Range: 140–290V AC
• Input Frequency: 50/60Hz (Self-Adaptive)
• Output Voltage Range: 210–235V AC
• Output Frequency: 50/60Hz ±0.5Hz
• Output Waveform: PWM
• Transfer Time: ≤10 ms
• Battery Type: 12V 7Ah Sealed Lead-Acid (SLA)
• Recharge Time: 4–6 hours to approximately 90% capacity
• Output Outlets: 2 Universal AC Outlets
• Automatic Voltage Regulation (AVR): Yes
• LED Indicators: AC Mode, Battery Mode, Overload Status
• Audible Alarms: Battery mode, low battery, overload, and fault notifications
• Protection Features: Surge protection, overload protection, overcharge protection, discharge protection, and short circuit protection
• Communication Port: None
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 30%–90% non-condensing
• Dimensions: 274 × 95 × 139 mm
• Weight: Approximately 4.2 kg
• Ideal Applications: Desktop PCs, CCTV DVRs/NVRs, routers, network switches, VoIP phones, POS systems, and other small office or home electronics.
