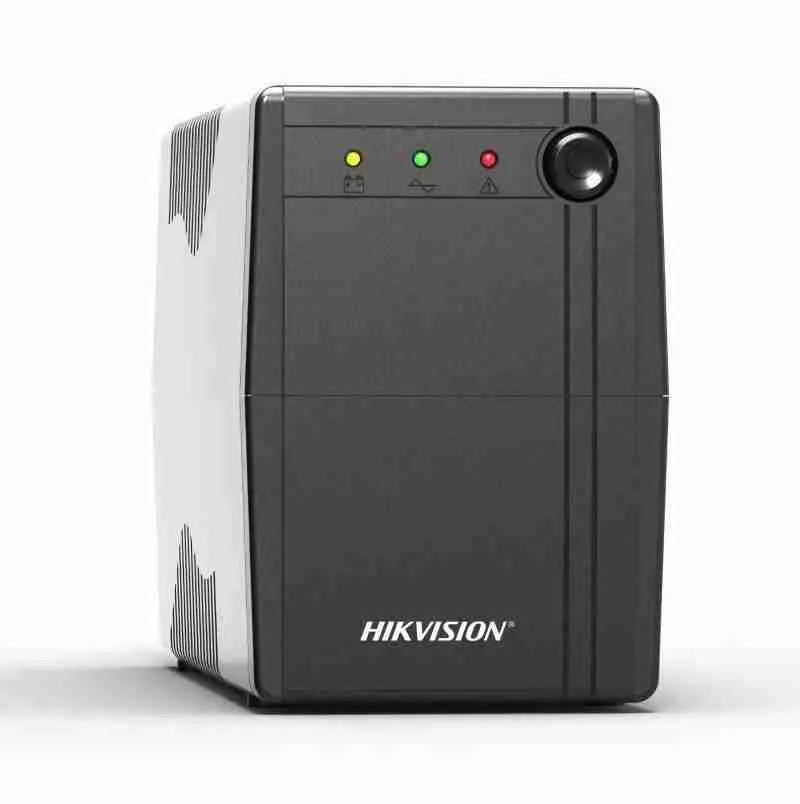

Hikvision – DS-UPS1000 UPS 1000VA / 600W

Hikvision DS-UPS1000 is a reliable uninterruptible power supply (UPS) designed to protect desktop computers, CCTV systems, networking equipment, POS terminals, and other critical electronics from power interruptions and voltage fluctuations. With a capacity of 1000VA / 600W, built-in Automatic Voltage Regulation (AVR), intelligent battery management, and fast transfer time, this UPS provides dependable backup power while safeguarding connected devices against surges, overloads, overcharging, and short circuits. Its compact design, LED status indicators, and maintenance-free battery make it an ideal power protection solution for homes, offices, and small businesses.

Product Features

Reliable 1000VA / 600W Backup Power

The DS-UPS1000 delivers 1000VA (600W) of backup power, allowing connected devices to continue operating during power outages and providing sufficient time to save data and safely shut down equipment.

Built-in Automatic Voltage Regulation (AVR)

Integrated AVR automatically stabilizes fluctuating input voltage without switching to battery mode, protecting sensitive electronics from under-voltage and over-voltage conditions while extending battery life.

Fast Transfer Time

With a transfer time of 10 milliseconds or less, the UPS quickly switches to battery operation during power failures, ensuring minimal interruption for connected devices.

Comprehensive Equipment Protection

The UPS features multiple protection mechanisms, including surge protection, overload protection, overcharge protection, discharge protection, and short-circuit protection to maximize the safety of connected equipment.

Intelligent LED Indicators and Audible Alarms

Front-panel LED indicators clearly display operating status, charging mode, and overload conditions, while audible alarms notify users of battery operation, low battery, overload, and system faults.

Wide Input Voltage Range

Supporting an input voltage range of 140V to 290V AC, the UPS performs reliably in areas with unstable mains power while reducing unnecessary battery usage.

Maintenance-Free Sealed Lead-Acid Battery

The built-in 12V 9Ah sealed lead-acid battery automatically recharges after power restoration, reaching approximately 90% capacity within 4 to 6 hours for dependable backup readiness.

Product Specifications

• Brand: Hikvision
• Model: DS-UPS1000
• Product Type: Offline Uninterruptible Power Supply (UPS)
• UPS Capacity: 1000VA / 600W
• Input Voltage Range: 140–290V AC
• Input Frequency: 50/60Hz (Self-Adaptive)
• Output Voltage Range: 210–235V AC
• Output Frequency: 50/60Hz ±0.5Hz
• Output Waveform: PWM (Simulated Sine Wave)
• Transfer Time: ≤10 ms
• Battery Type: 12V 9Ah Sealed Lead-Acid (SLA)
• Recharge Time: 4–6 hours to approximately 90% capacity
• Typical Backup Time:
  • Up to 60 minutes at 60W load
  • Up to 15 minutes at 150W load
  • Up to 2 minutes at 300W load
• Output Outlets: 2 Universal AC Outlets
• Automatic Voltage Regulation (AVR): Yes
• LED Indicators: AC Mode, Battery Mode, Charging Status, Overload Status
• Audible Alarms: Battery mode, low battery, overload, and fault notifications
• Protection Features: Surge protection, overload protection, overcharge protection, discharge protection, and short-circuit protection
• Communication Port: None
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 30%–90% non-condensing
• Dimensions: 274 × 95 × 139 mm
• Weight: Approximately 5.4 kg
• Ideal Applications: Desktop PCs, CCTV DVRs and NVRs, routers, network switches, VoIP phones, POS systems, and other office or home electronics.
