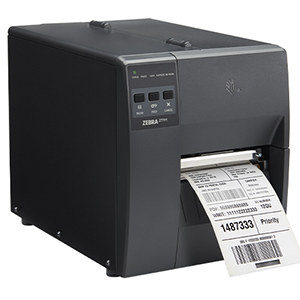

​ZEBRA ZT111 Barcode Label Printer Thermal Transfer

The Zebra ZT11142-T0E000FZ is an industrial thermal transfer label printer designed to deliver reliable performance for a variety of labeling applications. Below are its detailed specifications:​

Printing Specifications:

• Print Method: Thermal transfer, utilizing ribbons for durable label printing.​

• Print Resolution: 203 dpi (8 dots/mm), suitable for standard barcode and text printing.​

• Maximum Print Speed: Up to 10 inches per second (ips) or 254 mm per second, ensuring efficient label production.​

• Maximum Print Width: 4.09 inches (104 mm), accommodating a wide range of label sizes.​

Media Handling:

• Media Types: Compatible with continuous, die-cut, notch, and black mark labels.​

• Media Width: Supports labels ranging from 0.75 inches (19.4 mm) to 4.50 inches (114 mm) in width.​

• Media Roll Size: Can accommodate rolls up to 8.0 inches (203 mm) in outer diameter on a 3.0 inches (76 mm) core, or 6.0 inches (152 mm) on a 1.0 inch (25 mm) core.​

• Media Thickness: Handles media thicknesses from 0.003 inches (0.076 mm) to 0.010 inches (0.25 mm).

Ribbon Specifications:

• Ribbon Type: Thermal transfer ribbons, essential for durable label printing.​

• Ribbon Width: Compatible with ribbons ranging from 2 inches (51 mm) to 4.33 inches (110 mm) in width.​

• Ribbon Length: Standard ribbon length is 1,476 feet (450 meters).​

• Ribbon Core: Utilizes ribbons with a 1.0 inch (25.4 mm) core.​

Memory and Firmware:

• Memory:

  • 256 MB SDRAM.​

  • 256 MB on-board Flash memory, providing ample storage for fonts, graphics, and label formats.​

• Firmware Support: Includes ZPL and ZPL II (Zebra Programming Language) for advanced label formatting and printer control.​

Connectivity Options:

• Standard Interfaces:

  • USB 2.0.​

  • RS-232 Serial port.​

  • 10/100 Ethernet.​

  • USB Host.​

• Optional Connectivity: Bluetooth Low Energy (BTLE) for wireless communication and mobile device pairing.​

Physical Characteristics:

• Dimensions: 17 inches (432 mm) in length, 9.5 inches (241 mm) in width, and 11 inches (279 mm) in height.​

• Weight: Approximately 17 lbs (7.7 kg), indicating a robust and durable construction.​

Operating Conditions:

• Operating Temperature: Thermal transfer mode: 40°F to 105°F (5°C to 40°C); Direct thermal mode: 32°F to 105°F (0°C to 40°C).

• Storage Temperature: -40°F to 140°F (-40°C to 60°C).​

• Operating Humidity: 20% to 85% non-condensing.​

• Storage Humidity: 5% to 85% non-condensing.​

Additional Features:

• User Interface: Equipped with a simple three-button keypad and five status LEDs for intuitive operation and monitoring.​

• Media Sensors: Adjustable transmissive and reflective sensors for versatile media handling.​

• Energy Efficiency: ENERGY STAR® certified, reflecting a commitment to environmental sustainability.​

• Software Support: Compatible with ZebraDesigner Essentials, a free label design tool available from Zebra’s official website.​

The Zebra ZT11142-T0E000FZ combines essential features with durable construction, making it a suitable choice for businesses seeking a cost-effective industrial label printer without compromising on performance.
