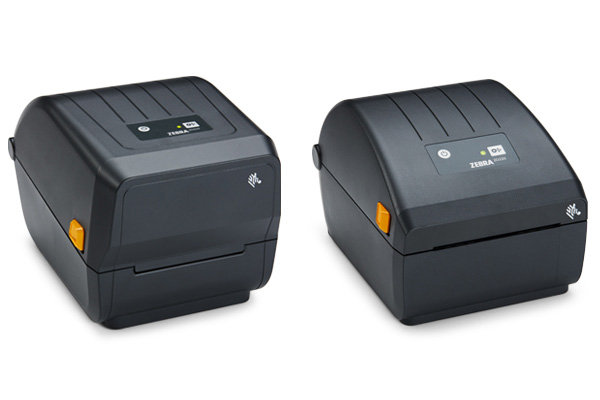

Zebra ZD220 label printer Direct thermal 203 x 203 DPI Wired

The Zebra ZD220 (model ZD22042-D0EG00EZ) is a reliable and cost-effective desktop label printer designed for various applications, including transportation, logistics, light manufacturing, retail, and healthcare. Below are its detailed specifications:​

Printing Specifications:

• Print Method: Direct Thermal​

• Resolution: 203 dpi (8 dots per mm)​

• Maximum Print Width: 4.09 inches (104 mm)​

• Maximum Print Speed: 4 inches per second (102 mm per second)​

• Maximum Label Length: 39 inches (991 mm) ​

Media Handling:

• Media Width: 1.00 inch (25.4 mm) to 4.4 inches (112 mm)​

• Media Roll Size: Maximum outer diameter of 5.00 inches (127 mm)​

• Core Inner Diameter: 0.5 inch (12.7 mm) and 1.0 inch (25.4 mm) standard; 1.5 inches (38.1 mm)​

• Media Thickness: 0.003 inch (0.08 mm) to 0.0075 inch (0.1905 mm)​

• Media Types: Roll-fed or fan-fold, die-cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands ​

Memory and Processing:

• Memory: 256 MB Flash; 128 MB SDRAM ​

Connectivity:

• Standard Interface: USB ​

Physical Characteristics:

• Dimensions: 8.6 inches (220 mm) L x 6.9 inches (176 mm) W x 5.9 inches (151 mm) H​

• Weight: 2.5 lbs (1.1 kg)

Environmental Conditions:

• Operating Temperature: 40°F to 105°F (4.4°C to 41°C)​

• Storage Temperature: -40°F to 140°F (-40°C to 60°C)​

• Operating Humidity: 10% to 90% non-condensing​

• Storage Humidity: 5% to 95% non-condensing ​

Power Supply:

• Electrical: Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz​

• Energy Efficiency: ENERGY STAR qualified ​

Firmware and Emulations:

• ZPL II​

• EPL 2​

• XML ​

Fonts and Graphics:

• 16 resident expandable ZPL II bitmap fonts​

• Two resident scalable ZPL fonts​

• Five resident expandable EPL2 fonts​

• Native open-type font support​

• Unicode compliant for multi-language, on-demand thermal printing ​

Barcode Symbologies Supported:

• 1D Barcodes: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code

• 2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec ​

The Zebra ZD220 is engineered for reliable operation and basic features at an affordable price, making it suitable for various industries requiring efficient label printing solutions.​
