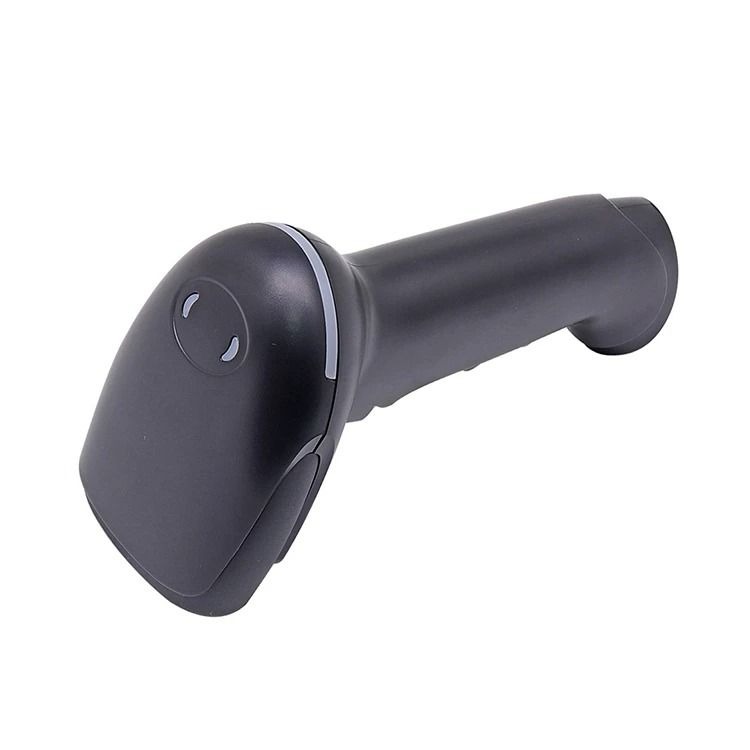

Micro Wireless Handheld 1D Scanner with Stand (OCBS W013)

Micro Wireless Handheld 1D Scanner with Stand (OCBS W013) is a reliable and efficient barcode scanner designed for retail, warehouse, and industrial applications. It offers high-speed scanning performance, wireless 2.4GHz connectivity, and a convenient stand for hands-free use. With a long transmission range, durable construction, and extended battery life, this scanner ensures fast and accurate barcode reading for improved productivity. Its plug-and-play functionality makes it ideal for POS systems, inventory management, and logistics operations.

Product Features

Wireless 2.4GHz Connectivity

The OCBS W013 supports wireless transmission up to 70 meters line-of-sight, providing flexibility and mobility in busy work environments without the hassle of cables.

Dual Connection Modes

Comes with both wireless and USB wired connectivity options, including a USB receiver for easy setup and reliable data transfer.

Fast and Accurate Scanning

Delivers up to 200 scans per second with a reading distance ranging from 10 mm to 600 mm, ensuring quick and precise barcode capture.

Built-In Memory for Offline Use

Equipped with 64K internal memory, capable of storing approximately 3,500 barcodes, making it suitable for offline data collection and batch uploads.

Long Battery Life

Powered by a 1500 mAh lithium-ion battery that provides up to 24 hours of continuous operation on a single charge.

Durable Design

Constructed with strong ABS, PVC, and PC materials, rated IP52 for dust and splash resistance, and drop-tested to 1.5 meters for enhanced durability.

Hands-Free Operation with Stand

Includes a sturdy stand for automatic scanning in presentation mode, ideal for retail checkouts and inventory stations.

Wide Compatibility

Compatible with Windows, Linux, Android, and macOS operating systems, making it easy to integrate with various POS and software platforms.

Product Specifications

• Model: OCBS W013
• Interface: USB and 2.4GHz wireless
• Wireless range: Up to 70 meters (line-of-sight)
• Battery: 3.7V, 1500 mAh lithium-ion
• Working time: Up to 24 hours per full charge
• Charging time: Approximately 6 to 7 hours
• Memory: 64K (stores approximately 3,500 barcodes)
• Scanning technology: 1D laser
• Scan speed: 200 scans per second
• Resolution: Minimum 4 mil (Code 39)
• Reading distance: 10 mm to 600 mm
• Power supply: 5V ±5%
• Operating current: 50 mA (active), 30 mA (standby)
• Material: ABS + PVC + PC
• Protection rating: IP52
• Drop resistance: 1.5 meters on concrete
• ESD protection: 15 kV (air discharge)
• Dimensions: 162 mm × 68 mm × 93 mm
• Weight: 169 g ±5 g (without cable)
• Supported systems: Windows, Linux, Android, macOS
