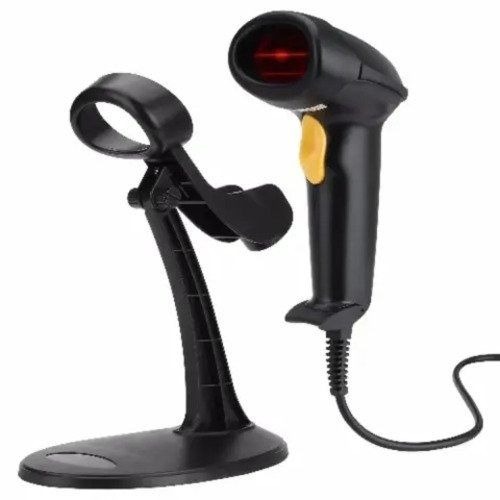

Micro Wired Handheld 1D Scanner with Stand (OCBS LA15)

Micro Wired Handheld 1D Scanner with Stand (OCBS LA15) is a fast and reliable barcode scanning solution designed for retail, warehousing, and point-of-sale environments. It delivers high-speed laser decoding performance with excellent accuracy, ensuring quick and efficient data capture. With its ergonomic design, hands-free stand, and plug-and-play USB connectivity, the OCBS LA15 is ideal for businesses that require consistent, high-volume barcode scanning.

Product Features

Auto-Sense Trigger Function

The scanner automatically detects and reads barcodes without requiring a manual trigger, improving workflow efficiency and reducing operator fatigue.

High Scan Rate and Long Reading Distance

Delivers up to 400 scans per second with a reading distance of approximately 10 mm to 600 mm, providing flexible and accurate scanning from various angles.

Wired Connectivity with Stand

Includes a USB interface and comes with a stand for hands-free operation, making it suitable for high-traffic counters and continuous scanning environments.

Rugged and Durable Construction

Built with high-quality ABS and PC materials, rated at IP52, and designed to withstand drops up to 1.5 meters, ensuring long-term reliability.

Broad Barcode Compatibility

Supports all major 1D barcode formats such as Code 39, Code 128, EAN, UPC, and Codabar, ensuring compatibility with different retail and warehouse labeling systems.

Multi-Platform System Support

Compatible with Windows, Linux, Android, and macOS, allowing seamless integration with POS systems and computers across platforms.

Product Specifications

• Model: OCBS LA15
• Interface: USB (default), optional RS232
• Power supply: 5V DC ±5%
• Power consumption: 105 mW (standby), 320 mW (working), 550 mW (maximum)
• Light source: Visible red laser, 650 nm wavelength
• Scanning speed: Up to 400 scans per second
• Reading distance: 10 mm to 600 mm
• Resolution: 4 mil minimum print resolution
• Error rate: 1 in 5,000,000
• Drop resistance: 1.5 meters on concrete
• ESD protection: 15 kV (air discharge)
• Protection rating: IP52
• Supported systems: Windows, Linux, Android, macOS
