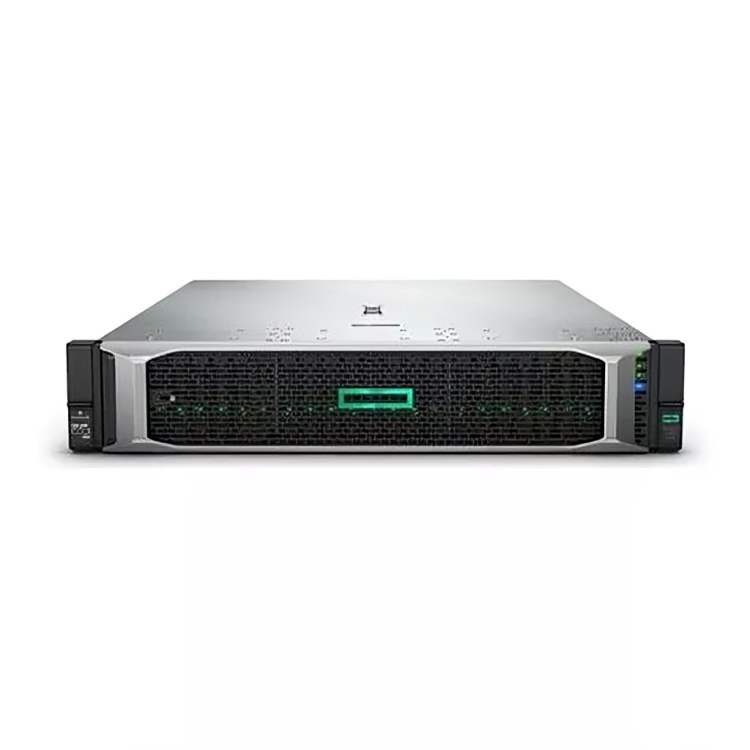

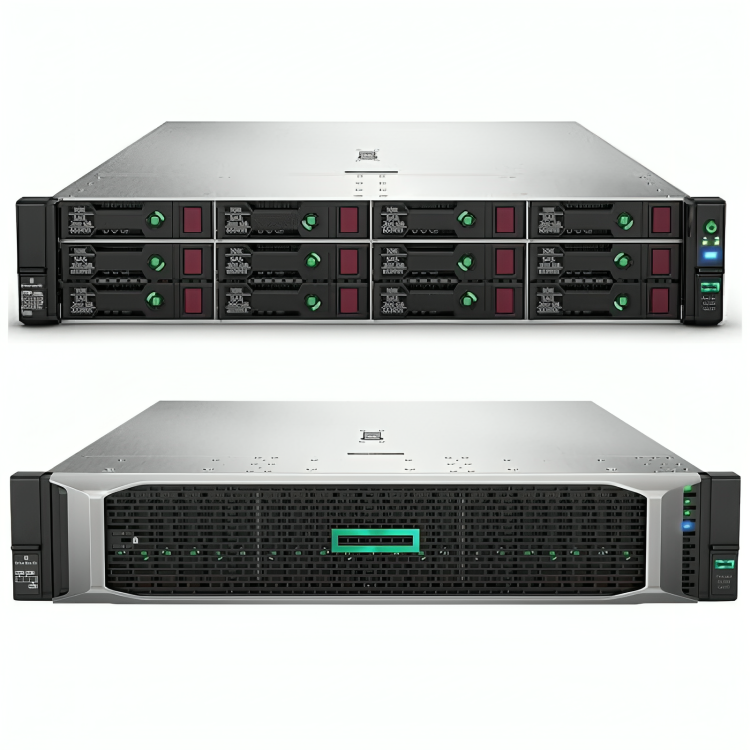

HPE ProLiant DL380 Gen10 Rack Server P56961-B21

Processor (CPU)

• Model: Intel Xeon Scalable 4210R
• Cores/Threads: 10 Cores / 20 Threads
• Base Clock Speed: 2.40 GHz
• Cache: 13.75MB Intel Smart Cache
• Architecture: 14nm
• Thermal Design Power (TDP): 85W
• Max Turbo Frequency: 3.20 GHz
• Processor Family: Intel Xeon Scalable (Second Gen)
• Intel® Hyper-Threading Technology: Yes, for better multitasking performance

Memory (RAM)

• Installed Memory: 32GB DDR4
• Memory Type: DDR4-2933
• Memory Slots: 24 DIMM slots
• Expandable Memory: Up to 3TB with compatible DIMMs
• Supported Memory Configuration: Supports RDIMM and LRDIMM memory configurations
• Memory Channels: 6 channels per processor, maximizing memory bandwidth
• Memory Buffering: Registered (RDIMM), Load-Reduced (LRDIMM)

Storage

• Drive Bays:
  • 8 x Small Form Factor (SFF) SAS (Serial Attached SCSI) drive bays
  • Supports both 2.5” and 3.5” drives
• Storage Controller: HPE Smart Array MR416i-p Controller with 4GB cache
• RAID Support:
  • RAID 0, 1, 5, 6, 10, 50, and 60
  • Enhanced performance with HPE Smart Cache technology
• Hot-Swappable Drives: Yes, for ease of maintenance and upgrades
• Drive Options:
  • Mix of SSDs and HDDs for a balance of speed and capacity
  • Ideal for both high-performance and large capacity workloads

Networking

• Network Controller:
  • HPE Ethernet 1Gb 4-port 331i Adapter (Optional upgrade to 10Gb or higher)
• Network Ports:
  • 4 x 1Gb Ethernet ports
  • Additional network cards can be added for more connectivity options

Management and Monitoring

• Management Controller: HPE iLO 5 (Integrated Lights-Out)
  • iLO Standard (Upgradeable to iLO Advanced for more features)
  • Remote management, system diagnostics, firmware updates, and automated recovery
  • Web-based interface for system monitoring and management

Chassis and Expansion

• Form Factor: Rackmount (2U)
• Drive Bays:
  • 8 x Small Form Factor (SFF) SAS bays
  • Supports both 2.5” and 3.5” drives
• Expansion Slots:
  • 3 x PCIe 3.0 slots
  • 1 x PCIe 3.0 x16 full-height slot
  • 2 x PCIe 3.0 x8 low-profile slots
• Cooling:
  • Hot-pluggable, redundant fan configuration for maximum airflow and optimal thermal management

Power Supply

• Power Supply:
  • 800W HPE Flex Slot Platinum Hot-Plug Power Supply
  • Redundant and energy-efficient, ensuring high reliability and minimizing operational costs
  • Hot-pluggable for easy maintenance without downtime
  • Platinum Efficiency rating for reduced energy consumption

Security

• Security Features:
  • HPE Silicon Root of Trust for firmware security
  • Secure Boot and TPM 2.0 (Trusted Platform Module) for enhanced data protection
  • Hardware-level security with HPE’s integrated security features to safeguard sensitive data and system integrity
  • Optional HPE Security Features for advanced encryption and authentication

Physical Specifications

• Dimensions (HxWxD):
  • 3.44 inches (87.5 mm) x 17.5 inches (445 mm) x 29.1 inches (739 mm)
• Weight: 33.07 kg (73 lbs)

Operating System Support

• Supported Operating Systems:
  • Microsoft Windows Server (2016, 2019, 2022)
  • Red Hat Enterprise Linux (RHEL)
  • Ubuntu Server
  • VMware ESXi
  • HPE Custom Operating System Support
• Pre-installed OS: Optional based on configuration

Warranty

• Warranty:
  • 3-Year HPE Support and Warranty
  • Next-business-day onsite service for hardware support
  • 24/7 access to HPE technical support

Key Features

1. Intel Xeon Scalable 4210R Processor:
   • 10 cores and 20 threads for enhanced multitasking and performance at a base clock of 2.40 GHz, boosting up to 3.20 GHz for demanding workloads.
2. 32GB DDR4 Memory:
   • High-performance memory with scalability options up to 3TB for memory-intensive applications and virtual environments.
3. HPE Smart Array MR416i-p Controller:
   • 4GB cache for improved RAID performance, enabling high-speed data access and secure storage.
4. 8 x SFF SAS Drive Bays:
   • Flexible storage options for 2.5” and 3.5” SAS, SATA, or SSD drives, allowing for a customizable balance of speed and storage capacity.
5. Energy-Efficient 800W Flex Slot Platinum Power Supply:
   • Redundant and hot-pluggable, ensuring uptime and minimal power consumption with a Platinum efficiency rating.
6. Remote Management with HPE iLO 5:
   • Seamless remote access, monitoring, and diagnostics to manage the server without being physically present.
7. Scalable Expansion:
   • Multiple PCIe slots and SAS bays, allowing you to easily scale resources and storage as your business grows.
8. Advanced Security Features:
   • HPE Silicon Root of Trust, Secure Boot, TPM 2.0, and encryption options to keep your data safe from vulnerabilities.
9. 3-Year Warranty:
   • Comprehensive warranty with next-business-day onsite service and 24/7 technical support from HPE.

Why Choose HPE ProLiant DL380 Gen10 P56961-B21?

The HPE ProLiant DL380 Gen10 P56961-B21 is engineered for high-performance computing and scalability, making it ideal for both small businesses and enterprise environments. With its Intel Xeon 4210R processor, ample 32GB of DDR4 RAM, and flexible 8 SFF drive bays, this server is designed to handle demanding workloads and data-intensive applications with ease. Enhanced security and remote management capabilities ensure that your server stays protected and easily manageable.
