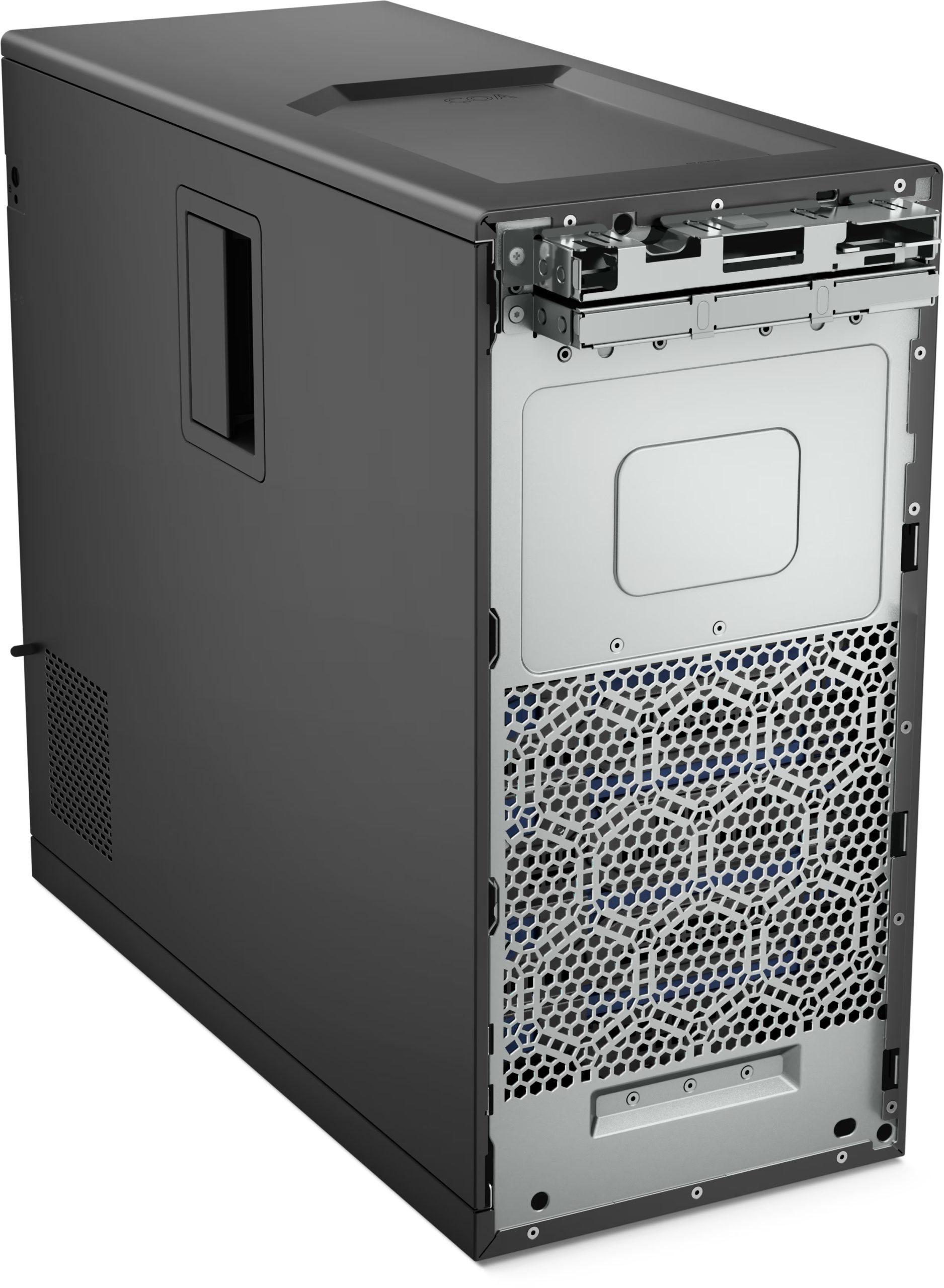

Dell PowerEdge T150 Tower Server (M83C9)

Processor (CPU)

• Model: Intel Xeon E-2314
• Cores/Threads: 4 Cores / 8 Threads
• Base Clock Speed: 3.00 GHz
• Max Turbo Frequency: 4.10 GHz
• Cache: 8MB Intel Smart Cache
• Architecture: 14nm
• Thermal Design Power (TDP): 70W
• Processor Family: Intel Xeon E-Series (Entry-level Workstation & Server processors)

Memory (RAM)

• Installed RAM: 8GB DDR4 UDIMM
• Memory Type: DDR4-2933
• Memory Slots: 4 x DIMM slots (supports up to 64GB)
• Expandable Memory: Yes, up to 64GB with compatible DIMMs
• Memory Channels: Quad-channel for optimal performance

Storage

• Storage Controller: Integrated RAID controller (RAID 0, 1, 5, 10 support)
• Hard Drive: 1TB 3.5-inch SATA HDD
• Drive Bays: 4 x 3.5″ internal drive bays (hot-swappable)
• Max Storage Capacity: Up to 16TB (with 4TB 3.5″ HDDs in each bay)
• SSD Compatibility: Yes, supports SSDs for faster performance (can be added to available bays)

Networking

• Network Controller: Broadcom 5720 Dual Port Gigabit Ethernet
• Network Ports:
  • 2 x 1GbE RJ45 ports
  • Support for network teaming, failover, and load balancing

Management and Monitoring

• Integrated Management: iDRAC9 Basic
  • Provides remote management capabilities for system monitoring, power management, and troubleshooting.
• Optional Management Upgrade: iDRAC9 Enterprise for more advanced management features such as virtual media and console access

Chassis and Expansion

• Form Factor: Tower
• Drive Bays:
  • 4 x 3.5″ internal hot-swappable drive bays
  • Supports both HDDs and SSDs for flexible storage configurations
• Expansion Slots:
  • 1 x PCIe 3.0 x16 (for additional GPU, network cards, or storage controllers)
  • 1 x PCIe 3.0 x8
  • 2 x PCIe 3.0 x4
• Power Supply:
  • 350W Non-hot pluggable power supply
  • Energy-efficient design to reduce operational costs

Ports and Interfaces

• Front Ports:
  • 1 x USB 3.0
  • 2 x USB 2.0
  • 1 x SD card reader

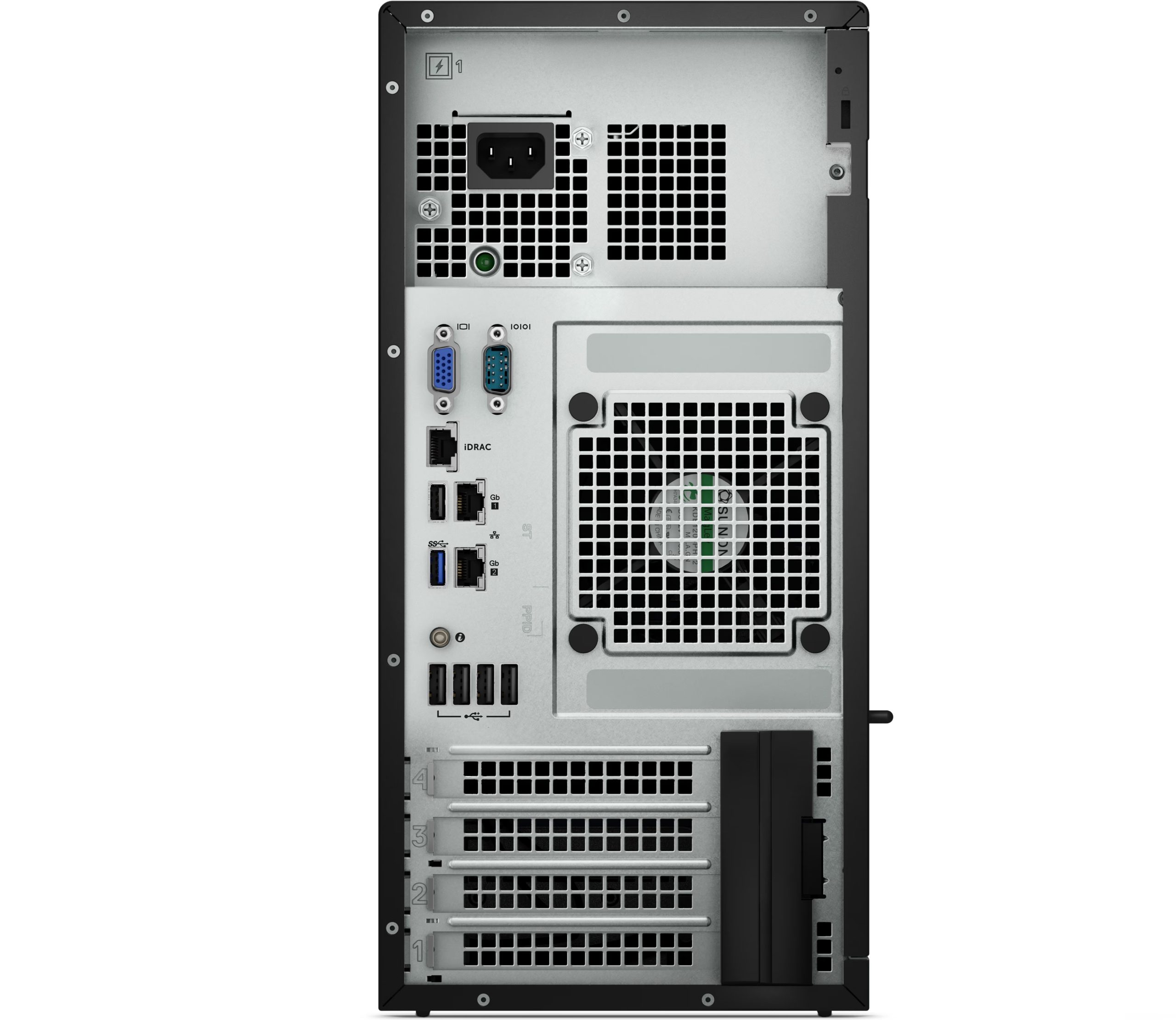

• Rear Ports:
  • 2 x USB 3.0
  • 1 x USB 2.0
  • 1 x VGA
  • 2 x 1GbE (RJ45)
  • 1 x Serial (DB-9)
  • 1 x PS/2 (keyboard/mouse)

Operating System

• Supported OS:
  • Windows Server 2019, 2016, and 2022
  • Red Hat Enterprise Linux (RHEL)
  • Ubuntu Server
  • VMware ESXi
• Pre-installed OS: Depending on configuration (customizable)

Power and Cooling

• Power Supply: 350W Non-hot pluggable
• Cooling: Active cooling system with multiple fans for efficient thermal management

Security

• Trusted Platform Module (TPM): TPM 2.0 for secure boot and data encryption
• System Lockdown: BIOS-level security to prevent unauthorized changes
• Secure Boot: UEFI-based secure boot options

Physical Specifications

• Dimensions:
  • Height: 16.9 inches (430mm)
  • Width: 7.5 inches (190mm)
  • Depth: 16.2 inches (412mm)
• Weight: 19.8 lbs (8.98 kg)

Warranty

• Standard Warranty: 1-Year Limited Hardware Warranty
  • Next Business Day: 1-Year Onsite Service After Remote Diagnosis
• Extended Warranty Options: Available for up to 5 years

Key Features

1. Intel Xeon E-2314 Processor:
   • 4 cores and 8 threads with a 3.00 GHz base clock, turboing up to 4.10 GHz, providing ample power for entry-level server tasks and workloads.
2. Expandable Memory:
   • 8GB DDR4 RAM, scalable up to 64GB for future-proofing against more demanding applications.
3. Storage Flexibility:
   • 1TB 3.5″ SATA HDD with 4 x 3.5″ bays for hot-swappable drives. Supports up to 16TB for growing storage needs.
4. Dual-Port Gigabit Ethernet:
   • Broadcom 5720 network controller offering dual 1GbE RJ45 ports, ideal for high-performance networking, failover, and redundancy.
5. iDRAC9 Basic Management:
   • Simplifies remote server monitoring, management, and maintenance with basic remote control features.
6. Scalable Expansion Options:
   • Includes 4 PCIe slots (1 x PCIe 3.0 x16, 1 x x8, 2 x x4) to add additional components like graphics cards or network adapters.
7. Efficient Power Supply:
   • 350W non-hot-pluggable power supply designed to minimize energy usage while ensuring optimal performance.
8. Enterprise-Class Security:
   • TPM 2.0 for secure data encryption and UEFI secure boot to protect from unauthorized access.
9. 1-Year Warranty:
   • Includes 1-year on-site service and next-business-day warranty for peace of mind.

This Dell PowerEdge T150 tower server delivers a powerful, scalable, and cost-effective solution for small businesses and entry-level server workloads.
