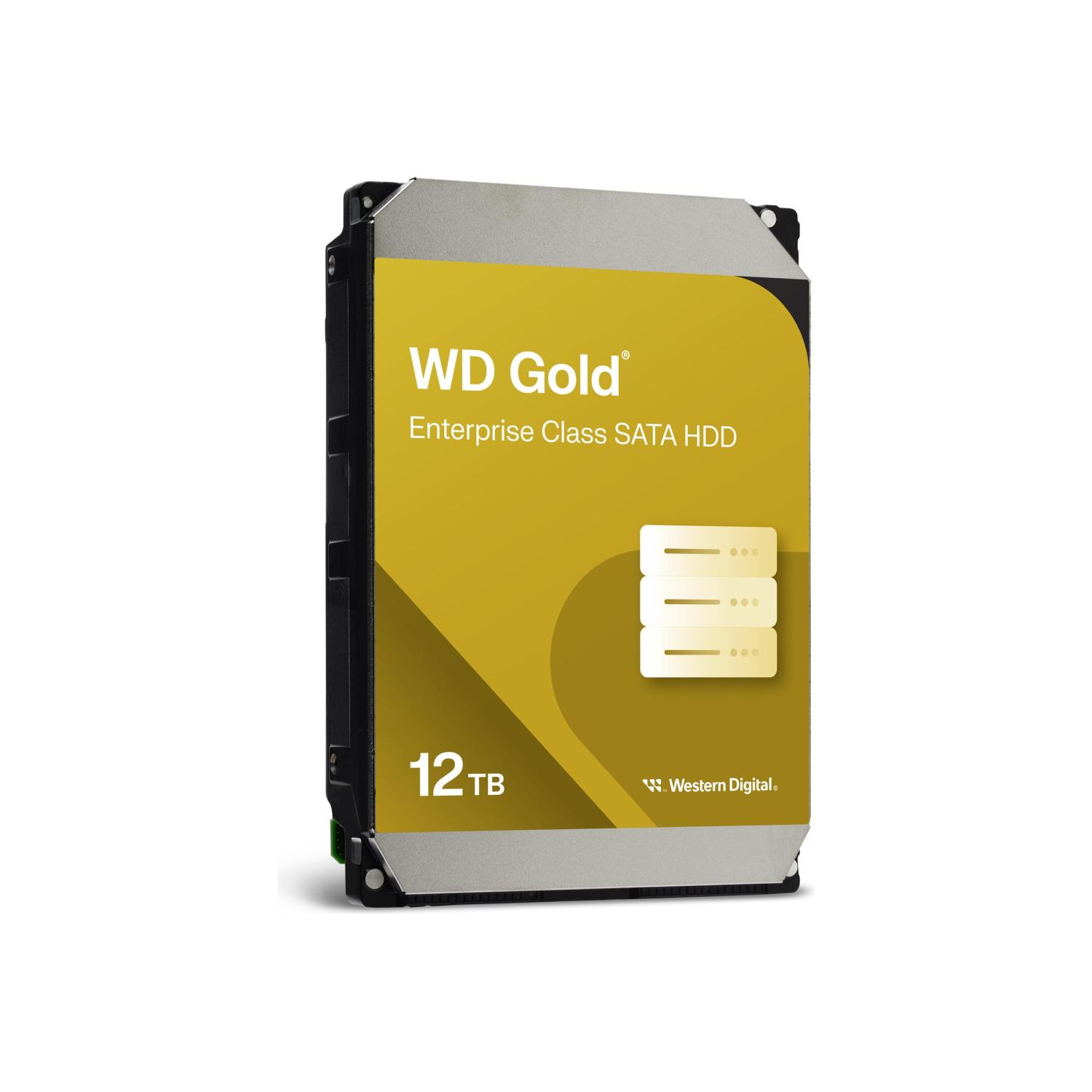

WD Gold Enterprise Class Hard Drive 12TB, 256MB, 7200rpm – WD121KRYZ

Specifications for WD Gold Enterprise Class Hard Drive 12TB (WD121KRYZ)

WD Gold 12TB (WD121KRYZ) is an enterprise-class hard drive built for demanding applications, providing high capacity, fast performance, and reliability for 24/7 operations. Designed for use in data centers, cloud storage, and other high-demand environments, this drive offers exceptional endurance, efficiency, and storage capacity.

General Specifications

Feature	Details
Model	WD Gold 12TB (WD121KRYZ)
Capacity	12TB (12,000GB)
Interface	SATA 6Gbps (SATA III)
Form Factor	3.5-inch
Cache Size	256MB
Drive Type	Enterprise HDD (High-performance, high-capacity)
RPM	7200 RPM
Dimensions	147 mm x 101.6 mm x 26.1 mm (5.79 x 4.00 x 1.03 inches)
Weight	710g (1.56 lbs)

Performance

Feature	Details
Data Transfer Rate	Up to 255 MB/s sustained transfer rate.
Cache Size	256MB cache for improved access speed and performance.
Rotation Speed	7200 RPM for faster read/write performance in high-demand environments.
Average Latency	4.16 ms (typical).

Reliability and Endurance

Feature	Details
MTBF (Mean Time Between Failures)	2.5 million hours for enterprise-class reliability.
Workload Rate	550TB/year workload for enterprise-level data operations.
RAID Compatibility	Fully compatible with RAID configurations for redundancy and performance.
Temperature	Operating Temp: 0°C to 60°C (32°F to 140°F). Non-operating Temp: -40°C to 70°C (-40°F to 158°F).
Vibration Resistance	Supports high-vibration environments, ideal for multi-drive systems.

Advanced Features

1. HelioSeal Technology:
   • Uses helium-sealed design to reduce internal friction, making the drive more energy-efficient and enhancing capacity by fitting more platters inside.
2. Data Protection and Error Recovery:
   • RAID Error Recovery Control to prevent drive errors that could result in data corruption during extended operations.
   • Advanced Format (AF): Supports 4K sector architecture, which improves storage density and read/write performance.
3. Dynamic Fly Height Technology:
   • Provides consistent performance by optimizing the head position relative to the disk surface, reducing errors during read/write operations.
4. Enhanced Power Loss Data Protection:
   • Helps protect data during sudden power interruptions by improving data integrity.

Power Efficiency

Feature	Details
Idle Power Consumption	5.0W during idle conditions, ensuring energy efficiency.
Active Power Consumption	9.0W during active operations for faster performance.
Spin-up Power	30W max during startup, with low operational power usage.

Environmental and Warranty

Feature	Details
Operating Temperature	0°C to 60°C (32°F to 140°F).
Non-operating Temperature	-40°C to 70°C (-40°F to 158°F).
Humidity Range	5% to 95% relative humidity, non-condensing.
Warranty	5-year limited warranty for reliability and peace of mind.

Applications and Use Cases

• Enterprise Storage Systems: Ideal for data centers, NAS (Network Attached Storage), SAN (Storage Area Network), and other enterprise applications.
• High-Capacity Servers: Provides massive storage space for servers in environments where data processing and retrieval speed are crucial.
• RAID Arrays: Perfect for use in RAID 5, RAID 6, and other RAID configurations to ensure redundancy and data protection.
• Cloud Storage & Backup: High reliability and endurance make it suitable for cloud storage and backup solutions.

Why Choose WD Gold 12TB (WD121KRYZ)?

1. Massive 12TB Capacity: Ideal for enterprises needing large-scale storage for critical data.
2. High Performance: 7200 RPM speed with 256MB cache ensures fast data transfer for enterprise environments.
3. Endurance and Reliability: Designed to handle 550TB/year workloads with 2.5 million hours MTBF.
4. Energy Efficiency: HelioSeal technology and optimized power consumption make it energy-efficient, reducing operational costs.
5. Long-Term Warranty: Comes with a 5-year limited warranty, ensuring long-term support and reliability.

The WD Gold 12TB (WD121KRYZ) is a top-tier enterprise-class hard drive designed to deliver high performance, durability, and scalability for demanding storage applications. Whether you’re building a large-scale storage system or upgrading your current infrastructure, it offers unmatched capacity, reliability, and efficiency.

Applications of WD Gold 12TB Enterprise Class Hard Drive (WD121KRYZ)

The WD Gold 12TB (WD121KRYZ) is a high-performance, high-capacity hard drive designed for enterprise-level storage solutions. Its robustness, reliability, and advanced features make it ideal for various critical applications:

1. Data Centers

• Massive Storage Capacity: Ideal for handling vast amounts of data in data center environments, ensuring reliable and high-capacity storage for various services.
• 24/7 Operation: Built for continuous, high-performance operation, handling workloads up to 550TB/year with a MTBF of 2.5 million hours.

2. Network Attached Storage (NAS)

• High-Capacity Storage: The 12TB capacity allows NAS systems to store large volumes of data, ideal for businesses requiring scalable, reliable, and centralized storage solutions.
• RAID Compatibility: Perfect for use in NAS systems configured in RAID arrays, providing redundancy and data protection for mission-critical files and applications.

3. Storage Area Networks (SAN)

• High-End Performance: With 7200 RPM speed and 256MB cache, the WD Gold drive is well-suited for high-performance SAN environments, supporting fast data transfers and low latency for optimal networked storage.
• Enterprise-Grade Reliability: Excellent for businesses running demanding applications on SANs, ensuring data integrity and uptime.

4. High-Capacity Servers

• Large Scale Data Storage: Perfect for servers that require high-capacity, reliable storage for large datasets, applications, and virtual machines.
• Data Backup: With its high reliability and endurance, this drive is ideal for backing up large amounts of critical enterprise data in server environments.

5. Cloud Storage & Backup Solutions

• Data Integrity and Security: Designed to handle high-intensity data backup tasks, this hard drive is perfect for cloud storage applications where continuous data access and integrity are essential.
• Energy Efficiency: The HelioSeal technology and low power consumption make it an efficient option for cloud storage providers looking to minimize operational costs.

6. RAID Arrays (RAID 5, RAID 6, RAID 10)

• Redundancy and Protection: With its support for RAID configurations, the WD Gold drive provides the redundancy and fault tolerance necessary for mission-critical data applications.
• Scalability: Businesses can expand storage capacity with multiple WD Gold drives in RAID configurations, ensuring high availability and continuous data access.

7. Video Surveillance Systems

• Continuous Data Writing: Ideal for use in surveillance and security systems that require large, continuous storage for high-definition video feeds.
• High Endurance: Designed for environments with high-vibration and continuous write operations, ensuring consistent performance for video storage systems.

8. Big Data and Analytics

• Large Dataset Storage: Suitable for businesses that work with big data and need large-scale storage to manage and analyze massive datasets.
• Fast Read/Write Performance: Optimized for high-speed data access and processing, crucial for running complex analytics and applications on large datasets.

9. Enterprise Applications and Virtualization

• Data-Intensive Applications: The WD Gold is an excellent choice for running data-intensive applications that require large amounts of fast, reliable storage for virtual machines and enterprise software.
• High Availability: Ensures data is always available, with RAID and error recovery features to protect against downtime and data loss.

The WD Gold 12TB (WD121KRYZ) is engineered to meet the demands of high-performance, high-capacity, and high-reliability applications in enterprise and data center environments. Whether you’re building a large-scale storage solution or maintaining critical business operations, this hard drive ensures your data is secure, accessible, and efficiently stored.
