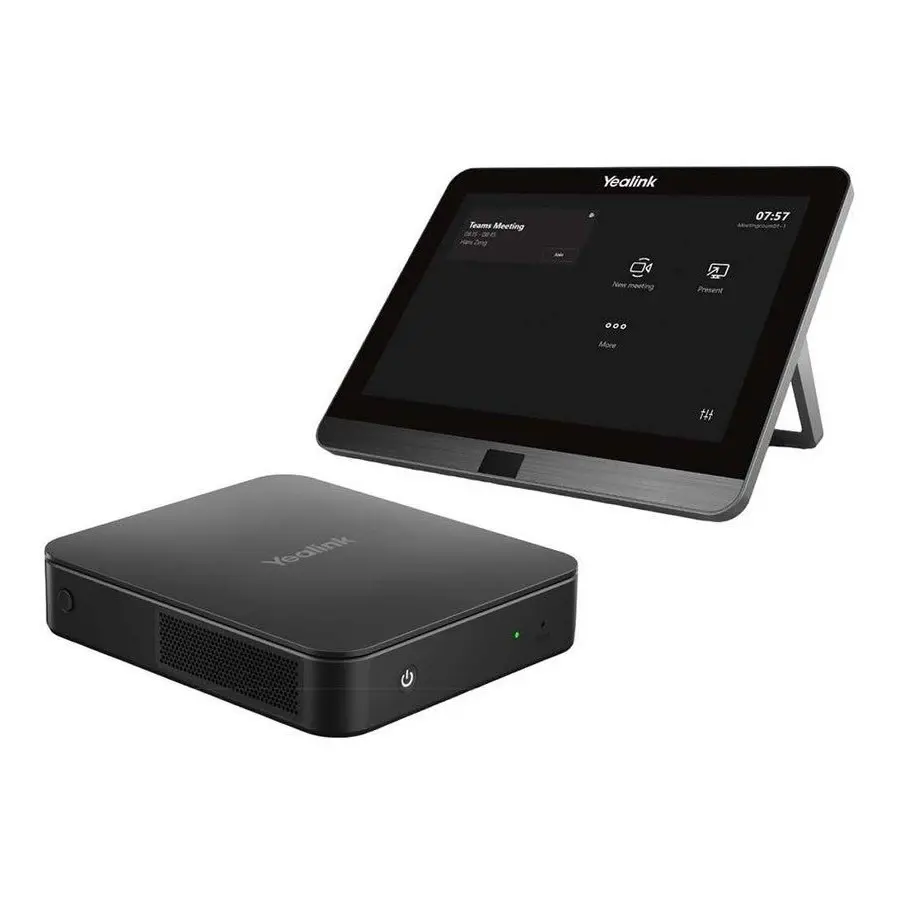

Yealink MCore Kit – Microsoft Teams Rooms System Kit

Yealink MCore Kit is a comprehensive Microsoft Teams Rooms system kit designed to transform any meeting space into a collaborative hub. Engineered for medium to large meeting rooms, this all-in-one solution combines the powerful Yealink MCore mini PC, a high-definition camera, a premium speakerphone, and a touch console. The kit delivers native Microsoft Teams Rooms experience, enabling one-touch join, content sharing, and intelligent audio-visual processing. Certified by Microsoft, it ensures seamless integration with Teams and Skype for Business, reducing deployment complexity and IT overhead for modern workplaces.

Product Features

Native Microsoft Teams Rooms Experience

The kit runs the official Microsoft Teams Rooms software, providing a consistent and intuitive interface. Users can join scheduled meetings with a single touch, access calendar integration, and share wireless content from any device. The system automatically updates through Windows IoT Enterprise, ensuring security and feature parity with desktop Teams clients.

Yealink MCore Compute Unit

The compact MCore mini PC is powered by an Intel Celeron processor with 8GB RAM and 128GB SSD storage. It features dual HDMI outputs for dual displays, four USB ports, and built-in Bluetooth 5.0 and Wi-Fi 6. The fanless design ensures silent operation in meeting environments, while the VESA mountable chassis allows discreet placement behind displays.

High-Definition Camera System

Included is the Yealink UVC30 camera with 4K resolution and a 120-degree wide field of view. The camera supports autoframing and speaker tracking, automatically adjusting to include all participants. With 10x digital zoom and ePTZ controls, the camera delivers crisp video even in low light conditions via its CMOS sensor.

Premium Audio with Microsoft Certification

Yealink CPW90 speakerphone provides full-duplex audio with Yealink Noise Proof technology. It suppresses background noise such as typing, paper shuffling, and HVAC systems. The microphone array covers a 6-meter radius, making it suitable for rooms seating up to 20 people. Acoustic echo cancellation and beamforming ensure clear speech capture.

Touch Console Controller

Yealink CTP18 touch console features an 8-inch IPS display with 1280 x 800 resolution. It supports wired PoE connection to the MCore, providing reliable control without battery concerns. The console displays meeting details, participant lists, and content previews, allowing users to control all meeting functions without using personal devices.

Centralized Management and Deployment

IT administrators can remotely manage multiple Yealink MCore Kits using the Yealink Management Cloud Service or Microsoft Teams Admin Center. Features include device health monitoring, configuration push, log collection, and automatic firmware updates. The kit also supports proximity join and cast from Microsoft Teams mobile apps.

Product Specifications

• Operating System: Windows 10 IoT Enterprise (64-bit) with Microsoft Teams Rooms license
• Processor: Intel Celeron J4125 (quad-core, 2.0 GHz base, 2.7 GHz burst)
• Memory: 8 GB DDR4 RAM (non-expandable)
• Storage: 128 GB M.2 SATA SSD
• Camera sensor: 8 MP CMOS, 4K at 30 fps, 120-degree diagonal FOV
• Speakerphone microphone array: 6 MEMS microphones, coverage radius 6 meters
• Speaker output: 10 W RMS, frequency response 100 Hz – 16 kHz
• Audio processing: Full-duplex, AEC, noise reduction, automatic gain control
• Display outputs: 2 x HDMI 1.4 (up to 4K at 30 fps)
• Network connectivity: 1 x Gigabit Ethernet (PoE+ for console), Wi-Fi 6 (802.11ax), Bluetooth 5.0
• USB ports: 2 x USB 3.0, 2 x USB 2.0
• Touch console display: 8-inch IPS, capacitive touch, 1280 x 800 pixels
• Touch console connection: PoE (IEEE 802.3af) via Ethernet to MCore
• Camera interface: USB 3.0 (plug-and-play)
• Power supply: 100–240 V AC input, 12 V DC output (MCore unit)
• Dimensions (MCore): 150 mm x 150 mm x 32 mm
• Operating temperature: 0 to 40 degrees Celsius
• Mounting options: VESA (75 mm x 75 mm and 100 mm x 100 mm), desktop, or wall mount
• Certifications: Microsoft Teams Certified, CE, FCC, RoHS, IC
