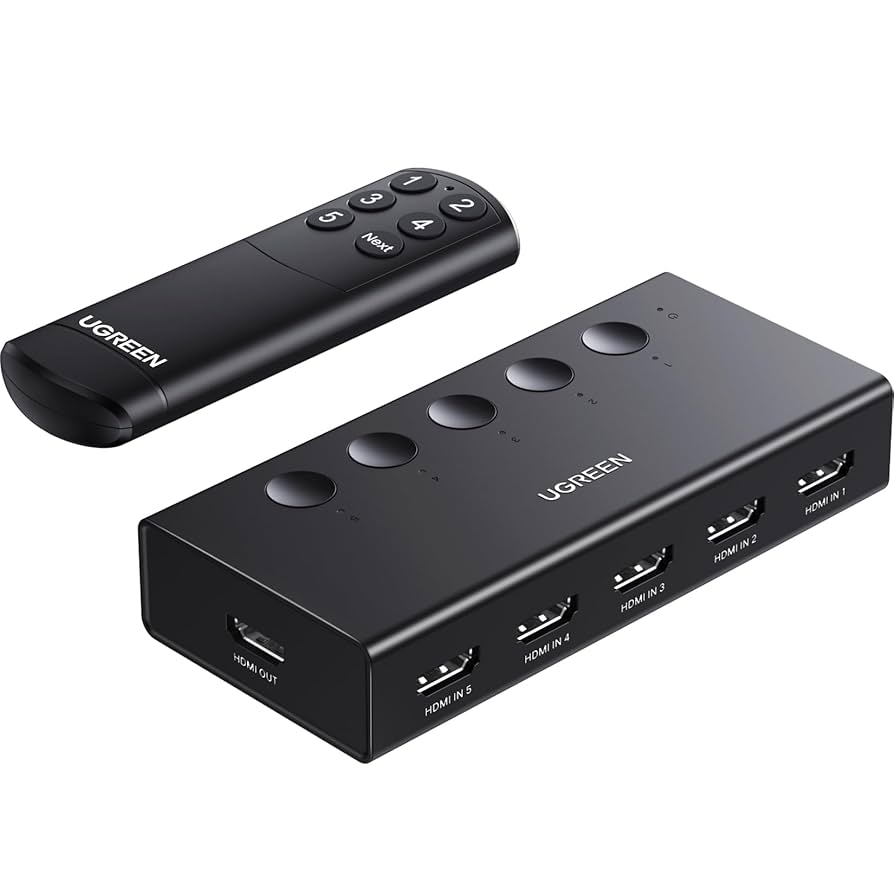

UGREEN 5-In 1-Out HDMI Switch – 4K@60Hz with Remote Control

UGREEN 5-In 1-Out HDMI Switch (model UG-90512) is a versatile device designed to streamline your entertainment setup. It allows you to connect up to five HDMI-enabled devices—such as gaming consoles, Blu-ray players, and streaming devices—to a single HDMI input on your TV, monitor, or projector. This eliminates the hassle of constantly swapping cables and ensures a seamless viewing experience. Supporting high-definition resolutions up to 4K at 60Hz, along with HDR and HDCP 2.2 compliance, it delivers crisp visuals and vibrant colors. The switch comes equipped with an infrared remote control for convenient switching between devices from a distance, enhancing user comfort. Whether you’re gaming, streaming, or watching movies, the UGREEN HDMI Switch offers a practical and efficient solution for managing multiple HDMI sources.

Product Features

Multiple HDMI Inputs

Connect up to five HDMI devices to a single display, reducing the need for frequent cable changes.

High-Resolution Support

Enjoy sharp and clear visuals with support for 4K@60Hz, 2K@120Hz, and 1080P@240Hz resolutions.

HDR and HDCP 2.2 Compliance

Experience enhanced color depth and contrast with HDR support, and ensure compatibility with protected content through HDCP 2.2 compliance.

Infrared Remote Control

Switch between connected devices effortlessly using the included infrared remote control, with a range of up to 33 feet.

Manual Switching Option

For quick device selection, use the manual button located on the switch itself.

Plug-and-Play Installation

No additional drivers or software are required; simply connect and start using.

USB-C Powered

Powered via a USB-C connection (5V/1A), ensuring stable performance and eliminating the need for an external power adapter.

LED Indicators

Five LED indicators display the active HDMI input, making it easy to identify which device is currently in use.

Product Specifications

• Model Number: UG-90512 (CM568)
• Input Ports: 5 x HDMI
• Output Port: 1 x HDMI
• Resolution Support: Up to 4K@60Hz, 2K@120Hz, 1080P@240Hz
• HDR Support: Yes (HDR10, Dolby Vision)
• HDCP Compliance: HDCP 2.2
• Audio Formats Supported: DTS, DSD, Dolby AC3, 5.1/7.1 channel
• Audio Sampling Rate: Up to 192 kHz, 24-bit
• Cable Length Support:
  • 4K@60Hz: Up to 3 meters (30 AWG)
  • 4K@30Hz: Up to 15 meters (26 AWG)
  • 1080P@60Hz: Up to 20 meters (24 AWG)
• Power Supply: USB-C 5V/1A
• Power Cable: 1 meter USB-A to USB-C cable included
• Remote Control: Infrared, requires 2 x AAA batteries (not included)
• Material: ABS plastic casing
• Dimensions: Compact design for easy placement
• Compatibility: Compatible with devices such as PS5, PS4/Pro, Xbox Series X/S, Nintendo Switch, Roku, Fire TV Stick, Blu-ray players, PCs, and laptops

This HDMI switch is ideal for users seeking to simplify their entertainment systems by consolidating multiple HDMI sources into a single input, ensuring a clutter-free and efficient setup.
