UGREEN HDMI Splitter 1 In 2 Out UK

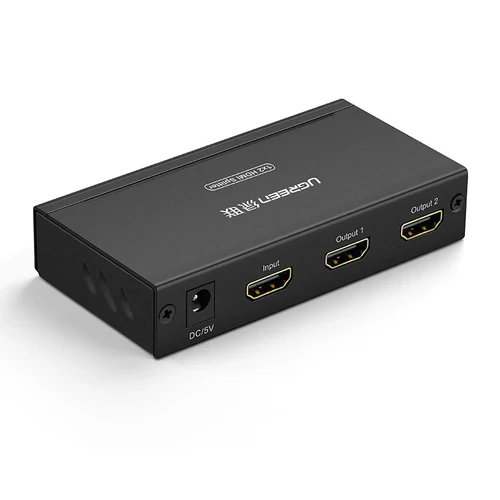

UGREEN HDMI Splitter 1 In 2 Out UK (model UG‑40201UK, CM619) efficiently mirrors a single HDMI source across two displays, supporting resolutions up to 4K@30 Hz. Designed for home theaters, classrooms, presentations, and multi-screen setups, this compact device ensures high-quality video and audio distribution without signal loss or lag.

Product Features

Dual HDMI outputs

Splits one HDMI input into two identical outputs, allowing seamless sharing of the same content on two screens simultaneously.

4K and 3D video support

Delivers sharp visuals at up to 4K@30 Hz and supports 3D formats along with 1080p, ensuring compatibility with modern media.

Wide audio format compatibility

Supports LPCM 7.1, Dolby TrueHD, DTS-HD and more, ensuring crystal-clear multi-channel audio across both displays.

Built‑in signal amplification

Buffering and amplification preserve signal integrity over longer HDMI cable runs—up to 40 m for 1080p and around 12 m for 4K

HDCP 1.4 compliance

Enables playback of copy-protected content from Blu-ray players, game consoles and streaming devices without issues .

Plug‑and‑play operation

No drivers or software required—simply connect power and HDMI cables to begin splitting Audio/Video.

LED status indicators

Built-in LEDs clearly show power and output status, aiding troubleshooting and setup

Product Specifications

• Model number: UG‑40201UK (CM619)
• HDMI version: 1.4
• Input: 1 × HDMI (female)
• Outputs: 2 × HDMI (female)
• Max resolution: 4K × 2K @ 30 Hz; supports 1080p, 1080i, 720p, 3D formats
• Bandwidth: 10.2 Gbps (340 MHz)
• Color depths: Up to 12‑bit deep color
• Audio formats: LPCM 7.1, Dolby TrueHD, DTS-HD, Dolby AC‑3, DSD/HBR
• HDCP version: 1.4 compliant
• Cable distance: Up to 15 m (1080p), 5 m (4K), and up to 40 m for 1080p in some setups
• Power supply: DC 5 V/1 A (adapter included)
• Housing material: ABS plastic, compact and durable
• Dimensions: Approximately 65 × 55 × 18 mm; weight around 56–60 g
• Operating temperature: –15 °C to 55 °C
• Additional features: Supports EDID, CEC-capable, cascade-ready

This splitter is an ideal solution for duplicating a single HDMI source to two displays with high fidelity, versatile compatibility, and reliable performance—perfect for settings where synchronized output across screens is essential.
