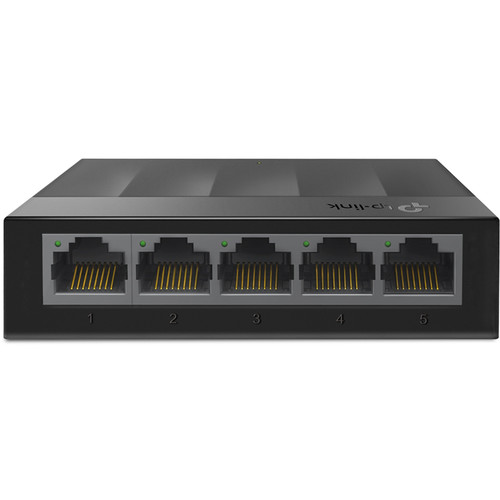

TP-Link 5-Port Gigabit Desktop Switch – LS1005G

TP‑Link LS1005G, a reliable 5‑port unmanaged Gigabit Ethernet switch. Featuring five 10/100/1000 Mbps auto‑negotiation ports with Auto‑MDI/MDIX, this plug‑and‑play switch delivers smooth, non-blocking performance up to 10 Gbps switching capacity. Its fanless, compact plastic design supports desktop or wall mounting, and Green Ethernet technology adjusts power consumption based on link status and cable length for energy efficiency. With IEEE 802.3X flow control and store-and-forward switching, the LS1005G ensures dependable data transfers across connected devices like PCs, game consoles, printers, and IP cameras, making it an ideal networking solution for dorms, workgroups, surveillance setups, and general wired expansion.

Product Features

• Five Gigabit Auto-Negotiation Ports
  Five RJ45 ports support 10/100/1000 Mbps speeds with Auto‑MDI/MDIX, ensuring seamless connectivity without cable type concerns.
• Non‑Blocking 10 Gbps Switching Capacity
  Offers full-duplex support for simultaneous traffic handling, delivering up to 7.4 Mpps forwarding rate.
• Fanless and Quiet Operation
  Completely silent performance with a fan-free design, ideal for office or home environments.
• Green Ethernet Power Savings
  Power consumption automatically adjusts based on link activity and cable length, reducing energy use.
• Plug-and-Play Simplicity
  No setup or configuration required; simply power it on and connect devices for instant network expansion.
• Reliable Data Transmission
  Supports IEEE 802.3X flow control and store-and-forward switching to minimize packet loss and ensure stable data flow.

Product Specifications

• Standards and Protocols: IEEE 802.3i/802.3u/802.3ab/802.3x
• Ports: 5 × 10/100/1000 Mbps RJ45, Auto‑Negotiate, Auto‑MDI/MDIX
• Switching capacity: 10 Gbps non-blocking
• Forwarding rate: 7.4 Mpps
• MAC address table: 2 K entries
• Packet buffer: 1.5 Mb
• Jumbo frame support: up to 16 KB
• Power adapter: 5 V ⎓ 0.6 A
• Max power consumption: 3.7 W (approx. 12.6 BTU/h)
• LEDs: Power, Link/Activity indicators
• Dimensions: 90 × 72 × 23 mm (3.5 × 2.8 × 0.9 in)
• Certifications: CE, FCC, RoHS
• Operating temperature: 0 °C to 40 °C; storage: –40 °C to 60 °C
• Operating humidity: 10–90% non‑condensing; storage: 5–90% non‑condensing
• Packaging includes: desktop switch, external power adapter, installation guide
