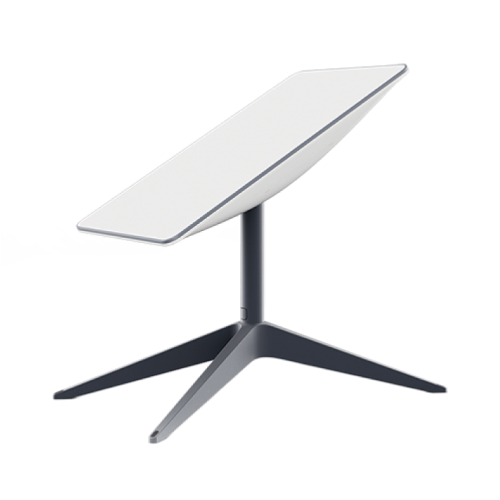

Starlink Standard Actuated Kit Gen 2

Starlink Standard Actuated Kit Gen 2 is SpaceX’s next-generation satellite internet solution, designed to deliver high-speed connectivity with enhanced performance and user-friendly features. Below are the detailed specifications and key features:

Specifications

Antenna (Dish)

• Type: Electronic Phased Array
• Orientation: Motorized self-orienting with automatic alignment
• Dimensions: 513 x 303 mm (H x W)
• Weight: Approximately 2.9 kg
• Field of View: 110°
• Environmental Rating: IP54 (dust and splash resistant)
• Operating Temperature: -30°C to 50°C (-22°F to 122°F)
• Snow Melt Capability: Up to 40 mm/hour (1.5 in/hour)
• Power Consumption: 50–75W
• Mounting Options: Adjustable pole mount with included hardware
• Cable Length: 15.2 meters (50 feet)

Router

• Wi-Fi Technology: Wi-Fi 5 (802.11a/b/g/n/ac)
• Dual-Band: Supports 2.4 GHz and 5 GHz frequencies
• MIMO: 3×3 MIMO for improved throughput and range
• Security: WPA2 encryption
• Coverage Area: Up to 185 m² (2000 sq ft)
• Mesh Compatibility: Supports up to 3 Starlink Mesh Nodes
• Environmental Rating: IP54 (configured for indoor use)
• Operating Temperature: -30°C to 50°C (-22°F to 122°F)
• Power Supply: 100–240V AC, 50–60Hz

Performance

• Download Speeds: 25–220 Mbps (varies by region and network conditions)
• Upload Speeds: 5–20 Mbps
• Latency: 25–60 ms
• Devices Supported: Connect up to 128 devices simultaneously
• Setup: User-friendly installation via mobile app

 What’s Included in the Box

• Starlink Dish (Actuated)
• Base
• Wi-Fi Router
• 15.2m (50ft) Starlink Cable
• 1.8m (6ft) AC Power Cable

Key Benefits

• Enhanced Connectivity: The phased array antenna and motorized self-orienting mechanism ensure optimal satellite alignment, providing reliable internet access.
• Wide Coverage: The router’s coverage area of up to 185 m² makes it suitable for medium to large homes and small businesses.
• User-Friendly Setup: The mobile app simplifies the installation process, allowing users to set up the system with minimal effort.
• Robust Performance: With support for up to 128 devices and dual-band Wi-Fi, the system can handle multiple users and devices simultaneously.
• Durability: The IP54 rating ensures the equipment can withstand dust and splashes, making it suitable for various environmental conditions.

FAQs

What does “actuated” mean in the context of the Starlink Standard Actuated Kit Gen 2?

“Actuated” refers to the motorized self-orienting mechanism of the dish. Unlike the manual alignment required for the Standard Kit, the Actuated Kit automatically adjusts its orientation to align with the optimal satellite signal, simplifying the setup process and enhancing performance.

What are the main differences between the Standard and Standard Actuated kits?

• Orientation: The Standard Kit requires manual alignment using the Starlink App, whereas the Standard Actuated Kit features a motorized base for automatic alignment.
• Router: The Standard Kit includes a Gen 3 Wi-Fi router, while the Standard Actuated Kit comes with a Gen 2 Wi-Fi router.
• Mounting: The Standard Kit has a built-in kickstand for quick deployment, whereas the Standard Actuated Kit uses a mast with an X-shaped base.
• Size and Weight: The Standard Kit has a slightly larger surface area, and the Actuated Kit’s profile is thicker due to the built-in motors.
• Power Supply: The Standard Kit’s power supply is separate, while the Actuated Kit’s power supply is integrated into the router.

Is the Standard Actuated Kit suitable for rural areas?

Yes, the Standard Actuated Kit is ideal for rural areas, especially where manual alignment might be challenging. Its automatic orientation feature ensures optimal satellite connection, even in areas with obstructions like trees or buildings.

Can I use my own router with the Starlink Standard Actuated Kit?

Yes, you can use your own router. However, note that the Gen 2 router provided with the Actuated Kit does not have built-in Ethernet ports. If you require wired connections, you’ll need to purchase a separate Ethernet adapter.

What is the warranty policy for refurbished Starlink hardware?

Refurbished Starlink hardware comes with a full warranty. If you encounter any issues with the equipment, Starlink’s support team will assist with troubleshooting and potential replacement under the warranty terms.

How does weather affect the performance of the Starlink Standard Actuated Kit?

The Standard Actuated Kit is designed to withstand various weather conditions. Its automatic realignment capabilities help maintain a stable connection during adverse weather, such as heavy rain or snow.
