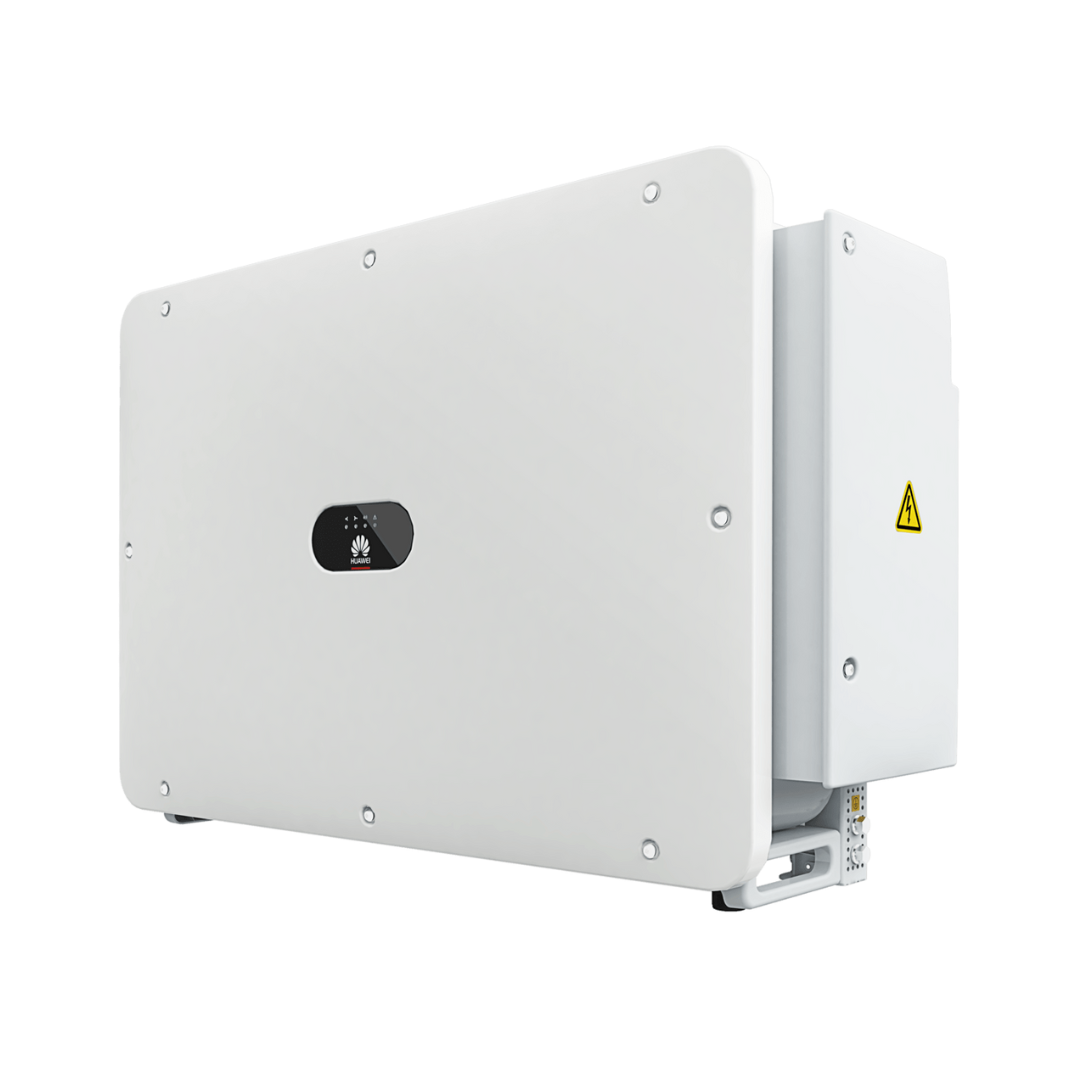

Huawei SUN2000-60KTL-M1 60kW Three-Phase Smart Solar Inverter

Huawei SUN2000-60KTL-M1 inverter is a high-efficiency 60kW three-phase string inverter engineered for commercial and industrial solar PV applications. Designed to maximize energy yield and ensure long-term reliability, this smart solar inverter integrates advanced MPPT technology, AI-driven protection features, and intelligent monitoring capabilities. With support for high DC input voltage, multiple MPPT channels, and seamless integration with Huawei energy management systems, the SUN2000-60KTL-M1 delivers stable grid performance, enhanced safety, and optimized return on investment for medium to large-scale solar installations.

Product Features

High Conversion Efficiency up to 98.7 Percent

The SUN2000-60KTL-M1 offers a maximum efficiency of up to 98.7 percent, reducing conversion losses and increasing overall system output. Its advanced power electronics architecture ensures reliable performance even under varying irradiance conditions.

Six MPPTs for Optimized Energy Harvest

Equipped with six independent Maximum Power Point Trackers, the inverter supports flexible system design with multiple string orientations. This enhances power generation in installations with partial shading or complex rooftop layouts.

Integrated Arc Fault Protection and Safety Systems

The inverter features built-in Arc Fault Circuit Interruption to reduce fire risks. Additional protection includes DC reverse polarity protection, AC overcurrent protection, anti-islanding protection, surge protection devices Type II on both DC and AC sides, and residual current monitoring for safe grid-compliant operation.

Smart I-V Curve Diagnosis and Monitoring

With intelligent I-V curve scanning, installers and operators can perform remote diagnostics to detect string-level faults quickly. The inverter integrates with the Huawei FusionSolar platform for real-time performance monitoring, remote configuration, and system analytics.

Support for High DC Voltage up to 1100 V

The SUN2000-60KTL-M1 supports a maximum DC input voltage of 1100 V, enabling longer string designs and reducing balance-of-system costs. This feature makes it ideal for large commercial and industrial PV systems.

PID Recovery and Advanced Grid Support

The inverter supports PID recovery to mitigate potential-induced degradation in solar modules. It also provides advanced grid support functions such as reactive power control, power factor adjustment, and low voltage ride-through capability to meet modern grid codes.

Durable and Weather-Resistant Construction

With an IP65-rated enclosure, the inverter is suitable for outdoor and indoor installations. Its natural convection cooling design eliminates the need for external fans, minimizing maintenance while ensuring quiet operation.

Product Specifications

• Rated AC output power: 60,000 W
• Maximum AC apparent power: 66,000 VA
• Maximum efficiency: 98.7 percent
• European efficiency: Approximately 98.4 percent
• Number of MPPTs: 6
• Maximum input voltage: 1,100 V
• MPPT voltage range: 200 V to 1,000 V
• Maximum input current per MPPT: 26 A
• Rated output voltage: 400 V, three-phase
• Grid frequency: 50 Hz / 60 Hz
• Total harmonic distortion: Less than 3 percent
• Protection degree: IP65
• Cooling method: Natural convection cooling
• Communication interfaces: RS485, USB, optional Smart Dongle (WLAN, Ethernet, 4G)
• Operating temperature range: -25°C to +60°C
• Maximum operating altitude: 4,000 m (derating above 2,000 m)
• Relative humidity: 0 to 100 percent (non-condensing)
• Weight: Approximately 62 kg
• Dimensions (W x H x D): Approximately 1,035 x 700 x 365 mm

Huawei SUN2000-60KTL-M1 60kW inverter is a reliable solution for commercial rooftops, industrial facilities, and ground-mounted solar projects requiring high efficiency, intelligent management, and robust safety performance
