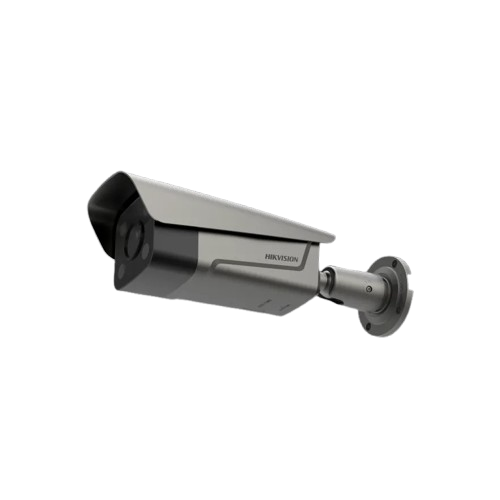

Hikvision Intelligent Entrance Video Unit – DS-TCG205-E

Hikvision Intelligent Entrance Video Unit (DS-TCG205-E) is an advanced ANPR (Automatic Number Plate Recognition) camera designed for intelligent vehicle access control and parking management applications. Equipped with a high-resolution image sensor, integrated AI-powered license plate recognition, built-in LED illumination, and multiple connectivity options, it delivers accurate vehicle identification in various lighting and weather conditions. Ideal for residential estates, commercial buildings, industrial facilities, logistics centers, and secure parking environments, the DS-TCG205-E provides reliable vehicle monitoring, automated gate control, and seamless integration with Hikvision parking management systems.

Product Features

Intelligent License Plate Recognition (ANPR)

The built-in deep learning algorithm accurately detects and recognizes vehicle license plates in real time, enabling automated vehicle entry and exit management with high recognition accuracy.

High-Resolution Imaging

A high-definition image sensor captures clear vehicle images and license plates, ensuring reliable identification during both daytime and nighttime operation.

Integrated LED Illumination

Built-in white light and infrared illumination provide consistent image quality in low-light environments, enabling reliable license plate recognition around the clock.

Intelligent Vehicle Detection

The camera supports intelligent vehicle detection and classification, helping reduce false triggers while improving the efficiency of parking and access control systems.

Wide Dynamic Range (WDR)

True Wide Dynamic Range technology balances bright and dark areas within the same scene, allowing clear capture of vehicle details even in challenging lighting conditions such as headlights or backlit entrances.

Rugged Outdoor Design

Designed for continuous outdoor operation, the unit features a weather-resistant enclosure that protects against dust, rain, and harsh environmental conditions.

Flexible Network Integration

The DS-TCG205-E integrates seamlessly with Hikvision parking management platforms, access control systems, barrier gates, NVRs, and third-party management software through standard network protocols.

Remote Monitoring and Management

Administrators can remotely configure, monitor, and manage the device using Hikvision management software, simplifying system maintenance and operation.

Product Specifications

• Brand: Hikvision
• Model: DS-TCG205-E
• Product Type: Intelligent Entrance Video Unit
• Camera Type: Automatic Number Plate Recognition (ANPR) Camera
• Image Sensor: High-resolution CMOS sensor
• Image Resolution: Up to 2 MP
• Lens Type: Motorized or fixed lens (model dependent)
• License Plate Recognition: Deep learning AI-based ANPR
• Vehicle Detection: Yes
• Vehicle Classification: Yes
• Wide Dynamic Range (WDR): Yes
• Day/Night Mode: Automatic IR Cut Filter (ICR)
• Built-in White Light: Yes
• Built-in Infrared Illumination: Yes
• Image Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Video Streaming: Triple Stream
• Network Interface: 1 × RJ45 10/100 Mbps Ethernet
• Network Protocols: TCP/IP, HTTP, HTTPS, RTSP, FTP, DHCP, DNS, NTP, IPv4, IPv6
• Alarm Input/Output: Yes
• Audio Support: Yes
• Storage: microSD/SDHC/SDXC card support (capacity dependent on configuration)
• Power Supply: 12 V DC and PoE (IEEE 802.3af/at, depending on deployment)
• Weather Protection: IP67-rated
• Impact Protection: IK10-rated
• Operating Temperature: -30°C to 70°C
• Operating Humidity: Up to 95% (non-condensing)
• Mounting Options: Pole mount, wall mount, or dedicated entrance mounting brackets
• Applications: Parking management, gated communities, commercial buildings, industrial sites, logistics parks, campuses, toll stations, and secure vehicle access control systems
• Compatibility: HikCentral Professional, Hikvision Parking Management System, Hikvision NVRs, and supported third-party VMS platforms
• Certifications: CE, FCC, RoHS
• Warranty: Manufacturer’s limited warranty
