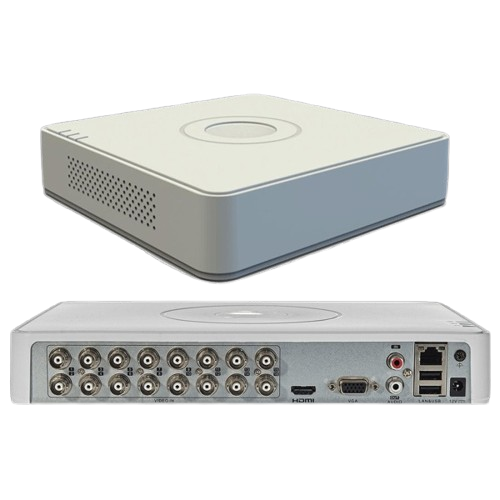

Hikvision DS-7116HGHI-M1 16-Channel 720p Mini 1U H.265 DVR

Hikvision DS-7116HGHI-M1 is a compact 16-channel 720p digital video recorder built for professional-grade surveillance in large homes, offices, retail stores, and industrial facilities. Supporting multiple camera formats and delivering efficient video compression with H.265+, this DVR enables extended recording duration without compromising quality. It offers full HD display output, smart playback features, advanced motion detection with human and vehicle classification, and remote monitoring via the Hik-Connect platform. The mini 1U design makes it ideal for space-constrained installations requiring reliable, high-performance security.

Product Features

16-channel HD video input for extensive coverage

The DS-7116HGHI-M1 supports 16 analog camera inputs at 720p resolution, delivering wide-area video coverage suitable for high-traffic locations such as business complexes, warehouses, and gated properties.

H.265+ video compression for optimized storage

By using H.265+ compression, the DVR reduces storage usage by up to 50% compared to H.264. This advanced technology allows users to record longer durations while maintaining high-quality video, making it cost-effective and efficient.

HDMI and VGA output for high-definition display

The DVR features both HDMI and VGA outputs with support for up to 1080p resolution, ensuring crisp and clear playback on connected monitors. This facilitates precise video analysis during live monitoring or footage review.

Smart playback for quick event review

Smart playback technology helps users efficiently locate and view motion-triggered events by skipping inactive footage, which improves investigation time and usability.

Remote access and mobile viewing with Hik-Connect

With support for the Hik-Connect app and cloud services, users can securely view live or recorded video remotely from their smartphone, tablet, or PC. This real-time access enhances security management from any location.

Multi-format camera compatibility

The DVR supports multiple analog formats including HD-TVI, AHD, HDCVI, and standard CVBS. This flexibility allows seamless integration of various camera types within the same surveillance setup.

Flexible recording modes for tailored surveillance

Users can customize recording to suit their needs through options such as continuous recording, motion detection, or scheduled recording—enhancing efficiency while preserving storage capacity.

Compact mini 1U design for easy installation

Designed in a mini 1U form factor, the DS-7116HGHI-M1 fits easily into confined spaces while providing professional-grade performance. It’s ideal for installations where space-saving hardware is critical.

Product Specifications

Motion Detection 2.0

• Deep learning-based human/vehicle classification
• Reduces false alarms from irrelevant motion
• Quick search by object or event type

Video and Audio

• IP Video Input: 2-ch (expandable up to 18-ch), up to 5 MP resolution
• Analog Video Input: 16-ch BNC, coaxitron supported
• Video Format: HDTVI, AHD, HDCVI, CVBS
• HDMI Output: 1-ch, up to 1920 × 1080 @ 60Hz
• VGA Output: 1-ch, up to 1920 × 1080 @ 60Hz
• Audio Input: 1-ch RCA, plus 16-ch via coaxial
• Audio Output: 1-ch RCA
• Two-way Audio: 1-ch RCA (shared with audio input)
• Synchronous Playback: 16-ch

Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Resolution Options: 1080p lite, 720p, VGA, WD1, 4CIF, CIF
• Frame Rate:
  • Main stream: 15 fps for HD input, 25/30 fps for SD
  • Sub-stream: 15 fps (HD), 25/30 fps (SD)
• Video Bitrate: 32 Kbps to 4 Mbps
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Network

• Total Bandwidth: 96 Mbps
• Remote Connections: Up to 128
• Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP, HTTPS, ONVIF
• Network Interface: 1 × RJ45 10M/100M Ethernet

Auxiliary Interfaces

• SATA: 1 interface, up to 6 TB capacity
• USB: 2 × USB 2.0

General

• Power Supply: 12 VDC, 2 A
• Power Consumption: ≤ 7 W (without HDD)
• Working Temperature: -10 °C to 55 °C
• Working Humidity: 10% to 90%
• Dimensions: 285 × 210 × 48 mm
• Weight: ≤ 1.8 kg (without HDD)
