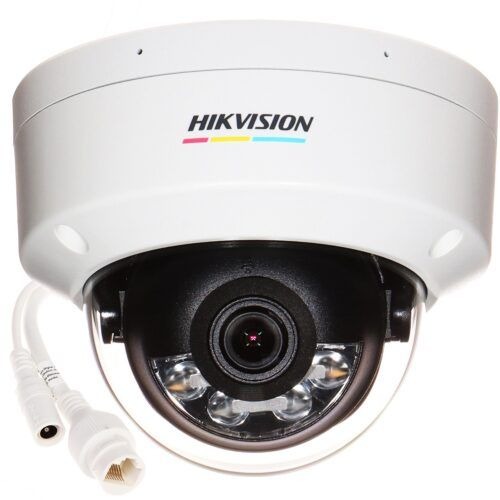

Hikvision DS-2CD1147G2H-LIU(2.8mm)(O-STD) 4MP Smart Hybrid Light ColorVu Camera

Hikvision DS-2CD1147G2H-LIU (2.8mm) 4MP Smart Hybrid Light ColorVu Camera is a high-performance dome security camera designed to deliver crystal-clear, full-color imaging 24/7. Powered by Hikvision’s advanced ColorVu technology, this camera ensures bright and vivid footage even in low-light conditions. The Smart Hybrid Light technology intelligently switches between warm white light and infrared illumination, optimizing visibility while reducing unnecessary light pollution. Featuring AI-powered human and vehicle detection, real-time audio monitoring, and H.265+ compression, this camera is an ideal choice for residential, commercial, and industrial surveillance applications.

Product Features

4MP Ultra HD ColorVu Imaging for Superior Clarity

Captures 2560 × 1440 resolution video with exceptional color accuracy and fine details, ensuring top-quality surveillance footage in all lighting conditions.

Smart Hybrid Light for Adaptive Illumination

Automatically switches between ColorVu warm white light and infrared mode, enhancing visibility while minimizing energy consumption and light pollution.

AI-Powered Human & Vehicle Detection

Equipped with deep-learning-based algorithms, the camera accurately identifies humans and vehicles, reducing false alarms caused by environmental motion.

Built-in Microphone for Real-Time Audio Monitoring

The high-sensitivity built-in microphone allows for clear and synchronized audio capture, adding an extra layer of security.

Wide 2.8mm Lens for Broad Coverage

The 2.8mm fixed lens offers an expansive field of view, making it suitable for monitoring entrances, offices, corridors, and open spaces.

H.265+ Video Compression for Optimized Storage

Supports H.265+ compression, effectively reducing bandwidth and storage consumption while maintaining high-quality video performance.

IP67 Weatherproof & IK10 Vandal-Resistant Design

With an IP67-rated housing, the camera is dustproof and waterproof, ensuring reliability in harsh outdoor environments. The IK10 vandal-resistant dome provides additional protection against physical impact and tampering.

Power over Ethernet (PoE) for Hassle-Free Installation

Supports PoE, enabling both power and data transmission through a single Ethernet cable, simplifying installation and reducing costs.

Multiple Storage Options for Secure Backup

Offers flexible storage solutions, including microSD card storage (up to 256GB), NVR recording, and cloud storage, ensuring secure and reliable video backup.

Product Specifications:

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Max Resolution: 2560 × 1440 (4MP)
• Lens: 2.8mm fixed lens
• Field of View (FOV): Horizontal: 103°, Vertical: 55°, Diagonal: 123°
• Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter with auto switch
• Digital Noise Reduction (DNR): 3D DNR
• WDR: 130 dB
• Video Compression: H.265+, H.265, H.264+, H.264
• Bit Rate: 32 Kbps to 8 Mbps
• Audio Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM
• Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• Storage: microSD/SDHC/SDXC card slot (up to 256 GB)
• Operating Conditions: -30°C to 60°C (-22°F to 140°F), Humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, PoE (802.3af, Class 3)
• Power Consumption: Max. 5.5 W
• Dimensions: Φ 111 × 82.4 mm (Φ 4.37″ × 3.24″)
• Weight: Approx. 470 g (1.04 lb)
