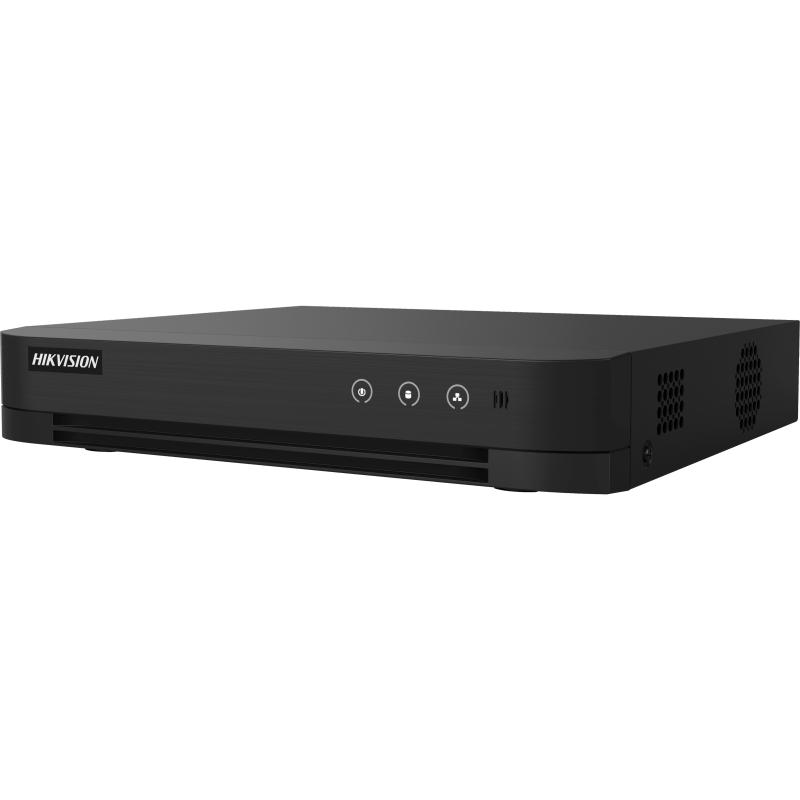

Hikvision 4 Channel DVR 720p Metallic (DS-7204HGHI-M1)

Hikvision DS-7204HGHI-M1 4 Channel 720p Metallic DVR is a reliable and cost-effective digital video recorder designed for small to medium surveillance systems. Built with a durable metallic casing, this DVR supports multiple camera technologies including HDTVI, AHD, CVI, CVBS, and IP, making it ideal for both new installations and system upgrades. It delivers real-time 720p recording across all channels and supports 1080p Lite encoding for enhanced image clarity. With advanced H.265+ compression, intelligent motion detection, and remote access via Hik-Connect, this DVR ensures efficient, secure, and flexible video monitoring for homes, offices, and retail environments.

Product Features

4-Channel Hybrid Video Input

Supports up to 4 analog cameras and additional IP cameras (up to 5 channels total), allowing flexible system expansion and hybrid surveillance setups.

H.265+ Video Compression

Advanced compression technology reduces bandwidth and storage usage while maintaining high-quality video output.

720p Real-Time Recording with 1080p Lite Support

Provides smooth 720p recording on all channels with enhanced 1080p Lite mode for improved image quality without heavy storage demands.

Deep Learning Motion Detection 2.0

Intelligent detection differentiates between humans and vehicles, significantly reducing false alarms caused by irrelevant motion.

Multi-Format Camera Compatibility

Compatible with HDTVI, AHD, HDCVI, CVBS, and IP cameras, making it suitable for diverse CCTV environments.

Remote Viewing via Hik-Connect

Enables live viewing, playback, and system management remotely through mobile devices or PCs using Hik-Connect.

HDMI and VGA Dual Output

Supports simultaneous HDMI and VGA outputs for flexible display options in monitoring setups.

Long-Distance Transmission

Supports HDTVI signal transmission up to 1200 meters for 720p video over coaxial cable.

Durable Metallic Design

Built with a robust metal casing for improved durability and heat dissipation in continuous operation environments.

Product Specifications

• Video input: 4-channel analog (BNC), expandable up to 5 IP channels
• Video compression: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
• Recording resolution: 720p, 1080p Lite
• Frame rate: Up to 25/30 fps
• Video output: HDMI and VGA (up to 1080p)
• Audio input: 1-channel RCA and 4-channel via coaxial cable
• Audio output: 1-channel RCA
• Storage: 1 SATA interface (up to 4TB–6TB depending on configuration)
• Network interface: 1 × RJ45 10/100 Mbps Ethernet
• USB ports: 2 × USB 2.0
• Remote access: Hik-Connect, DDNS support
• Playback: 4-channel synchronous playback
• Power supply: 12 VDC
• Power consumption: ≤16 W (without HDD)
• Operating temperature: -10°C to 55°C
• Dimensions: 260 × 222 × 45 mm
• Weight: ≤ 0.8 kg (without HDD)
