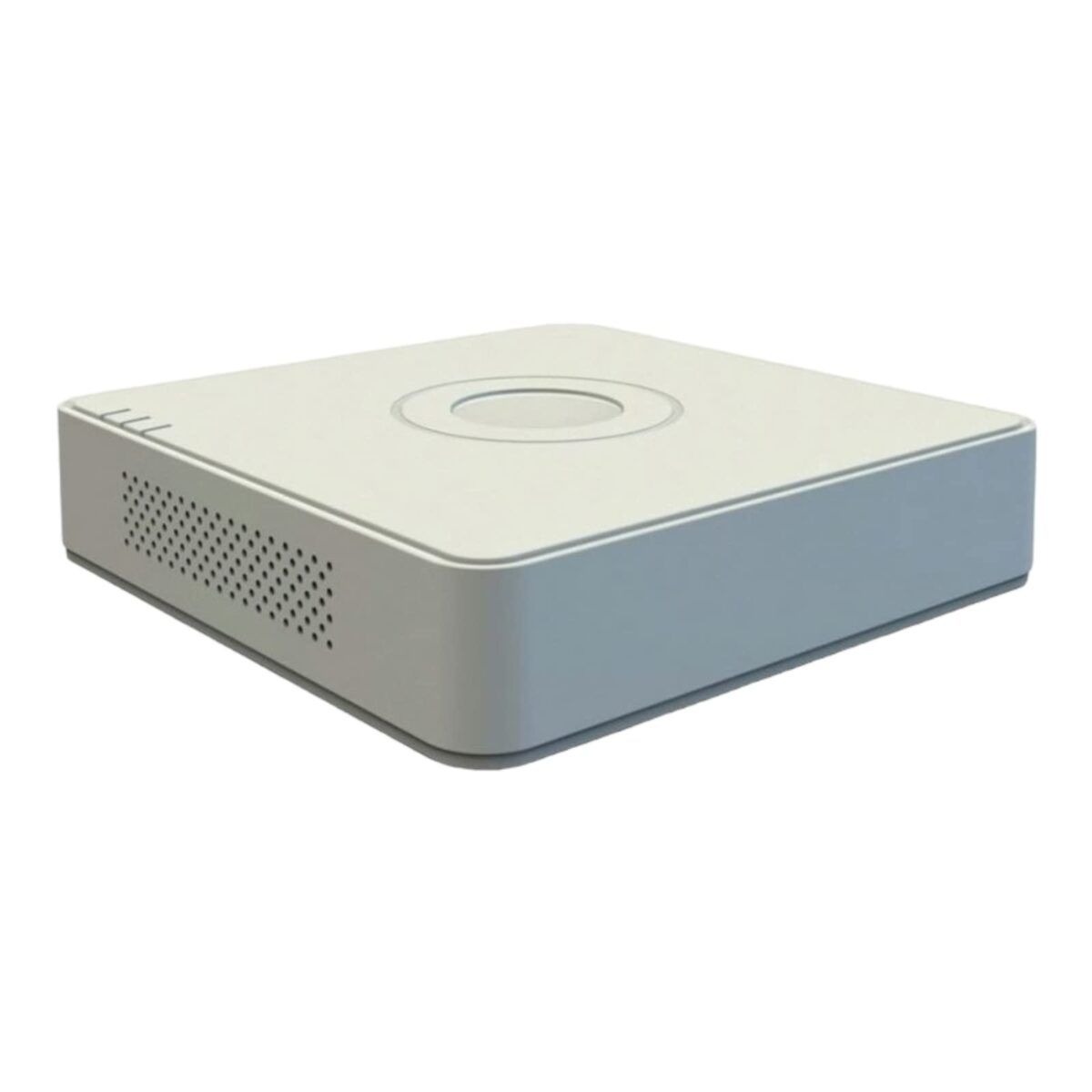

Hikvision 3K 4-Channel DVR 1HDD – iDS-7104HQHI-M1/S(STD)(C)

Hikvision iDS-7104HQHI-M1/S(STD)(C) is a compact and powerful 4-channel DVR designed for high-definition surveillance in residential and small commercial environments. Supporting up to 3K (5MP Lite) resolution, this DVR provides exceptional image clarity for precise security monitoring. It features advanced AI-powered smart motion detection, facial detection, and perimeter protection to accurately differentiate between humans, vehicles, and irrelevant motion. H.265+ compression optimizes bandwidth and storage usage, while multi-format camera compatibility and remote access through Hik-Connect make this DVR a versatile and intelligent solution for any modern surveillance setup.

Product Features

4-Channel 3K Resolution for High-Definition Surveillance

Supports up to 4 HD analog cameras with 3K (5MP Lite) resolution, ensuring superior image clarity for better identification of people, objects, and events.

H.265+ Video Compression for Efficient Storage

Advanced H.265+ compression reduces video file size and bandwidth usage, extending storage capacity while maintaining high-quality video playback.

AI-Powered Smart Motion Detection (SMD)

Utilizes deep learning technology to distinguish between humans and vehicles, drastically minimizing false alarms triggered by motion from animals, shadows, or weather elements.

HDMI & VGA Output for High-Quality Display

Offers HDMI and VGA video outputs with support for resolutions up to 2560×1440, enabling crisp, high-resolution playback on modern display monitors.

Remote Access & Mobile Viewing via Hik-Connect

Enables users to access live or recorded video remotely through the Hik-Connect app, offering real-time monitoring from any location using a smartphone, tablet, or PC.

Multi-Format Camera Compatibility

Supports TVI, AHD, CVI, and CVBS camera formats, allowing seamless integration with various analog camera technologies within one system.

Customizable Recording Modes

Choose from continuous, motion-triggered, or scheduled recording to match specific security needs and maximize hard drive usage.

Compact 1HDD 1U Design for Easy Installation

Space-saving form factor with support for one HDD (up to 10 TB) makes installation simple in limited-space environments while maintaining full DVR functionality.

Product Specifications

Motion Detection 2.0

• AI-based motion detection for all analog channels
• Human and vehicle classification
• Quick search by object type

Perimeter Protection

• Human/vehicle analysis supported on up to 2 channels

Facial Detection

• Face image detection and search functionality

Video and Audio

• IP Video Input: 1 (up to 5 channels), 2 (up to 6 channels with enhanced mode), up to 6 MP resolution
• Analog Video Input: 4 channels via BNC (coaxitron supported)
• Supported Analog Formats: TVI, AHD, CVI, CVBS
• Video Output: HDMI/VGA (simultaneous), up to 1920 × 1080/60Hz
• Audio Input: 1 RCA + 4 channels via coaxial cable
• Audio Output: 1 RCA (linear, 1 KΩ)
• Two-Way Audio: Supported via first audio input
• Synchronous Playback: 4 channels

Recording

• Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
• Encoding Resolution:
  • Without 1080p Lite: Up to 3K/5MP Lite
  • With 1080p Lite: Includes 1080p Lite, 720p Lite, etc.
• Frame Rate:
  • 3K lite@12fps, 1080p@15fps, 720p@25/30fps (varies by format and mode)
• Sub-stream: WD1/4CIF@12fps; CIF@25/30fps
• Video Bitrate: 32 Kbps to 6 Mbps
• Dual-Stream: Supported
• Stream Types: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Network

• Remote Connections: Up to 32
• Total Bandwidth: 72 Mbps
• Protocols Supported: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
• Network Interface: 1 × RJ45 10/100 Mbps Ethernet
• Wi-Fi: Supported via USB Wi-Fi dongle

Auxiliary Interfaces

• SATA: 1 interface, up to 10 TB HDD
• USB: 2 × USB 2.0 (rear panel)
• Alarm I/O: Not available

General

• Power Supply: 12 VDC, 1.5 A
• Power Consumption: ≤ 8 W (without HDD)
• Operating Temperature: -10 °C to +55 °C
• Humidity: 10% to 90%
• Dimensions: 200 × 200 × 48 mm
• Weight: ≤ 1 kg (without HDD)
