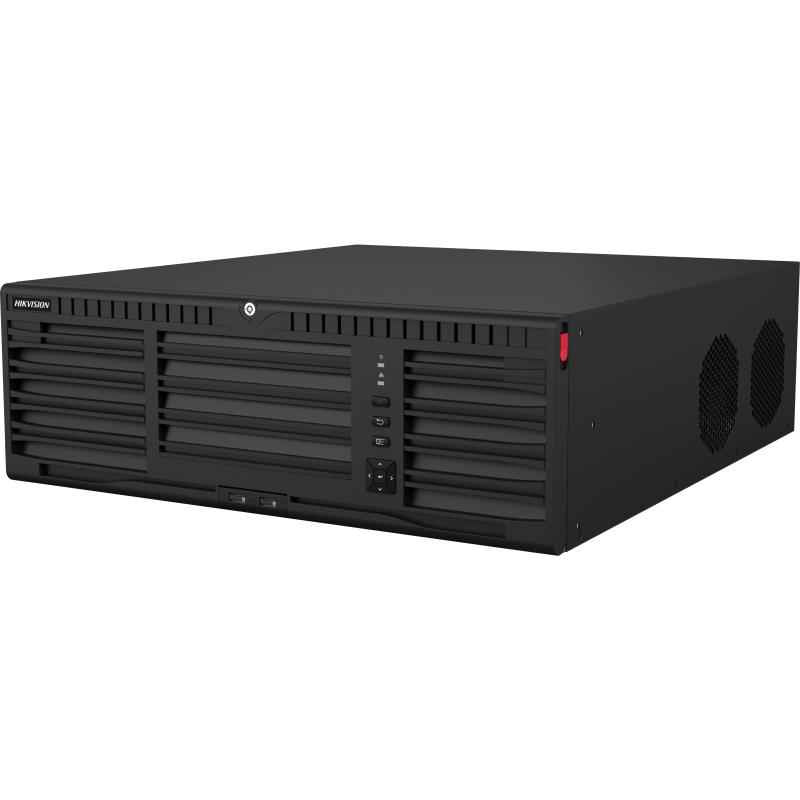

Hikvision 128 channel NVR- DS-96128NI-M16

Hikvision DS-96128NI-M16 128-Channel 3U 4K/8K H.265 NVR is an enterprise-grade network video recorder designed for ultra-large surveillance deployments. Built to handle up to 128 IP cameras, this high-performance NVR delivers ultra-high-definition recording up to 32MP and supports 8K video output for advanced monitoring environments. With massive bandwidth capacity, RAID-supported storage with up to 16 hard drives, and powerful decoding capabilities, it is ideal for airports, city surveillance, campuses, and industrial facilities. Advanced H.265+ compression, dual network interfaces, and intelligent system reliability features ensure efficient, secure, and scalable video management.

Product Features

128-Channel IP Camera Support

Supports up to 128 IP cameras, making it suitable for large-scale and enterprise-level surveillance systems.

Ultra-High Resolution Recording up to 32MP

Capable of recording ultra-clear video up to 32MP resolution, ensuring maximum detail for critical security applications.

8K and Dual 4K Video Output

Features dual HDMI outputs with support for 8K and dual 4K display, enabling high-resolution monitoring and video wall setups.

High Bandwidth Capacity

Supports up to 400 Mbps incoming and outgoing bandwidth, ensuring smooth data transmission for multiple high-resolution streams.

Advanced Decoding Performance

Powerful decoding allows playback of multiple high-resolution streams simultaneously, including 32MP, 8MP, and 1080p channels.

H.265+ Video Compression

Reduces storage requirements and bandwidth usage while maintaining high-quality video output.

Massive Storage with RAID Support

Equipped with 16 SATA interfaces supporting large-capacity HDDs and RAID 0, 1, 5, 6, and 10 for enhanced data protection and reliability.

Dual Gigabit Network Interfaces

Includes two RJ45 Gigabit Ethernet ports for improved network performance and redundancy.

Advanced Integration Support

Compatible with specialized cameras such as ANPR, fisheye, and people-counting cameras for intelligent surveillance solutions.

Reliable Enterprise Design

3U rackmount chassis with redundant power options and hot-swappable storage ensures stable 24/7 operation in mission-critical environments.

Product Specifications

• Video input: 128-channel IP cameras
• Incoming bandwidth: Up to 400 Mbps
• Outgoing bandwidth: Up to 400 Mbps
• Video compression: H.265+, H.265, H.264+, H.264
• Recording resolution: Up to 32MP
• HDMI output: 2 channels (up to 8K and 4K)
• VGA output: 2 channels (up to 1080p)
• CVBS output: 1 channel (BNC)
• Audio input: 1 × RCA
• Audio output: 2 × RCA
• Two-way audio: Supported
• Decoding capability: Up to 2-ch 32MP / 8-ch 8MP / 32-ch 1080p
• Storage: 16 SATA interfaces (up to 16TB per HDD typical)
• eSATA: 1 interface
• RAID support: RAID 0, 1, 5, 6, 10
• Network interface: 2 × RJ45 Gigabit Ethernet
• USB ports: 2 × USB 2.0 (front), 2 × USB 3.0 (rear)
• Alarm input/output: 16/9
• Power supply: 100–240 VAC
• Power consumption: ≤ 50 W (without HDD)
• Operating temperature: -10°C to 55°C
• Chassis: 3U rackmount
• Dimensions: 445 × 496 × 150 mm
• Weight: ≤ 12.5 kg (without HDD)
