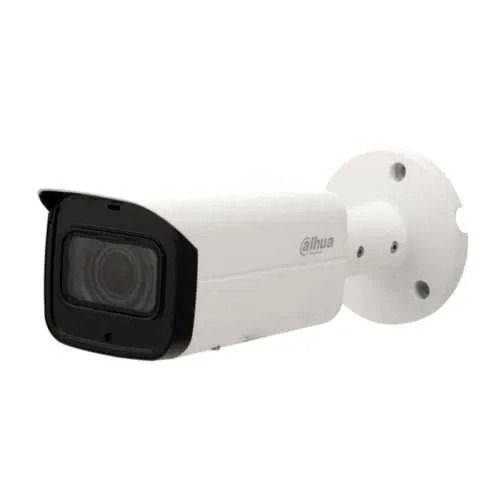

Dahua HAC-HFW1200THP-A-0360B-S4 2MP HDCVI IR Bullet Camera

Dahua HAC-HFW1200THP-A-0360B-S4 2MP HDCVI IR Bullet Camera with Audio is a high-performance security camera that combines full HD video resolution with integrated audio capabilities for enhanced surveillance. Featuring a robust 2MP CMOS image sensor, Smart IR for superior night vision up to 80 meters, and multi-format compatibility, this camera is ideal for monitoring residential, commercial, and industrial spaces. Its durable design with IP67 protection ensures reliable performance in both indoor and outdoor environments.

Product Features

2MP CMOS Image Sensor for Crisp HD Video

Capture clear and detailed footage with the 1/2.7-inch 2MP CMOS image sensor, offering a resolution of 1920 × 1080 pixels. Progressive scanning ensures smooth and distortion-free video quality.

Built-In Audio for Enhanced Security

The camera comes with a built-in microphone, enabling high-quality audio recording alongside video. This added layer of surveillance helps capture contextual information for improved situational awareness.

Long-Range Night Vision with Smart IR

Equipped with Smart IR technology, the camera provides clear visibility up to 80 meters in complete darkness. This advanced feature prevents overexposure of objects close to the camera, delivering balanced night-time footage.

Wide Compatibility with Multi-Format Support

This camera supports CVI, AHD, TVI, and CVBS formats, making it versatile and compatible with various DVR systems for seamless integration.

Durable Design with IP67 Rating

The rugged design features a metal front cover and a durable plastic body, with IP67-rated protection against water and dust. This makes the camera suitable for outdoor installations in harsh weather conditions.

Wide Field of View with Fixed Lens Options

Available with a 3.6mm fixed lens, the camera provides a horizontal field of view of 100° for comprehensive coverage. Additional focal length options (2.8mm, 6mm, 8mm) offer flexibility for specific surveillance needs.

Energy-Efficient Operation

Operating on a 12V ±30% DC power supply, the camera consumes a maximum of 4.9W with IR on, making it energy-efficient for continuous monitoring.

Product Specifications

Camera

• Image Sensor: 1/2.7-inch 2MP CMOS
• Resolution: 1920 (H) × 1080 (V), 2MP
• Minimum Illumination: 0.02Lux/F1.9, 30IRE, 0Lux IR on
• IR Distance: Up to 80 meters
• IR Control: Auto; manual
• IR LED Number: 2
• Pan/Tilt/Rotation Range:
  • Pan: 0°–360°
  • Tilt: 0°–180°
  • Rotation: 0°–360°

Lens

• Lens Type: Fixed-focal
• Focal Length: 3.6mm (optional: 2.8mm, 6mm, 8mm)
• Field of View:
  • 3.6mm: Horizontal 100°; Vertical 45°
• Close Focus Distance: 0.8m (2.6 ft)

Video

• Frame Rate:
  • CVI: 1080P@25/30fps, 720P@25/30fps, 720P@50/60fps
  • AHD/TVI: 1080P@25/30fps, 720P@25/30fps
  • CVBS: 960H
• Day/Night: Auto switch with IR-CUT filter
• Imaging Enhancements: DWDR, BLC, HLC, 2D NR, Smart IR

Audio

• Built-In Microphone: Yes

Environmental

• Operating Temperature: -40°C to +60°C (-40°F to 140°F)
• Storage Temperature: -40°C to +60°C (-40°F to 140°F)
• Protection Grade: IP67

Power

• Power Supply: 12V ±30% DC
• Power Consumption: Max 4.9W (IR on)

Physical

• Casing: Metal front cover with plastic body
• Dimensions: 240.7mm × 90.7mm × 90.4mm (9.48″ × 3.57″ × 3.56″)
• Net Weight: 0.41kg (0.90 lbs)
