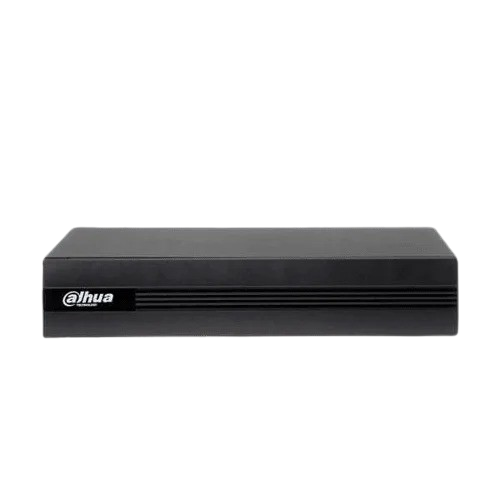

Dahua DH-XVR1A08 8 Channel Penta-brid Digital Video Recorder

Dahua DH-XVR1A08 8 Channel Penta-brid DVR is a feature-rich and versatile device designed for small to medium-scale surveillance applications. Part of Dahua’s Cooper Series, this DVR provides seamless compatibility with multiple video formats, including HDCVI, AHD, TVI, CVBS, and IP cameras, making it an excellent choice for upgrading or installing a new security system. With H.264 video compression, long-distance coaxial transmission, and support for up to 6TB of storage, it offers an efficient and user-friendly solution. Ideal for applications like retail stores, residential security, and small businesses, this DVR delivers high performance at a competitive price.

Product Features

H.264 Video Compression for Efficiency

The DVR utilizes H.264 video compression technology, reducing bandwidth and storage usage without sacrificing video quality. This results in smoother video streaming and optimized storage management.

Multi-format Compatibility

Supporting HDCVI, AHD, TVI, CVBS, and IP video inputs, this Penta-brid DVR allows integration with a wide range of camera types, making it highly adaptable to diverse surveillance requirements.

Support for 8+2 IP Camera Channels

The DH-XVR1A08 supports up to 8 analog channels and 2 additional IP camera channels, with resolutions up to 5MP per channel. Its 40Mbps incoming bandwidth ensures reliable and high-quality video streaming.

Long-distance Coaxial Cable Transmission

Engineered for long-distance video transmission over coaxial cables, this DVR provides robust performance in installations where cameras are far from the central recording unit.

High-capacity Storage Support

The DVR is equipped with a SATA interface that supports one HDD with a capacity of up to 6TB, offering sufficient space for high-resolution video recordings and extended retention periods.

Simple and Cost-effective Installation

Designed for ease of use, the Cooper Series supports existing analog infrastructure, reducing setup costs and installation time. It’s a great option for users looking for a cost-effective solution without compromising quality.

Product Specifications

• Model: Dahua DH-XVR1A08
• Video Compression: H.264
• Supported Video Inputs: HDCVI, AHD, TVI, CVBS, IP
• IP Camera Support: 8 analog + 2 IP channels, up to 5MP resolution
• Max Incoming Bandwidth: 40Mbps
• Transmission Distance: Long-range via coaxial cable
• Storage: 1 SATA HDD, up to 6TB capacity
• Applications: Residential security, retail, small business surveillance
