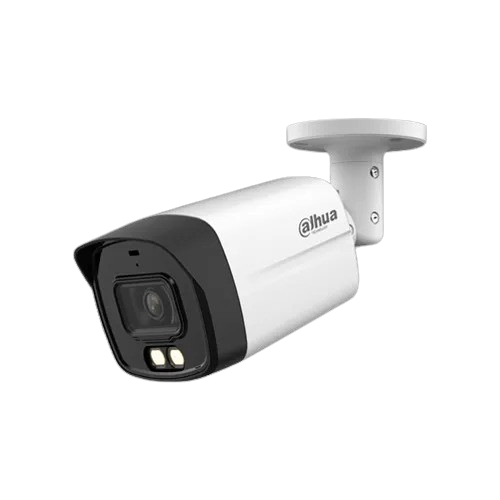

Dahua DH-HAC-HFW1200TLMP-IL-A 2MP Smart Bullet Camera

Dahua DH-HAC-HFW1200TLMP-IL-A is a 2MP Smart Bullet Camera designed to offer high-definition video surveillance with superior illumination features. Equipped with a 2MP CMOS sensor, this camera delivers clear 1080p resolution images, even in low-light conditions, thanks to its dual light system. The combination of infrared (IR) and warm white light ensures that the camera provides both black-and-white and full-color footage in varying lighting environments. With its wide dynamic range (DWDR) technology, high-performance imaging, and rugged build, this camera is an ideal solution for securing both indoor and outdoor areas, providing reliable monitoring 24/7.

Product Features

2MP CMOS Image Sensor

The Dahua DH-HAC-HFW1200TLMP-IL-A features a 2MP CMOS sensor, delivering crisp, high-quality images with a maximum resolution of 1920 × 1080 (1080p). This ensures that users can capture fine details of their surveillance area, helping to clearly identify faces, vehicles, and other objects in the environment.

Dual Light Illumination (IR & Warm Light)

The camera’s dual light system offers both infrared (IR) and warm white light, providing reliable illumination for day and night monitoring. In complete darkness, the IR light allows for black-and-white footage, while the warm light ensures full-color images in low-light environments, giving you versatility in your surveillance setup.

Wide Dynamic Range (DWDR)

With Digital Wide Dynamic Range (DWDR), the DH-HAC-HFW1200TLMP-IL-A balances high-contrast scenes, ensuring clear video in environments with both bright and dark areas. This makes it perfect for entrances, parking lots, or areas where lighting conditions fluctuate throughout the day.

Fixed Lens with Flexible Field of View

The camera offers fixed-focal lens options of 2.8mm and 3.6mm, giving flexibility in surveillance coverage. The 2.8mm lens provides a wide field of view (102° horizontal, 60° vertical), while the 3.6mm lens offers a more focused angle (83° horizontal, 48° vertical), ensuring optimal coverage depending on the desired area.

Smart IR & Warm Light Mode

The camera integrates Smart IR technology, which adjusts infrared light intensity for optimal image quality at night. The warm light mode ensures that the camera provides color images in low-light conditions, making it perfect for monitoring areas like parking lots or building exteriors.

IP67 Weatherproof Rating

Built with an IP67 weatherproof rating, this camera is dustproof and waterproof, making it highly reliable in all weather conditions. Whether exposed to rain, snow, or extreme temperatures, the DH-HAC-HFW1200TLMP-IL-A continues to deliver clear, high-quality footage.

Product Specifications

• Image Sensor: 2MP CMOS
• Max. Resolution: 1920 × 1080 (1080p)
• Scanning System: Progressive
• Shutter Speed: PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s
• Min. Illumination:
  • 0.01 lux @ F2.0 (Color, 30 IRE)
  • 0.001 lux @ F2.0 (B/W, 30 IRE)
  • 0 lux (Illuminator on)
• S/N Ratio: >65 dB
• Illumination Distance:
  • IR: 40m (131.23 ft)
  • Warm Light: 40m (131.23 ft)
• Illuminator On/Off Control: Auto
• Illuminator Number: 2 (Warm light); 2 (IR light)
• Lens: Fixed-focal (2.8mm / 3.6mm)
• Field of View (2.8mm):
  • H: 102°; V: 60°; D: 129°
• Field of View (3.6mm):
  • H: 83°; V: 48°; D: 105°
• Wide Dynamic Range: DWDR
• White Balance: Auto-Area white balance
• Noise Reduction: 3D NR
• Power Supply: 12VDC ± 30%
• Power Consumption: Max. 4.1W (12VDC, IR on)
• Video Output: CVI/TVI/AHD/CVBS via BNC
• Illumination Modes: Smart IR, Smart WL, IR Mode
• Mounting: Wall mount, ceiling mount, vertical pole mount
• Weatherproof Rating: IP67 (dustproof, waterproof)
• Operating Temperature: -40°C to +60°C (-40°F to +140°F)
• Dimensions: 198.4mm × 80.2mm × 76.2mm (7.81″ × 3.16″ × 3″)
• Weight: 0.29 kg (0.64 lb) (net)
• Certifications: CE-LVD, CE-EMC, FCC, UL
