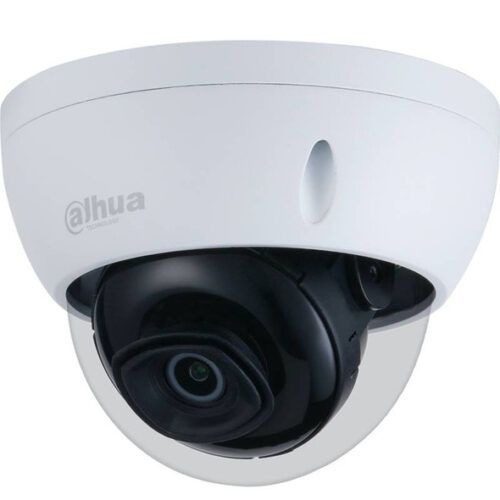

Dahua 8MP Lite IR Vari-focal Dome Network Camera (DH-IPC-HDBW2831RP-ZS-27135-S2)

Dahua DH-IPC-HDBW2831RP-ZS-27135-S2 is an advanced 8MP Lite IR varifocal dome network camera designed for high-resolution surveillance. Equipped with an 8MP (4K UHD) sensor, this camera offers superior video quality, ensuring that all fine details are captured, making it an ideal solution for both residential and commercial applications. The camera features a varifocal lens (2.7mm to 13.5mm), allowing users to adjust the focal length to meet different viewing requirements. This flexibility is particularly useful for covering both wide areas and specific focus points. The camera also includes Smart IR technology, which enhances performance in low-light environments, providing clear footage up to 60 meters (197 feet) in complete darkness. Whether used indoors or outdoors, the camera is built to withstand harsh environments, with IP67 weatherproofing and IK10 vandal resistance for robust protection.

Product Features

High-Resolution 8MP Video

The Dahua DH-IPC-HDBW2831RP-ZS-27135-S2 delivers 8MP video (3840×2160), offering crisp, detailed footage ideal for monitoring large areas or capturing fine details. This high resolution allows for clearer identification of people, objects, and events, especially in critical surveillance zones.

Flexible Varifocal Lens

This camera is equipped with a 2.7mm to 13.5mm varifocal lens, providing versatile coverage options. Users can adjust the focal length to capture wide-angle views or zoom in on specific areas, making it suitable for a range of surveillance environments, from open spaces to focused points.

Enhanced Night Vision with Smart IR

The Smart IR technology ensures optimal image quality in low-light conditions. The camera’s infrared (IR) illumination reaches up to 60 meters (197 feet), allowing for clear, detailed night-time video even in complete darkness. This feature is essential for around-the-clock surveillance in both well-lit and dark environments.

Robust Environmental Protection

Designed for outdoor use, the DH-IPC-HDBW2831RP-ZS-27135-S2 features IP67 protection, making it resistant to dust and water, and allowing it to withstand harsh weather conditions. The camera also has IK10 vandal resistance, providing durability against physical impacts, and ensuring longevity in high-risk locations.

Product Specifications

General Information

• Device Type: Dome Network Camera
• Connection Type: Wired
• Installation Location: Indoor/Outdoor
• Matrix Resolution: 8MP (3840×2160)
• Power Supply: 12V DC / PoE (802.3af)
• Power Consumption: 7.5W

Camera Features

• Lens Type: Varifocal
• Focal Length: 2.7mm to 13.5mm
• Field of View: 2.7mm: 112°; 13.5mm: 28°
• IR Distance: Up to 60 meters (197 feet)
• Day/Night Mode: Auto (ICR), Color, B/W
• Minimum Illumination: 0.005 Lux (color), 0 Lux (IR on)
• Smart IR: Yes
• Video Compression: H.265, H.264, MJPEG
• Video Frame Rate: Main stream: 3840×2160 (1–25/30 fps), Sub stream: 704×576 (1–25 fps)

Network and Storage

• Network Interface: RJ-45 (10/100 Base-T)
• Protocols: IPv4, IPv6, HTTP, HTTPS, RTSP, FTP, DHCP, DNS, NTP, ONVIF, P2P
• Edge Storage: MicroSD (up to 256GB), FTP
• ONVIF Profile: S/G/T

Environmental Protection

• Ingress Protection: IP67 (Water and Dust Resistance)
• Vandal Protection: IK10 (Impact Resistance)
• Operating Temperature: -30°C to +60°C
• Storage Temperature: -40°C to +60°C

Physical Specifications

• Body Material: Metal
• Dimensions: 105mm × 105mm × 129mm
• Weight: 800g (1.76 lbs)
