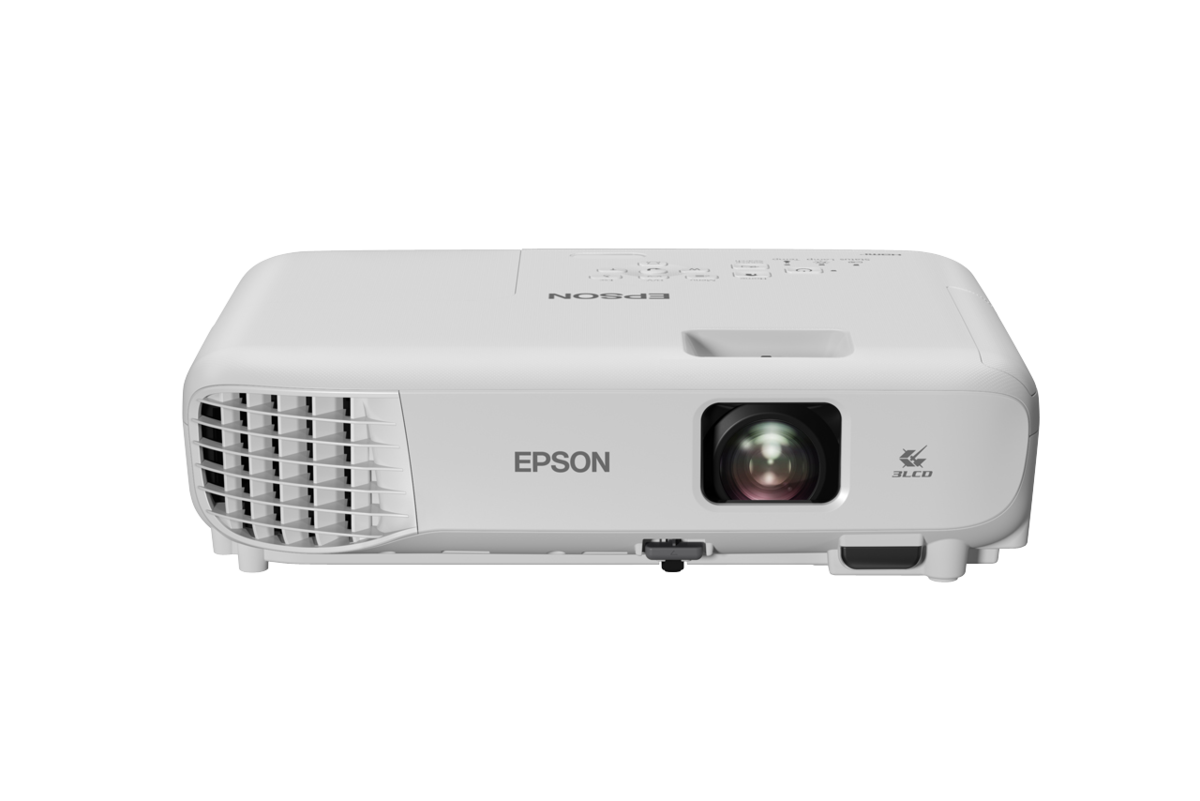

Epson EB‑E12 XGA 3LCD Projector (V11HB55052)

Epson EB‑E12 XGA 3LCD Projector delivers 3,600 lumens of color and white brightness with a 15,000:1 contrast ratio, making it an ideal solution for classrooms, small meeting rooms, and corporate presentations seeking vibrant, clear imagery. Equipped with long lamp life in eco mode, flexible connectivity and intuitive setup, the EB‑E12 ensures reliable performance and low cost of ownership in modern workspaces.

Product Features

High-brightness 3LCD imaging

Projects equally bright white and color images with 3,600 lumens, ensuring sharp visuals even in well-lit environments.

XGA resolution clarity

With a native resolution of 1024 × 768 (XGA), it delivers detailed presentations and text legibility on screen sizes up to 300 inches.

Long lamp life in Eco mode

In Eco mode, the lamp lasts up to 12,000 hours, reducing maintenance and lowering total cost of ownership.

Split screen and multi-source support

Allows simultaneous projection from two devices side‑by‑side, enhancing productivity during meetings and classrooms.

Keystone correction and easy setup

Offers vertical and horizontal keystone adjustment of ±30° and instant auto source detection for hassle‑free installation.son

Compact and portable design

Lightweight at approximately 2.4 kg with a slim form factor, the EB‑E12 is easy to move between rooms or locations.

Product Specifications

• Projection technology: RGB liquid crystal shutter (3LCD)
• Resolution: XGA (1024 × 768), aspect ratio 4:3
• Brightness (White/Color): 3,600 lm (Normal) / 2,200 lm (Eco)
• Contrast ratio: 15,000:1
• Lamp life: 6,000 hours (Normal), 12,000 hours (Eco)
• Throw ratio: 1.44–2.88; projected screen size range 30″–350″
• Keystone correction: Vertical ±30°, Horizontal ±30°

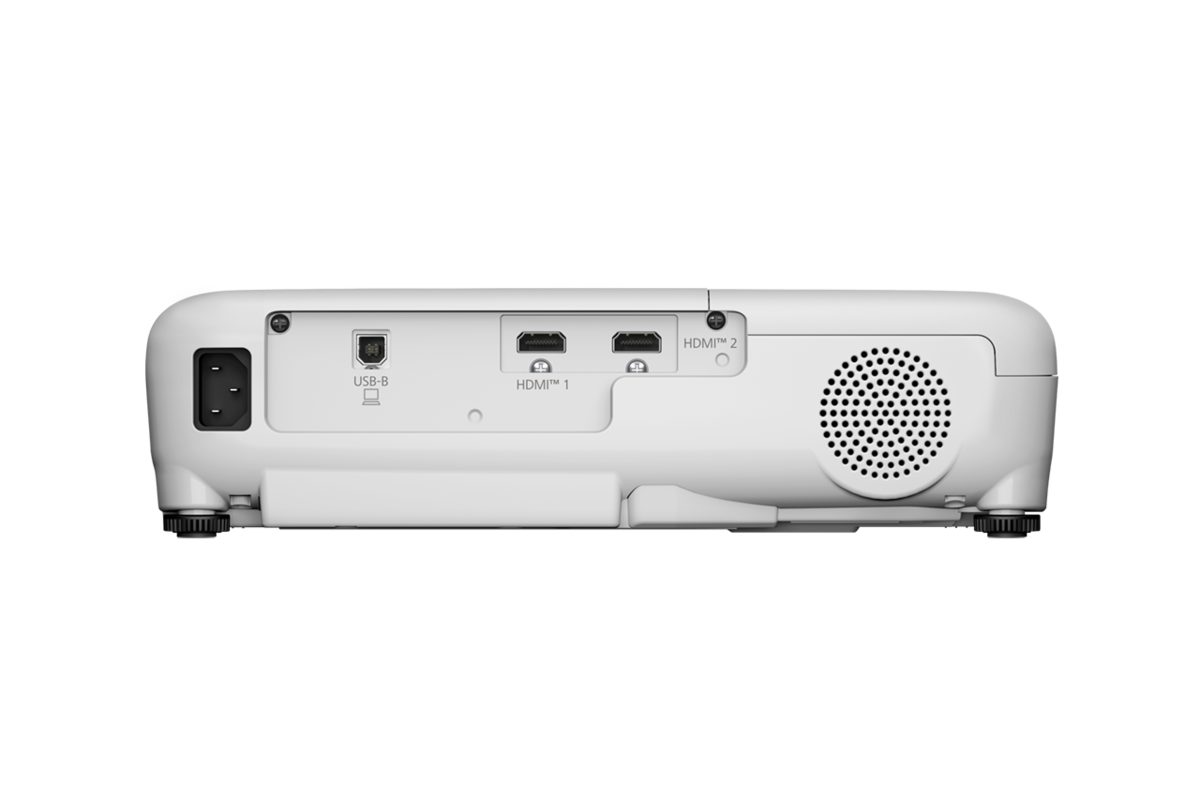

• Connectivity: 2 × HDMI (Type A, HDCP 1.4), USB‑B for firmware/OSD, no analog VGA
• Built‑in speaker: Monaural 2 W × 1
• Operating temperature: 5°C–40°C (low altitude); humidity 20–80%
• Weight: Approx. 2.4 kg
• Fan noise: 37 dB (Normal) / 28 dB (Eco)
• Power consumption: Lamp 332 W (Normal), 231 W (Eco); standby 0.3 W
• Power supply voltage: 100–240 V AC, 50/60 Hz
• Start‑up time: <7 s with Epson logo; warm‑up ~30 s
• Cool‑down: Instant Off
• Maintenance cycle for air filter: 6,000 hours (Normal), 12,000 hours (Eco)
• Direct power on/off supported
• Dimensions (W × D × H): 302 × 234 × 77 mm
• Supplied accessories: Power cable, remote control (with batteries), user guide
• Optional accessories: Spare lamp (ELPLP97), air filter (ELPAF32), carrying case, ceiling mount, document camera, wireless modules as applicable
