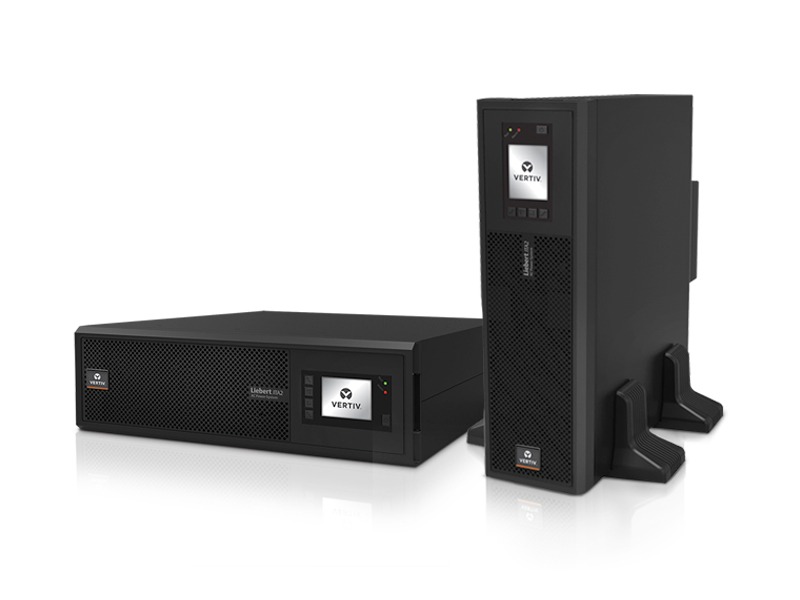

Vertiv ITA2 1ph online UPS 10kVA Rack tower

Vertiv Liebert ITA2 10KVA Rack Tower Online UPS is an enterprise-grade uninterruptible power supply engineered to provide continuous and reliable power protection for critical IT infrastructure, servers, networking equipment, telecom systems, and industrial applications. Built with true online double-conversion technology, the UPS delivers clean sine wave output while safeguarding connected equipment from power outages, voltage fluctuations, surges, harmonics, and electrical noise. Its rack/tower convertible design, high efficiency operation, scalable runtime support, and advanced monitoring capabilities make it ideal for modern data centers and mission-critical environments.

Product Features

True Online Double Conversion Technology

The Liebert ITA2 continuously converts incoming AC power to DC and back to AC, ensuring uninterrupted clean power delivery and maximum protection for sensitive electronic equipment.

10KVA High Capacity Power Protection

With a 10KVA / 10kW power rating, the UPS supports demanding IT and industrial loads including servers, storage systems, virtualization environments, telecom infrastructure, and critical business systems.

Rack Mount and Tower Convertible Design

The versatile form factor allows deployment either in standard server racks or as a standalone tower unit, providing installation flexibility for data centers and server rooms.

High Operating Efficiency

Delivers efficiency levels above 93% in online mode and up to 99% in ECO mode, helping reduce operating costs, heat generation, and energy consumption.

Wide Input Voltage Range

Supports stable operation under fluctuating utility power conditions without frequently switching to battery mode, extending battery lifespan and ensuring reliable performance.

Advanced Battery Management

Intelligent charging and monitoring technology optimizes battery health, improves runtime reliability, and reduces maintenance requirements. External battery cabinets are supported for extended backup durations.

Intuitive LCD Monitoring Interface

Features a color LCD display for real-time monitoring of UPS status, battery condition, alarms, load levels, and input/output electrical parameters.

Remote Network Management Support

Supports USB, RS232, SNMP, and network management integration for centralized UPS monitoring and remote administration in enterprise environments.

Enterprise-Grade Reliability

Widely recognized in server room and data center deployments for dependable performance and long-term reliability in critical applications.

Product Specifications

• Brand: Vertiv
• Product Series: Liebert ITA2
• UPS Type: Online Double Conversion UPS
• Capacity: 10KVA / 10kW
• Form Factor: Rack Mount / Tower Convertible
• Topology: True Online Double Conversion
• Input Phase: Single Phase
• Output Phase: Single Phase
• Output Waveform: Pure Sine Wave
• Output Power Factor: 1.0
• Input Voltage: 208/220VAC
• Output Voltage:
  • 208V
  • 220V
  • 230V
  • 240V selectable
• Frequency Range: 40Hz – 70Hz
• Input Power Factor:
  • ≥0.99 at full load
  • ≥0.98 at half load
• Efficiency:
  • Up to 93% in online mode
  • Up to 99% in ECO mode
• Voltage Harmonic Distortion:
  • <4% linear load
  • <5% non-linear load
• Crest Factor: 3:1
• Battery Type:
  • VRLA sealed lead-acid
  • Optional lithium-ion battery support
• Battery Expansion: External battery cabinet support
• Communication Interfaces:
  • USB
  • RS232
  • SNMP (optional)
  • Network management support
• Display Type: Color LCD display
• Cooling System: Intelligent fan cooling
• Protection Features:
  • Overload protection
  • Short circuit protection
  • Surge protection
  • Over-voltage protection
  • Under-voltage protection
  • Battery discharge protection
• Noise Level: Approximately 55dB
• Cabinet Type: Rack/Tower NEMA Type 1 enclosure
• Installation Type: Rack Mountable / Tower
• Applications:
  • Data centers
  • Servers
  • Telecom systems
  • Network infrastructure
  • Industrial systems
  • Medical equipment
  • Security systems
