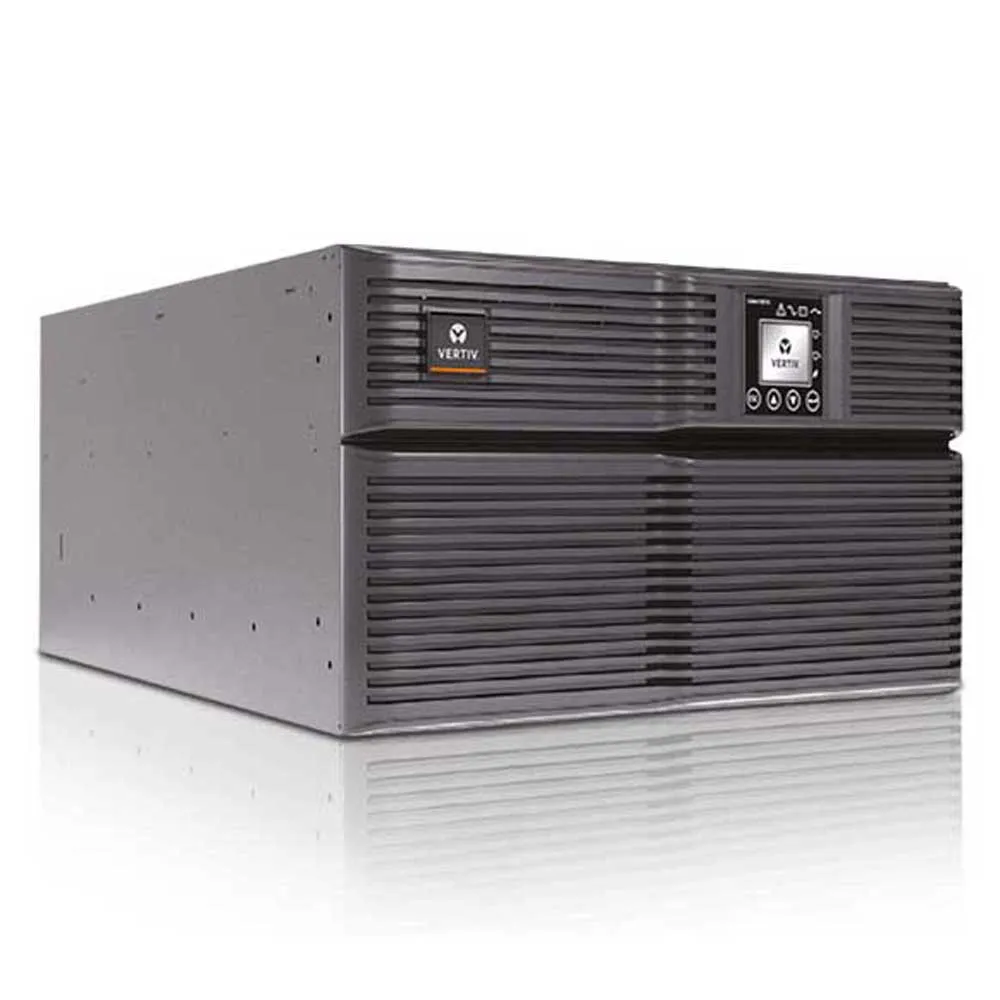

Liebert GXT4 10000VA (9000W) 230V Rack/Tower UPS (GXT4-10KRT230E)

Liebert GXT4 10kVA UPS (GXT4-10KRT230E) is an enterprise-grade Power Back-up UPS designed to deliver continuous, clean power to mission-critical applications. With true double-conversion online technology, 10kVA/9000W output, and high efficiency, it’s ideal for data centers, medical systems, telecom networks, and industrial control environments. This Uninterruptible Power Supply in Kenya ensures zero transfer time, hot-swappable batteries, and flexible rack/tower deployment, making it one of the most versatile power protection solutions in its class.

Product Features

True online double-conversion
Maintains continuous and conditioned power delivery, protecting equipment from outages, surges, and voltage fluctuations with zero transfer time.

10kVA / 9000W output capacity
High power density with a unity power factor supports demanding applications including large IT loads and sensitive medical or industrial equipment.

Wide input voltage range
Operates reliably across 176V–300V without switching to battery, ideal for regions with unstable mains supply.

Pure sine wave output
Ensures clean, reliable power for equipment requiring high-quality power input like active PFC power supplies.

3U Rack/Tower convertible form factor
Compact and adaptable to standard 19” racks or floor-standing tower setups, depending on site requirements.

Hot-swappable batteries
Facilitates battery replacement without powering down connected equipment, ensuring continuous uptime.

High efficiency performance
Achieves up to 94% in online mode and 98% in eco mode, reducing energy losses and lowering operating costs.

Scalable runtime
Compatible with external battery cabinets to extend backup time beyond 10 minutes at full load.

Advanced LCD interface
Provides real-time monitoring of input/output voltage, load levels, battery status, and alarms for efficient system management.

Multiple output options
Equipped with 6 × IEC C13, 2 × IEC C19 outlets, plus hardwired connections to support diverse load requirements.

Remote monitoring capability
Supports USB, RS-232, and SNMP interfaces for seamless integration into network management platforms like Liebert Nform.

Product Specifications

• UPS Topology: Online Double Conversion
• Output Power: 10kVA / 9000W
• Nominal Input Voltage: 230V AC
• Input Voltage Range: 176V – 300V
• Input Frequency: 40Hz – 70Hz (auto-sensing)
• Input Connection: IEC C14 or Hardwired

Output Specifications

• Nominal Output Voltage: 230V AC (±1%)
• Frequency: 50Hz/60Hz ±0.05Hz (battery mode)
• Waveform: Pure Sine Wave
• Output Connections:
  • 6 × IEC C13
  • 2 × IEC C19
  • Hardwired terminal
• Overload Handling:
  • 105%–125% for 1 minute
  • 125% for 10 seconds
• Transfer Time: 0ms

Battery & Runtime

• Battery Type: Sealed, maintenance-free lead-acid
• Battery Configuration: Hot-swappable
• Backup Time at Full Load: ~10 minutes
• Recharge Time: <4 hours to 90%
• Battery Management: Intelligent monitoring, temperature compensation

Physical Specifications

• Form Factor: 3U Rack / Tower Convertible
• Dimensions (W × D × H):
  • Rack: 440 × 610 × 130 mm
  • Tower: 440 × 610 × 280 mm
• Weight: 21.3 kg
• Rack Mount Kit: Included
• Cooling: Fan-assisted
• Noise Level: <55 dB at 1 meter

Communication & Management

• Ports:
  • USB
  • RS-232
  • Relay Logic Port
  • Intelligent Slot for SNMP/Network Management
• LCD Display:
  • Real-time display of status, battery, voltage, load, and alarms
• Software Support:
  • Compatible with Liebert Nform and third-party SNMP platforms

Environmental Conditions

• Operating Temp: 0°C to 40°C
• Storage Temp: -15°C to 50°C
• Humidity: 0%–95% (non-condensing)
• Altitude: Up to 3000m
• Certifications: CE, UL, RoHS

Ideal Applications

• Data Centers: Reliable UPS backup for servers, switches, and critical IT infrastructure.
• Telecommunication Systems: Maintains continuous power for routers, base stations, and network cores.
• Medical Equipment: Ensures uninterrupted power for diagnostic, monitoring, and life-support systems.
• Industrial Automation: Supports programmable controllers and manufacturing devices.
• Enterprise IT & Office Infrastructure: Keeps productivity and data integrity intact during power disruptions.

Key Benefits

• Zero transfer time for uninterrupted power
• Compact 3U size for space-constrained deployments
• Quiet operation for office or medical environments
• Comprehensive surge and short-circuit protection
• Remote management for IT administrators
• Scalable power backup with external battery options
