APC SMART-UPS RT 10KVA 230V (SRTG10KXLI)

APC Smart-UPS RT 10kVA 230V (SRTG10KXLI) is a double-conversion online Uninterruptible Power Supply in Kenya engineered for high-performance environments requiring constant, clean, and uninterrupted power. With a full 10,000W output capacity and a unity power factor, it delivers dependable backup for servers, data centers, telecom systems, healthcare facilities, and industrial equipment. Featuring flexible installation, scalable runtime, and advanced remote management, this Power Back-up UPS ensures mission-critical systems remain online during power interruptions.

Product Features

Double-conversion online topology
Continuously converts incoming AC power to DC and back to AC, ensuring pure, consistent sine wave output regardless of input fluctuations.

10kW full-rated output with unity power factor
Delivers the full rated wattage (10,000W) to support high-density loads like blade servers, storage arrays, and industrial control systems.

Scalable runtime
Supports up to 4 external battery packs (model SRTG192XLBP4) for extended power backup during prolonged outages.

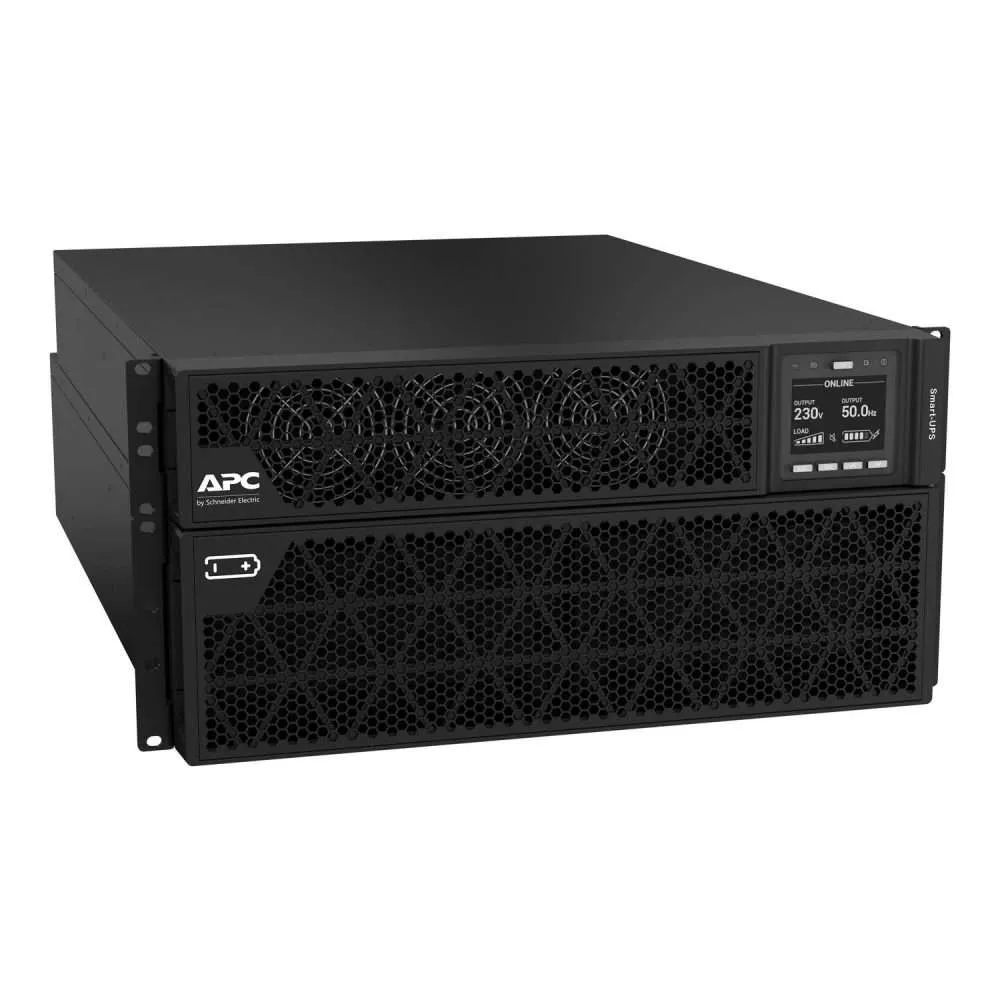

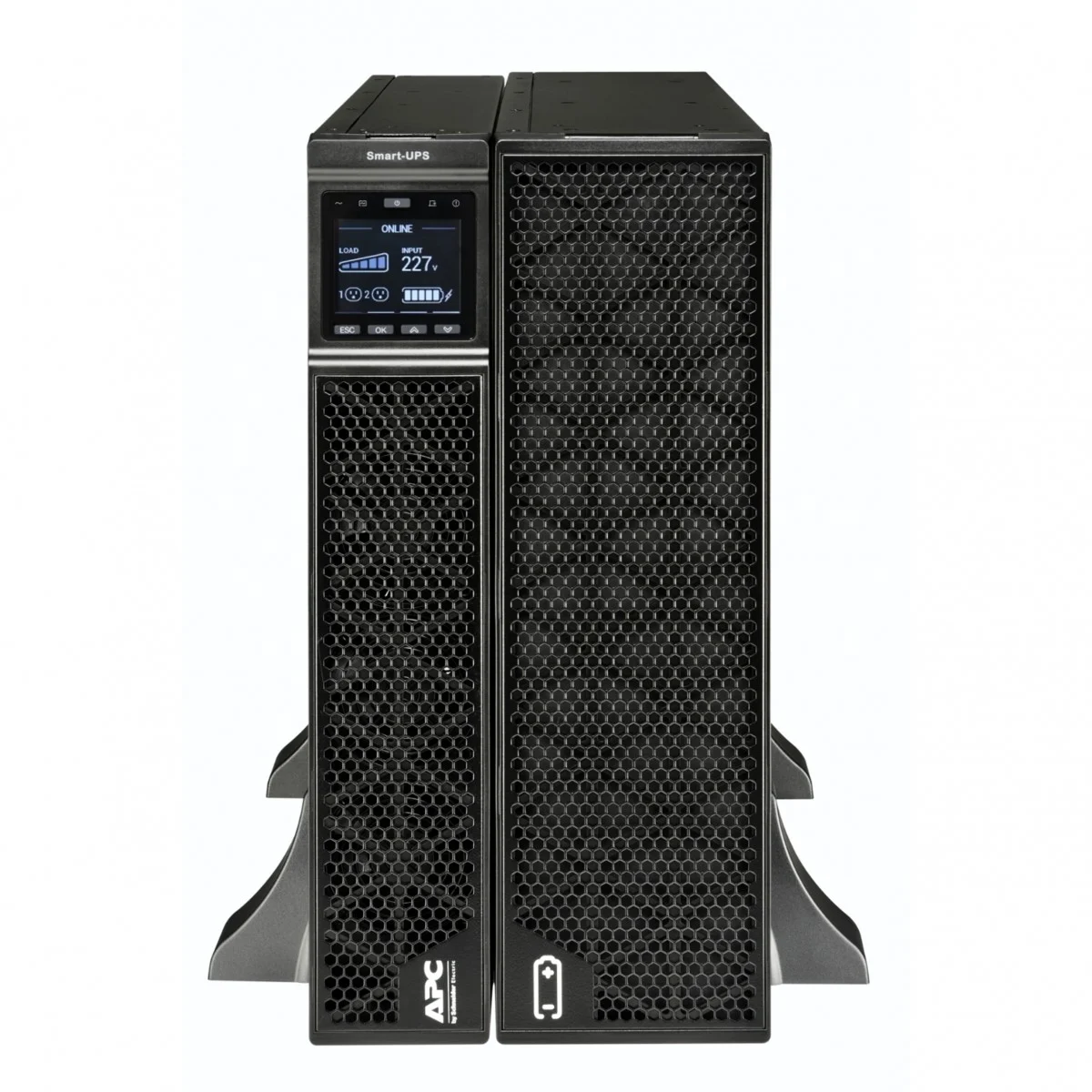

Versatile form factor
Convertible between 5U rack-mount or tower configuration to suit various deployment environments, including data centers and control rooms.

Multi-color LCD display
Offers real-time visibility into UPS status, including input/output voltage, battery health, runtime, and alarms.

Advanced monitoring and connectivity
Features RS-232, USB, and SmartSlot for optional SNMP/web-based management. Compatible with PowerChute software for remote monitoring and graceful shutdown.

Emergency Power Off (EPO)
Allows for immediate power shutdown in case of fire or emergency to protect personnel and equipment.

Internal bypass (manual and automatic)
Maintains power continuity by transferring load to utility supply during overloads or UPS faults without interrupting the output.

Hot-swappable, maintenance-free batteries
Replace batteries without shutting down connected equipment. Uses APCRBC174 modules with 4-hour recharge time.

Product Specifications

• Output capacity: 10,000VA / 10,000W
• Output voltage: Configurable to 220V, 230V, or 240V
• Output waveform: Pure sine wave
• Output frequency: 50/60 Hz ±3 Hz (sync to mains)
• Harmonic distortion: <2%
• Input voltage range: 160V–285V
• Input frequency: 40–70 Hz (auto-sensing)
• Input connection type: Hardwire 3-wire (1P + N + E)
• Bypass: Internal (automatic & manual)
• Battery type: Sealed lead-acid, maintenance-free
• Battery voltage: ±96VDC
• Runtime at full load (10kW): ~3.5 minutes
• Runtime at half load (5kW): ~11 minutes
• Expandable runtime: Yes, up to 4 external battery packs
• Replacement battery: APCRBC174
• Recharge time: 4 hours

Interfaces and Management

• Communication ports: RS-232, USB
• SmartSlot: Supports optional network management cards
• LCD interface: Intuitive multicolor display
• EPO (Emergency Power Off): Yes

Environmental & Physical

• Operating temperature: 0°C to 40°C
• Storage temperature: -15°C to 45°C
• Humidity: 0–95% (non-condensing)
• Operating altitude: Up to 3,000 meters
• Noise level: ~55 dB
• Dimensions (HxWxD): 21.7 cm × 44 cm × 68 cm
• Weight: 101.5 kg

Certifications & Safety

• Standards compliance:
  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018
• Safety approvals: Certified to operate safely with critical infrastructure

Applications

• Data centers: Protect mission-critical server racks
• Medical facilities: Power sensitive diagnostic and monitoring equipment
• Industrial operations: Support automation and production lines
• Telecommunications: Maintain uptime for voice and data services
• Financial institutions: Secure transaction systems and IT infrastructure

Frequently Asked Questions

• Can the UPS run without batteries? Yes, it can start without batteries, useful during replacement or service.
• Maximum external battery packs? Up to 4 (model: SRTG192XLBP4).
• Full-load runtime? Approximately 3.5 minutes, extendable with battery packs.
• Remote management supported? Yes, via USB, RS-232, or SNMP card with PowerChute software.
