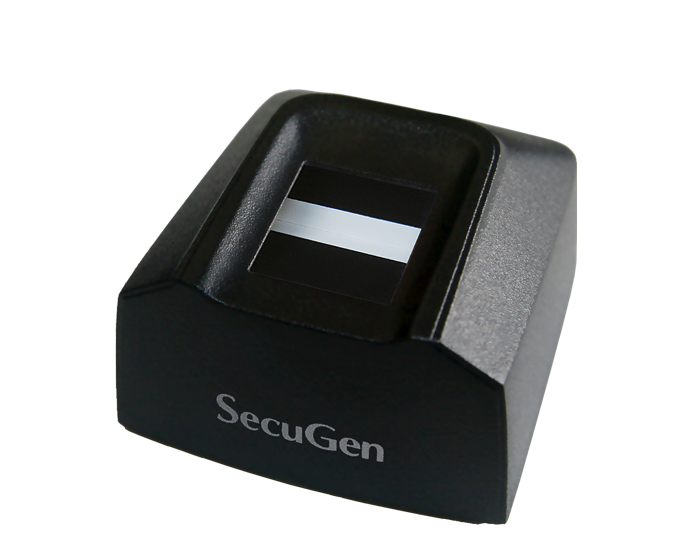

SecuGen Hamster Pro 20 FBI PIV FIPS 201 FAP 20 IP65 Ultra‑Compact USB Fingerprint Reader

SecuGen Hamster Pro 20 (model HU20) is an ultra‑compact, high‑image‑quality USB fingerprint reader that’s FBI Certified (PIV, FIPS 201, Mobile ID FAP 20), IP65 dust‑ and water‑resistant, and engineered with SecuGen’s rugged U20 optical sensor to capture reliable biometric images from even difficult fingers—including dry, wet, scarred, or aged skin—under bright ambient light. Its low‑profile body with integrated finger guide fits desktops, enrollment counters, and mobile kits; Auto‑On automatic finger detection, Smart Capture adaptive imaging, and optional latent print image removal streamline high‑throughput authentication while helping block spoof attempts. Free SecuGen SDKs and driver support for Windows (including Windows Hello/WBF), Linux, Android, and Aadhaar/UIDAI deployments make integration fast for security, e‑government, banking, healthcare, and workforce applications.

Product Features

FBI PIV / FIPS 201 / Mobile ID FAP 20 Certification

Tested and certified by the FBI to meet FIPS 201 (PIV) and Mobile ID FAP 20 image quality requirements, so it’s suitable for regulated government ID, e‑KYC, and high‑assurance access control programs.

IP65 Dust‑ & Water‑Resistant, Rugged Optical Build

Sealed to IP65 for protection against dust and water ingress and built around a toughened glass prism that resists scratches, impact, vibration, and electrostatic shock for dependable field or counter use.

Auto‑On Automatic Finger Detection

Auto‑On senses finger presence and triggers capture instantly (with compatible software), speeding logins and reducing user prompts in shared or high‑volume environments.

Smart Capture for Difficult Fingers & Bright Light

Smart Capture automatically adjusts imaging to acquire high‑contrast prints from dry, moist, wet, scarred, or aged fingers—even in bright ambient light or direct sunlight—improving first‑time scan success.

Latent Print Image Removal & Anti‑Spoof Support

When used with SecuGen software/SDKs, the reader can ignore prints left on the platen (latent print image removal) and apply fake‑finger rejection technologies to help deter spoofing attacks.

Ultra‑Compact, Low‑Profile & Portable Design

A slim, one‑piece housing with integrated finger guide saves desk space, travels easily for mobile enrollment, and makes the sensor accessible to any finger orientation.

Windows Hello & Cross‑Platform SDK Support

Works with Windows Hello / Windows Biometric Framework for quick fingerprint logins; free SecuGen SDKs support Windows, Linux, and Android development for custom authentication, identity, and Aadhaar/UIDAI solutions.

Developer Security Options (Templates, Device Recognition)

SecuGen SDKs enable template generation/matching (MINEX Certified), template encryption using SecuGen proprietary formats, and device recognition for managed multi‑device deployments.

Product Specifications

• Product name / model: SecuGen Hamster Pro 20 (HU20).
• Optical fingerprint sensor: SecuGen U20 rugged optical module.
• FBI / standards compliance: FBI PIV, FIPS 201, Mobile ID FAP 20; INCITS 378; ISO/IEC 19794‑2, 19794‑4; STQC (Aadhaar).
• Image resolution: 500 DPI.
• Image size: 300 x 400 pixels (typical).
• Platen size: 18.2 mm x 22.9 mm glass imaging surface.
• Effective sensing area: ~15.2 mm x 20.3 mm capture zone.
• Gray scale depth: 256 levels (8‑bit).
• Light source / lifetime: LED illumination, ~60,000 hour typical life.
• Capture speed: ~0.2–0.5 seconds with Smart Capture.
• Dimensions (approx): 53.9 x 58.5 x 31.6 mm (D x W x H).
• Weight: ~98 g.
• Cable length: 1500 mm integrated USB cable.
• Operating temperature: -20°C to +65°C.
• Operating humidity: Up to 90% RH, non‑condensing.
• Interface: USB 1.1 Full‑Speed; USB 2.0 Hi‑Speed compatible.
• Power: 5 V DC via USB; max current ~150 mA.
• Ingress protection: IP65 certified dust‑ & water‑resistant (some listings show IP54; use IP65 per latest SecuGen & channel specs).
• Shock resistance: Sensor designed to resist scratches, impact, vibration, and electrostatic shock.
• Included features (software dependent): Auto‑On finger detection; Smart Capture adaptive imaging; latent print image removal; fake finger rejection.
• Supported operating systems: Windows 10 / 8.1 / 8 / 7; Windows Server 2012 / 2008 R2; Linux; Android 3.1+; (works with Windows Hello/WBF).
• Warranty: One‑year
