Honeywell PD45 Industrial Label Printer - Image 2

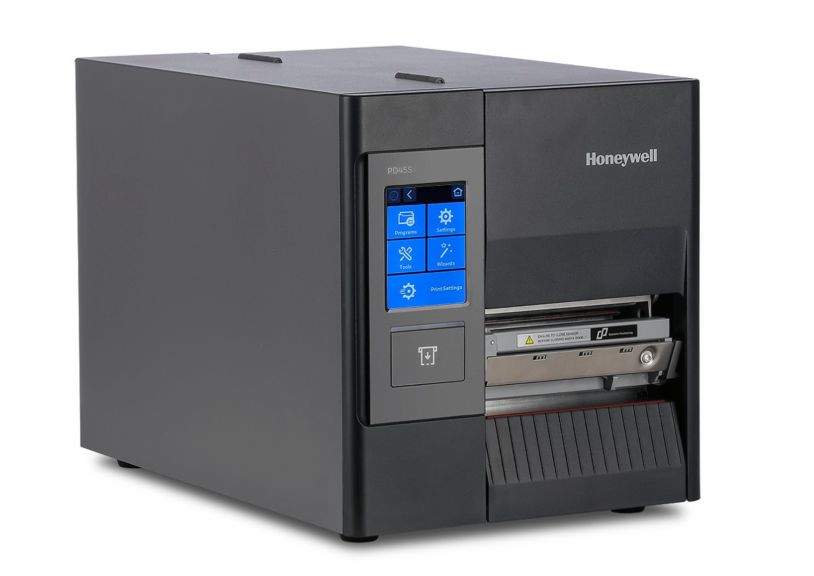

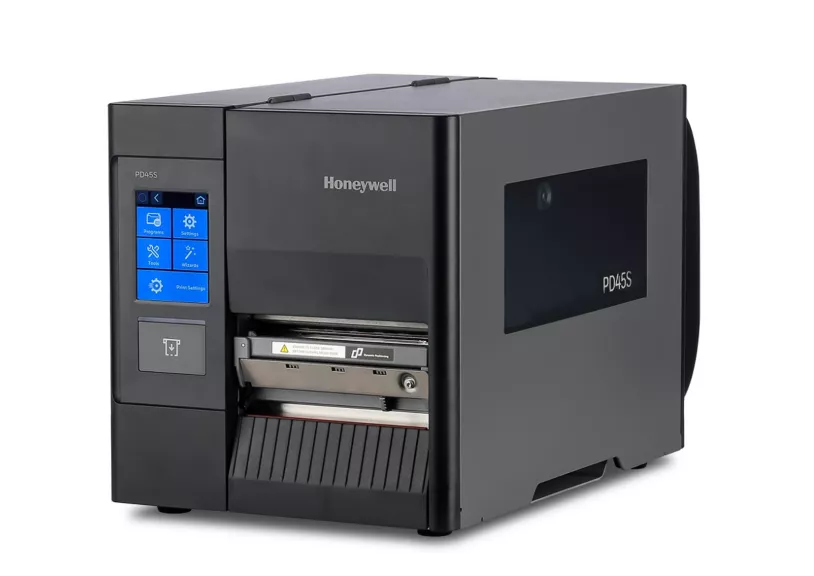

Honeywell PD45 Industrial Label Printer

Name: Honeywell PD45 Industrial Label Printer
Brand: Honeywell
SKU: 15804
Availability: InStock

KSh 103,000.00 (+ VAT(16%)

Honeywell PD45 is a rugged, high-performance industrial barcode label printer offering both direct thermal and thermal-transfer modes at 203 dpi or 300 dpi, delivering print speeds up to 250 mm/s (10 ips) for 203 dpi and 200 mm/s for 300 dpi on the PD45S variant. Built around an ARM Cortex‑A7 processor with 128 MB Flash and 128 MB DDR3 memory (plus USB‑expandable storage), it supports up to 450 m ribbon rolls and 8‑inch media, minimizing media changes and boosting throughput The sturdy all‑metal chassis, front-access printhead, and dual‑sensor positioning (accurate to 0.5 mm on PD45S, 0.75 mm on PD45) ensure precise, durable operation in harsh environments.

With flexible connectivity options—USB device/host, RS‑232, Ethernet (standard on PD45C/S), and optional Wi‑Fi, GPIO, serial, or parallel—and command language support including C#, DPL, IPL, ZSim2, DP, Fingerprint, XML, and PDF, it integrates seamlessly into enterprise systems (SAP/Oracle, BarTender, NiceLabel, Honeywell Operational Intelligence). Users can run on-board workflows and manage printing directly via touchscreen (PD45S) or keypad display (PD45), making it ideal for manufacturing, logistics, healthcare, retail, and government facilities.

Category: Honeywell Brand: Honeywell

Description
Reviews (0)

Honeywell PD45 Industrial Label Printer

Specifications

Print Engine & Performance

Print method: Direct Thermal & Thermal Transfer
Resolutions: 203 dpi (8 dots/mm) or 300 dpi (11.8 dots/mm)
Print speeds:
- 203 dpi: 50–250 mm/s (2–10 ips);
- 300 dpi: 50–200 mm/s (2–8 ips) for PD45S; slightly lower (up to 200 mm/s) for PD45

Processor & Memory

CPU: ARM Cortex-A7 800 MHz
Flash / RAM: 128 MB / 128 MB DDR3; plus USB-expandable storage (FAT16/32)

Media & Ribbon Capacity

Max print width:
- 203 dpi: 108 mm (4.25 in);
- 300 dpi: 105.7 mm (4.16 in)
Roll capability: Up to 203.2 mm (8 in) diameter; core IDs 25.4 – 76 mm depending on label type
Ribbon: Supports 450 m max, wax/mixed/resin; core ID 25.4 mm (1 in)
Label width: 20 – 114 mm; minimum length ≈ 5 mm (tear mode), 38 mm with cutter
Media thickness: 0.076–0.255 mm (PD45S supports up to 0.255 mm)

Connectivity & Interfaces

Standard:
- USB 2.0 device & host,
- RS‑232 serial (115.2 kbps),
- Ethernet 10/100 Mbps (PD4500C/PD45S)
Optional/Upgradeable:
- Wi‑Fi (802.11a/b/g/n/ac), dual serial (RS‑232/422/485), GPIO, parallel port

Command Languages & Print Formats

Languages: C#, DPL, Direct Protocol (DP), Fingerprint, IPL, ZSim2 (ZPL-II), XML-enabled (SAP/Oracle), PDF
Supported Barcodes: All major 1D & 2D symbologies (QR, PDF417, Data Matrix, GS1-128, UPC/EAN, etc.)
Fonts & Graphics: Monotype TrueType / OpenType, WTLE for global language support; graphics formats BMP, GIF, PNG, PCX

Build Quality & Usability

Chassis: Rugged all‑metal frame, fast ribbon and label loading
Sensors: Dual sensors, dual media guides, tear‑bar pressure tuning—maximum accuracy
Display options:
- PD45S: 3.5″ touchscreen or 2.36″ keypad LCD;
- PD45: 2.36″ keypad + LED feed button
Ease of maintenance: Front-accessible printhead and roller for quick cleaning/replacement

Physical & Environmental

Dimensions: 438 × 270 × 249 mm (L×H×W = 17.24″×10.63″×9.80″)
Weight: ~9.25 kg (20.4 lb); PD45S touchscreen version slightly heavier at ~9.34 kg
Operating range: 5–40 °C; Storage: –20–70 °C; Humidity 20–85% non‑condensing
Power: 100–240 V AC, 50/60 Hz

Why It’s Optimized for Industrial Use

High throughput: Up to 250 mm/s ensures fast label output in busy environments
Wide media/ribbon capacity: Long ribbons (450 m) and big rolls reduce downtime
Flexible connectivity: Ethernet, serial, USB, Wi‑Fi, upgradeable for evolving network setups
Robust build and easy maintenance: Metal housing and swappable parts minimize service disruptions
Smart on‑device apps: C# support allows execution of workflows without a PC
Compatibility: Wide command set and SAP/Oracle support ensure seamless integration

Summary Table

Category	PD45 / PD45S
Resolutions	203 / 300 dpi
Speed	50–250 mm/s (2–10 ips)
Media width	20–114 mm
Ribbon length	Up to 450 m
Memory	128 MB Flash + 128 MB RAM + USB
Connectivity	USB, serial, Ethernet; Wi‑Fi optional
Languages	C#, DPL, DP, IPL, ZPL-II, FP, XML, PDF
Display	2.36″ LCD keypad (PD45); 3.5″ touch (PD45S)
Dimensions / Weight	438×270×249 mm / ~9.25 kg
Env. Specs	5–40 °C, 20–85% RH non-condensing

PD45/PD45S is a rugged, high-capacity industrial workhorse, excelling in environments that require fast, reliable label printing, long media/ribbon runs, flexible connectivity, and smart on-printer apps. Choose the touchscreen PD45S if you prefer intuitive local control and advanced accessories (cutter, peeler, rewinder). If you need a more basic rugged setup, the PD45 with keypad delivers robust performance without extras.

Application use cases

Manufacturing & Production

Product identification, asset tracking, work-in-progress labeling on assembly lines—rugged metal frame resists dust/debris.
Dual-sensor positioning ensures accurate label placement (as small as 5 mm) vital in manufacturing precision.

Transportation, Logistics & Warehousing

Shipping, pallet, bin, and slot labeling for high-volume warehouse operations at speeds up to 10 ips (250 mm/s).
Large glass media window and easy side-loading reduce downtime and improve throughput.

Healthcare & Pharmaceuticals

Prints patient wristbands, specimen labels, drug barcodes, and compliance tags—dual thermal modes support diverse medical media.

Retail & Government

Ideal for shelf tags, product labels, event badges, ID printing, and regulatory labelling across retail and public sector use.

Enterprise & IT Environments

On-printer Smart Printing (via C# apps) allows edge workflows without tethering to a PC.
Supports enterprise integrations (SAP, Oracle WMS), compatible with BarTender, NiceLabel, SOTI Connect, CUPS/Linux, InterDriver Windows.
