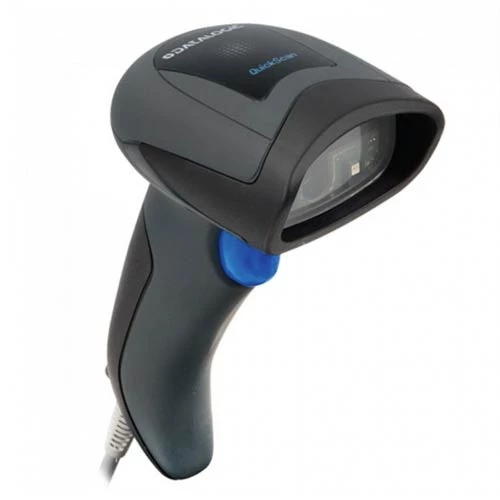

Datalogic QuickScan QD2430-BK 2D Barcode Scanner

Specifications

1. Overview

   • The QuickScan™ QD2430 is a 2D barcode imager designed to meet the needs of retailers and other industries, offering fast and reliable scanning for both 1D and 2D barcodes.
   • Ideal for point-of-sale (POS) applications, mobile device barcode scanning, and future-proofing for upcoming barcode and imaging requirements.

2. Imaging and Scanning Performance

   • Imaging Technology: Area imaging for superior performance on 1D and 2D barcodes.
   • Omnidirectional Reading: Quickly scans in any direction, enhancing user productivity.
   • Advanced Motion Tolerance: Smooth scanning with a motion tolerance of up to 25 inches per second (IPS).
   • Illumination and Aiming: Features soft red illumination and blue LED aiming to reduce operator eye strain.
   • Resolution: Reads barcodes as small as 0.102 mm / 4 mils (linear codes).

3. Barcode Decoding Capabilities

   • 1D Codes: Supports all standard linear barcodes, including GS1 DataBar™.
   • 2D Codes: Reads complex 2D barcodes like QR Code, Data Matrix, Aztec Code, and more.
   • Stacked Codes: Compatible with stacked codes such as PDF417, MicroPDF417, and GS1 DataBar Composites.
   • Postal Codes: Reads various postal codes, including USPS, British Post, and China Post.

4. Durability and Environmental Resistance

   • Drop Resistance: Withstands multiple drops from 1.5 m (5 ft) onto concrete.
   • Sealing Rating: IP42 protection against dust and water.
   • Operating Temperature: 0°C to 50°C (32°F to 122°F).
   • Ambient Light Resistance: Operates in lighting conditions up to 86,000 lux.

5. User Feedback and Visual Indicators

   • Green Spot Technology: Patented Datalogic technology for visual confirmation of a successful read.
   • Reading Indicators: Beeper with adjustable tone and volume, plus good-read LED.

6. Physical and Connectivity Features

   • Dimensions: 16.3 x 9.1 x 4.1 cm (6.4 x 3.6 x 1.6 in).
   • Weight: 145 g (5.11 oz).
   • Interfaces: USB, RS-232, and keyboard wedge options.
   • Available Colors: Black and white options for different environments.

7. Power and Electrical Specifications

   • Operating Current: 140 mA at 5 VDC.
   • Standby Current: 50 mA at 5 VDC.
   • Input Voltage: 4.5 to 14 VDC.

8. Software and Utilities

   • Configuration: Datalogic Aladdin™ configuration software for easy setup.
   • Remote Management: Supports remote host downloads to reduce service costs.
   • JavaPOS and OPOS: Compatible for seamless integration in POS systems.

9. Warranty

   • Standard Warranty: 5-year factory warranty for reliable long-term use.

QuickScan™ QD2430 provides robust performance and versatile features, making it an ideal solution for retail, logistics, and commercial environments.
