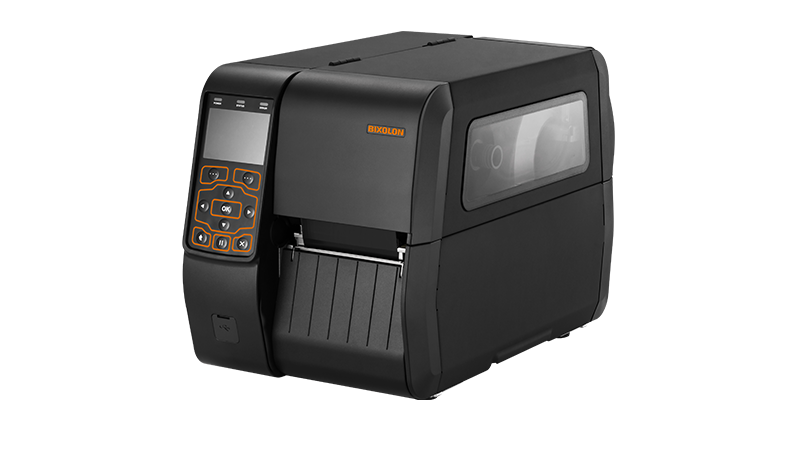

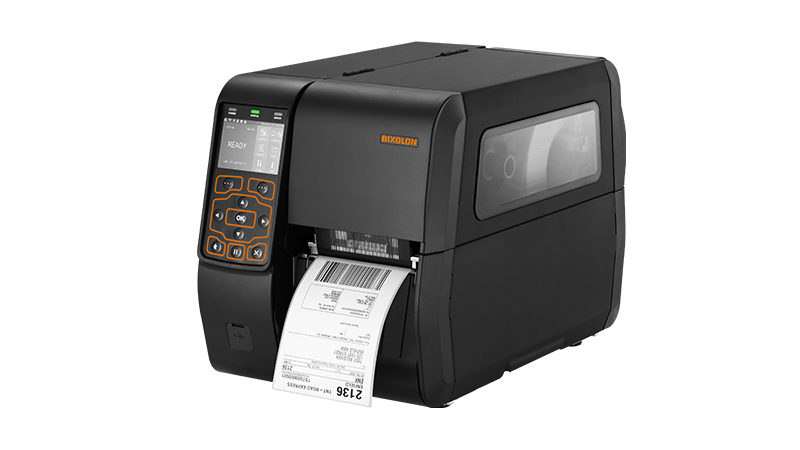

Bixolon XT5-40 4-Inch Thermal Transfer Industrial Label Printer

Bixolon XT5-40 is a high-performance 4-inch thermal transfer industrial label printer engineered for demanding production and logistics environments. Delivering exceptional speed, precision, and connectivity, this printer supports a print speed of up to 14 inches per second with a 203 dpi resolution for crisp, professional-quality labels. With advanced memory, robust metal construction, and a large 3.5-inch color touchscreen, the XT5-40 ensures efficient operation, easy navigation, and long-lasting reliability. Ideal for manufacturing, warehousing, transportation, and retail applications, it offers superior print performance and flexibility for industrial-scale labeling.

Product Features

Exceptional Print Speed and Quality

Prints at speeds up to 14 inches per second (203mm/sec) while maintaining high-resolution 203 dpi output for sharp text, barcodes, and images.

Dual Printing Technology

Supports both thermal transfer and direct thermal printing methods, providing versatility for a wide range of label materials and applications.

Wide Printing Capability

Accommodates print widths up to 104mm and print lengths up to 4,000mm, suitable for large format and long-run label printing tasks.

Advanced Connectivity Options

Includes USB, Serial, Gigabit Ethernet (1 Gbps), and dual USB-Host interfaces for flexible, high-speed data transfer and peripheral connections.

Powerful Memory and Processing

Equipped with 512MB SDRAM and 512MB Flash memory for smooth handling of complex graphics, fonts, and high-volume print jobs.

Intuitive Color Display

Features a 3.5-inch full-color TFT LCD touchscreen that provides clear menu navigation, printer status updates, and intuitive control for operators.

Broad Software Compatibility

Supports multiple printer emulations and command languages including SLCS™, BPL-Z™, BPL-E™, and BPL-D™, ensuring seamless integration with existing label systems and software.

Rugged Industrial Design

Constructed with a strong metal frame and housing, built to withstand demanding industrial conditions while maintaining consistent performance.

Easy Media and Ribbon Handling

Designed for quick media and ribbon loading, reducing downtime and ensuring continuous operation in high-volume printing environments.

Scalable and Upgradeable

Supports optional features such as wireless connectivity, peelers, cutters, and rewinder modules to adapt to diverse business needs.

Product Specifications

• Model: Bixolon XT5-40
• Print Method: Thermal transfer / Direct thermal
• Print Speed: Up to 14 ips (203mm/sec)
• Resolution: 203 dpi
• Print Width: Up to 104mm
• Print Length: Up to 4,000mm
• Interfaces: USB, Serial, Ethernet (1 Gbps), 2 × USB-Host
• Memory: 512MB SDRAM / 512MB Flash
• Display: 3.5-inch full-color TFT LCD touchscreen
• Media Roll Diameter: Up to 203mm
• Ribbon Capacity: Up to 450m
• Sensors: Adjustable gap, black mark, ribbon end, and reflective sensors
• Dimensions: Approx. 291mm (W) x 460mm (D) x 261mm (H)
• Weight: Approx. 15 kg
• Operating Temperature: 5°C to 40°C
• Power Supply: Internal universal power supply
• Printer Emulation: SLCS™, BPL-Z™, BPL-E™, BPL-D™
• Software Compatibility: Label Artist™, BarTender®, NiceLabel®, and other major label design software
• Applications: Suitable for industrial labeling, logistics, manufacturing, warehousing, and product tracking
