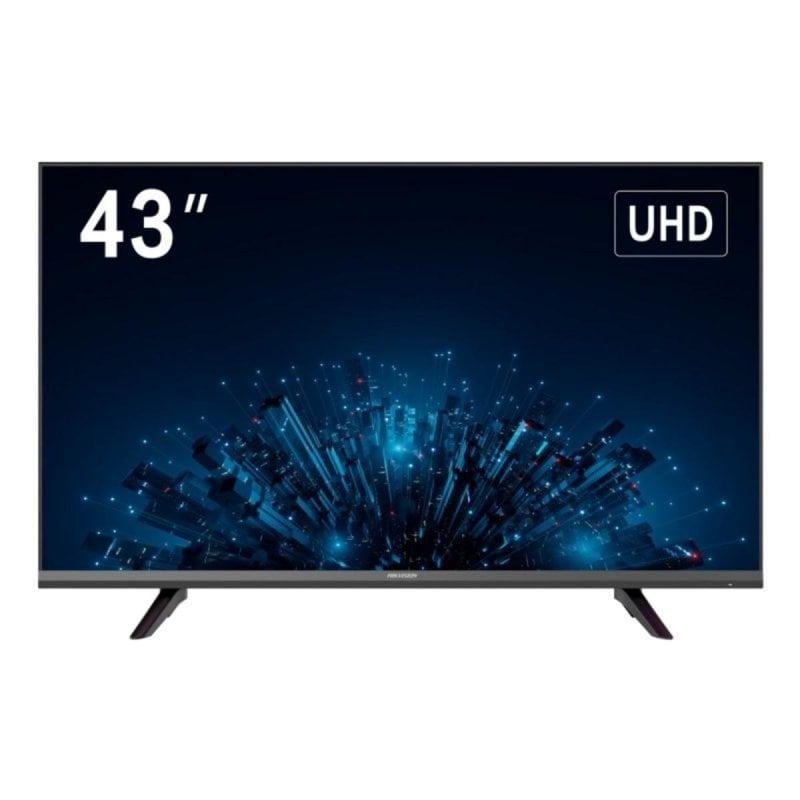

Hikvision DS-D5043U3-1V0S 43-inch UHD 60Hz VA Monitor

Hikvision DS-D5043U3-1V0S 43-Inch UHD 4K 60Hz VA Monitor is a professional display engineered for surveillance control rooms, security operations, digital signage, and commercial applications. Featuring a 43-inch VA panel with Ultra HD 3840 × 2160 resolution at 60 Hz, this monitor delivers exceptional image clarity, deep contrast, and wide 178° viewing angles. Its ultra-slim three-sided bezel design, low blue light technology, built-in stereo speakers, and support for continuous 24/7 operation make it an ideal solution for demanding monitoring environments where image quality and reliability are essential.

Product Features

Ultra HD 4K Resolution

Experience outstanding image quality with a native 3840 × 2160 Ultra HD resolution, providing four times the detail of Full HD for sharper surveillance footage, presentations, and multimedia content.

High-Quality VA Display Panel

The advanced VA panel delivers a high 4000:1 contrast ratio, producing deeper blacks, richer colors, and enhanced image depth for improved viewing performance.

Smooth 60 Hz Refresh Rate

A 60 Hz refresh rate ensures fluid video playback and smooth motion, making the monitor suitable for real-time surveillance monitoring and professional business applications.

Wide Viewing Angles

With 178° horizontal and vertical viewing angles, the display maintains excellent color consistency and image clarity from virtually any viewing position.

Eye Comfort Technology

Low blue light technology helps reduce eye strain during extended viewing sessions, making the monitor ideal for operators working around the clock.

Built-In Stereo Speakers

Integrated 10W × 2 speakers provide clear audio output without requiring external speakers, simplifying installation in offices and surveillance control rooms.

Multiple Connectivity Options

The monitor supports HDMI, VGA, DisplayPort, USB 2.0, audio, and RS-232 interfaces, enabling easy integration with DVRs, NVRs, computers, media players, and other professional equipment.

Designed for Continuous 24/7 Operation

Built for professional environments, the DS-D5043U3-1V0S is designed to operate continuously, making it suitable for security monitoring, command centers, transportation, and industrial applications.

Product Specifications

• Model: DS-D5043U3-1V0S
• Screen Size: 43 inches
• Display Panel: VA
• Display Technology: D-LED Backlight
• Resolution: 3840 × 2160 (Ultra HD 4K)
• Refresh Rate: 60 Hz
• Brightness: 300 cd/m²
• Contrast Ratio: 4000:1
• Response Time: 6.5 ms (Typical)
• Viewing Angle: 178° Horizontal / 178° Vertical
• Color Depth: 8-bit + FRC
• Active Display Area: 941.184 × 529.416 mm
• Pixel Pitch: 0.2451 × 0.2451 mm
• Video Inputs: HDMI, DisplayPort, VGA
• USB Ports: 1 × USB 2.0
• Audio Input: Line In
• Audio Output: Speaker Out
• Built-In Speakers: 2 × 10 W
• Control Interface: RS-232 In, RS-232 Out
• VESA Mount Compatibility: 200 × 200 mm
• Power Supply: AC 100–240 V, 50/60 Hz
• Maximum Power Consumption: ≤80 W
• Standby Power Consumption: ≤0.5 W
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10%–90% RH (Non-condensing)
• Storage Temperature: -20°C to 60°C
• Storage Humidity: 5%–90% RH (Non-condensing)
• Continuous Operation: 24/7
• Casing Material: Plastic
• Applications: CCTV surveillance, security control rooms, command centers, digital signage, offices, retail displays, and commercial monitoring systems.
