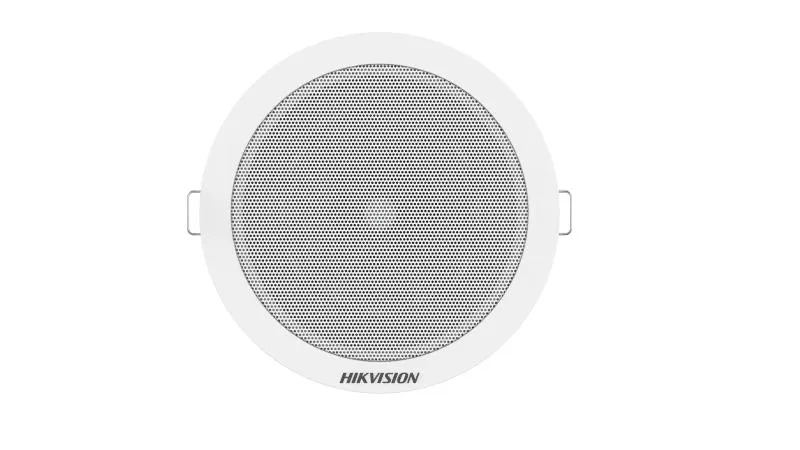

Hikvision DS-QAE0206G1-V Analog Ceiling Speaker 6W

Hikvision DS-QAE0206G1-V 6W Analog Ceiling Speaker is a professional-grade audio solution designed for public address (PA) systems and background music in commercial and institutional environments. Engineered for clear voice announcements and high-quality music playback, this ceiling-mounted speaker features a durable composite paper fiber cone, robust ABS housing, and a secure steel spring clamp installation system. Compatible with 100 V line audio systems, it is an excellent choice for offices, retail stores, schools, hotels, hospitals, restaurants, and conference facilities requiring reliable and discreet audio coverage.

Product Features

Clear and Balanced Audio Performance

The 6 W speaker delivers crisp speech and balanced background music, making it suitable for paging systems and ambient audio in commercial indoor environments.

Wide Frequency Response

With a frequency response of 90 Hz to 20 kHz, the speaker reproduces both voice and music with excellent clarity, ensuring intelligible announcements and pleasant background audio.

Composite Paper Fiber Speaker Cone

The high-quality composite paper fiber cone produces bright, natural sound while minimizing distortion for consistent audio performance.

Quick and Secure Ceiling Installation

A heavy-duty steel spring clamp mechanism enables fast, secure, and hassle-free ceiling installation while ensuring the speaker remains firmly in place.

Compatible with 100 V Public Address Systems

Designed for 100 V constant-voltage audio systems, the DS-QAE0206G1-V integrates seamlessly with commercial PA amplifiers and multi-speaker installations.

Durable Construction

Constructed with a high-strength ABS enclosure and iron mesh grille, the speaker offers long-lasting durability while maintaining an attractive appearance suitable for modern interiors.

Discreet Ceiling-Mounted Design

Its low-profile white finish blends seamlessly into suspended ceilings, making it ideal for installations where aesthetics are important.

Ideal for Commercial Audio Applications

Perfect for offices, shopping centres, supermarkets, hotels, restaurants, educational institutions, healthcare facilities, and other public spaces requiring dependable background music and paging.

Product Specifications

• Model: Hikvision DS-QAE0206G1-V
• Speaker type: Analog ceiling speaker
• Rated power: 6 W
• Speaker unit: 5.25-inch driver
• Impedance: 8 Ω
• Rated input voltage: 100 V line
• Sensitivity: 91 dB ± 3 dB
• Maximum acoustic pressure: 98 dB
• Frequency response: 90 Hz to 20 kHz
• Coverage angle: Approximately 95° conical coverage
• Housing material: ABS
• Grille material: Iron mesh
• Mounting type: Ceiling mount
• Installation method: Steel spring clamp
• Mounting hole diameter: 148 mm
• Dimensions: Ø170 × 64 mm
• Package dimensions: 173.5 × 173.5 × 67 mm
• Net weight: Approximately 468.5 g
• Package weight: Approximately 534 g
• Operating temperature: -20°C to 50°C
• Operating humidity: Up to 95% RH (non-condensing)
• Colour: White
• Compatible systems: 100 V public address and background music systems
• Recommended applications: Offices, schools, hospitals, hotels, restaurants, retail stores, conference rooms, supermarkets, and other indoor commercial environments.
