How to Install a Mobile Signal Booster for Safaricom, Airtel & Telkom Networks

Installing a mobile phone signal booster is one of the most effective ways to eliminate weak mobile signal, dropped calls, and slow internet speeds in homes and offices across Kenya. These systems amplify weak outdoor cellular signals and redistribute them indoors to improve connectivity.

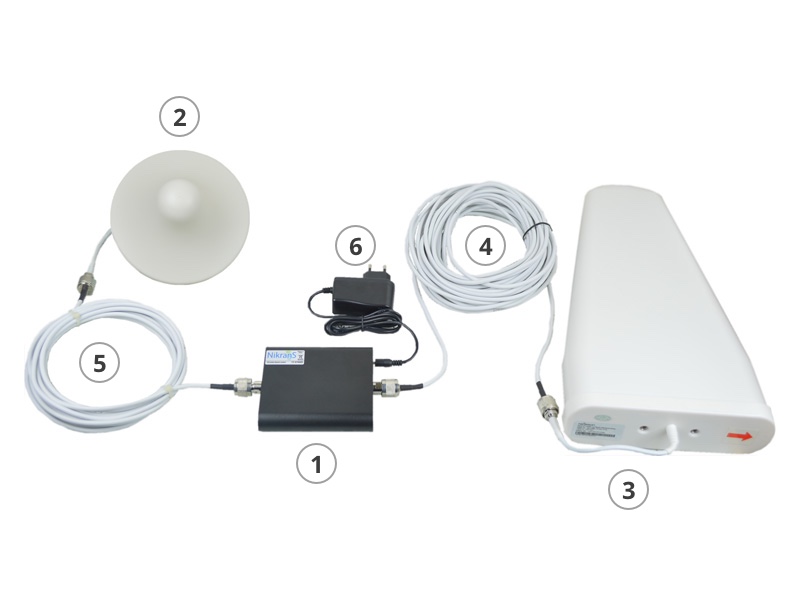

A typical GSM mobile signal booster kit includes:

• Outdoor antenna (donor antenna)
• Signal amplifier / repeater unit
• Indoor antenna
• Coaxial cables and power adapter

When installed correctly, the system can improve signal strength from 1–2 bars to 4–5 bars, providing stronger calls and faster mobile data indoors.

This installation guide explains how to properly install a mobile signal booster in Kenya for homes, offices, warehouses, and commercial buildings.

Step 1: Find the Best Outdoor Signal Location

The most important part of the installation process is locating the strongest available outdoor signal.

How to find the best location

1. Use your smartphone to check signal strength around the building.
2. Move to higher areas such as:
   • Roof tops
   • Balconies
   • Exterior walls
3. Identify the location where you receive the highest signal bars.

The outdoor antenna should be installed as high as possible and facing the nearest mobile tower for the best reception.

Step 2: Install the Outdoor Antenna

Once you identify the best signal location, mount the external antenna securely.

Installation tips

• Install the antenna on the roof, pole, or high exterior wall.
• Ensure the antenna points toward the nearest cell tower.
• Keep the antenna clear of obstacles such as trees, metal structures, or power lines.

Directional antennas like Yagi antennas perform best when aligned directly toward the network tower.

Step 3: Connect the Outdoor Antenna to the Booster

After installing the outdoor antenna, connect it to the signal amplifier using the provided coaxial cable.

Connection process

• Run the coaxial cable from the antenna into the building.
• Connect the cable to the BTS or OUTDOOR port on the signal booster.
• Tighten connectors securely to prevent signal loss.

The typical distance between the outdoor antenna and the amplifier is 10–20 meters depending on the installation.

If needed, you may drill a small wall opening or use a window cable adapter to bring the cable indoors.

Step 4: Install the Indoor Antenna

Next, connect the indoor antenna to the signal booster.

Indoor antenna placement guidelines

• Mount the antenna on a ceiling or interior wall
• Place it 2 meters above the floor for better coverage
• Keep a distance of at least 5–10 meters between the indoor and outdoor antennas

Maintaining proper separation prevents signal interference or oscillation between antennas.

Indoor antennas distribute the amplified signal throughout the building.

Step 5: Power On the Signal Booster

Once all components are connected:

1. Check that all cables are tightly connected.
2. Plug the amplifier into the power supply.
3. Turn on the booster.

The system should immediately begin amplifying the mobile signal inside the building.

If signal improvement is minimal, adjust the direction of the outdoor antenna until the best signal strength is achieved.

Step 6: Test the Signal Strength

After installation, test the signal performance.

How to test

• Walk around the building with your phone.
• Check signal bars in different rooms.
• Run a mobile data speed test.

A properly installed booster should provide:

• Stronger signal bars
• Clearer voice calls
• Faster mobile internet

If necessary, reposition antennas slightly to achieve optimal performance.

Installation Tips for Best Signal Performance

To ensure maximum signal improvement, follow these professional installation tips:

• Install the outdoor antenna as high as possible
• Keep indoor and outdoor antennas separated by walls or floors
• Avoid sharp bends or loops in coaxial cables
• Protect outdoor cable connectors with waterproof tape
• Ensure antennas are not blocked by metal or concrete structures

These best practices help maximize signal amplification and coverage.

Where Mobile Signal Boosters Are Commonly Installed

Mobile signal boosters are widely used across Kenya in locations with poor network coverage.

Common installations include

• Homes and apartments with weak network reception
• Offices experiencing dropped calls
• Hotels and commercial buildings
• Warehouses and factories
• Underground parking and basements
• Remote rural areas

With proper installation, signal boosters can provide coverage areas ranging from 300 SQM to over 5000 SQM depending on the system capacity.

Weak mobile signal can affect communication, productivity, and internet connectivity. Installing a mobile phone signal booster is a simple and effective way to improve signal strength for Safaricom, Airtel, and Telkom networks in Kenya.

By following the correct installation process placing the outdoor antenna correctly, connecting the booster properly, and ensuring proper antenna separation you can achieve reliable mobile coverage throughout your home or office.
